Mini Vacuum Pump for LCD Separation and OCA Lamination Machines

Mini Vacuum Pump, FY-1H-N Vacuum Suction Air Pump for LCD Separation and OCA Lamination Machine - 3 CFM Vacuum Pump (230V) for Refrigerant and Air Conditioning

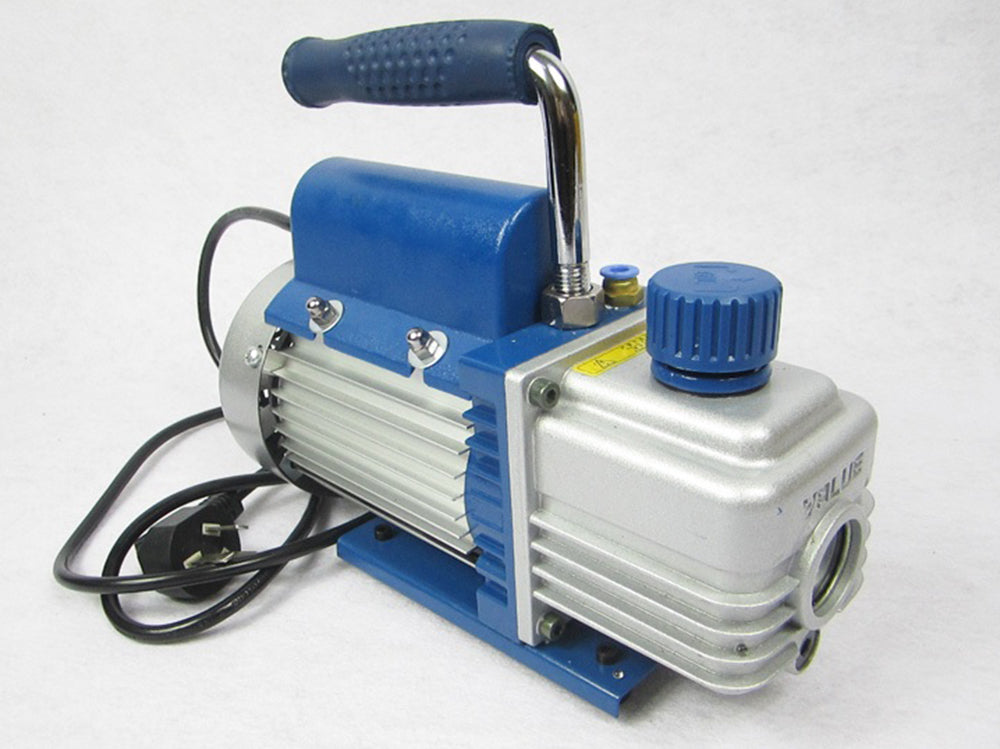

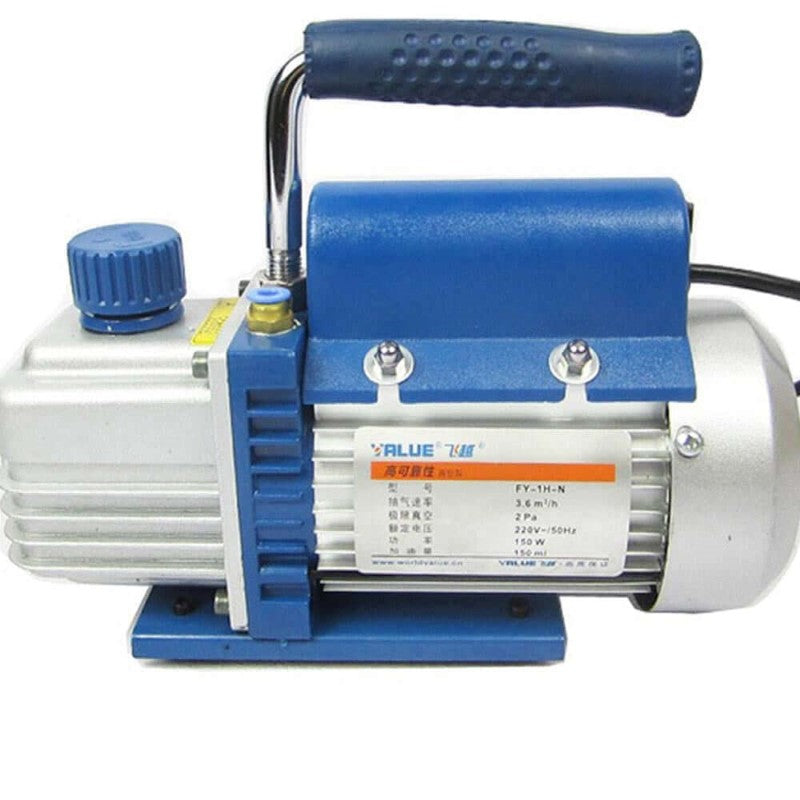

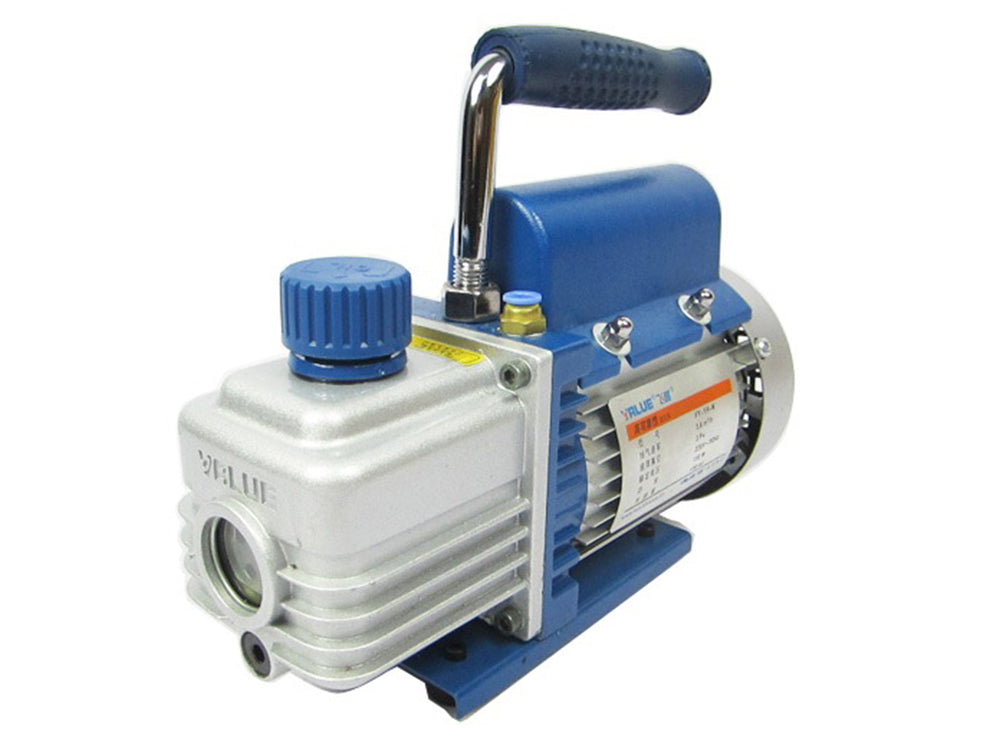

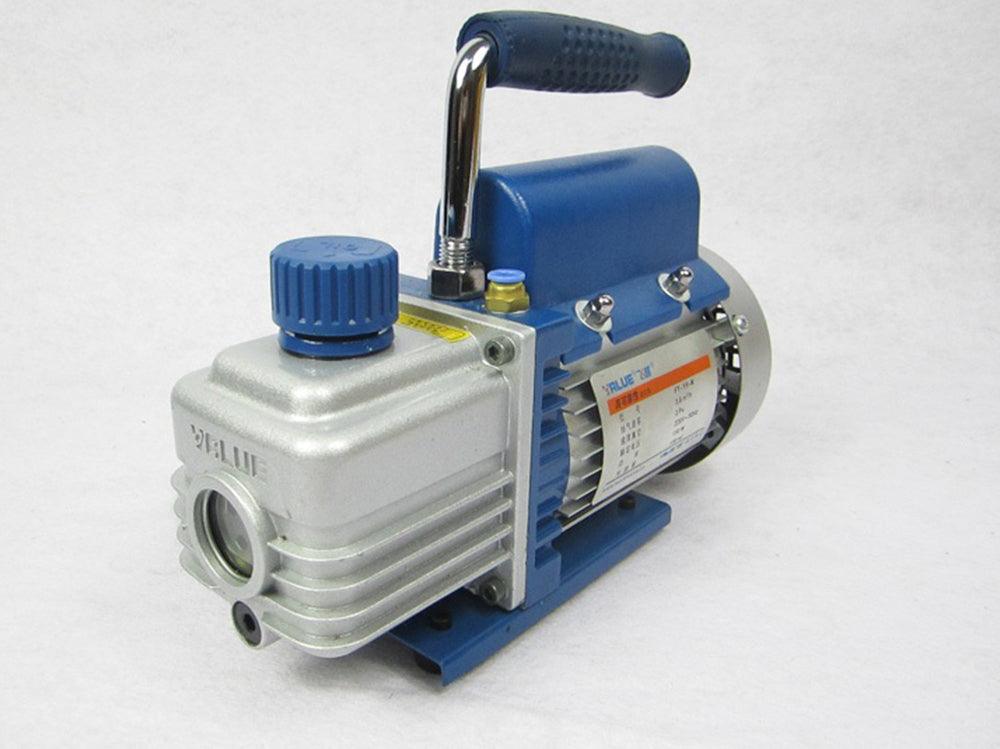

The FY-1H-N Mini Vacuum Pump is an efficient and durable solution for a variety of applications, including LCD separation machines, OCA lamination machines, and refrigerant and air conditioning systems. Its high efficiency, advanced features, and compact design make it an ideal choice for professionals who need a reliable vacuum pump.

Key Features:

1. High Efficiency:
   The pump is designed with a high ultimate vacuum and an excellent pumping rate, making it highly efficient. It features a single-stage rotary vane design that ensures optimal performance.

2. Durable Construction:
   Built with an aluminum die-casting structure, the vacuum pump is both lightweight and durable, making it long-lasting for a variety of applications.

3. Advanced Oil Inlet:
   Equipped with a compulsory oil inlet structure, this pump ensures better performance by maintaining optimal oil flow during operation.

4. Anti-Reflux Design:
   Prevents the backflow of oil, ensuring a clean and efficient operation and keeping the internal components in optimal condition.

5. Gas Ballast Valve:
   This feature helps reduce condensation of vapor inside the pump, extending its lifespan and improving overall performance.

6. Oil Mist Filter:
   The oil mist filter moderates the oil mist, reducing pollution and maintaining a cleaner work environment.

7. Safety Features:

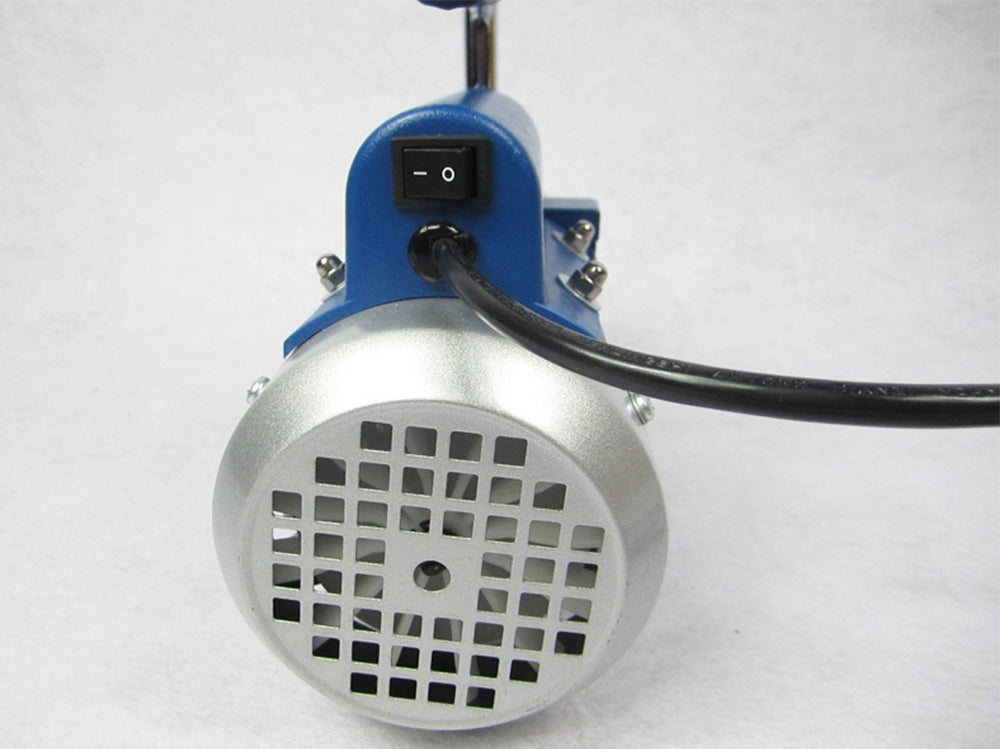

   A built-in motor protector ensures safe operation, preventing motor damage and overheating.

Workplan:

1. Verify that the power supply matches the required voltage and frequency listed on the nameplate.
2. Ensure that the switch is in the closed state before powering on the pump.
3. Use the appropriate pump oil and avoid refilling too quickly to prevent oil overflow.

Product Specifications:

• Material: Aluminum alloy
• Rated Voltage: 230V / 60Hz
• Pumping Rate: 3.6 m³/h
• Ultimate Pressure: 2 Pa
• Motor Power: 150W
• Oil Capacity: 150 mL
• Dimensions: 255mm x 105mm x 202mm
• Inlet Connection Thread: 7/16″-20 UNF
• Weight: 4 kg

Scope of Application:

This vacuum pump is ideal for a wide range of uses, including:

• Refrigeration maintenance
• Printing machinery
• Vacuum packaging
• Gas analysis
• Thermoplastic molding
• Fore pump in high vacuum equipment
• Fixed frequency air conditioners

Package Includes:

• 1 x Air Conditioning Vacuum Pump

With its 3 CFM pumping rate, lightweight design, and high efficiency, the FY-1H-N Mini Vacuum Pump is the perfect tool for professionals in need of a compact and reliable vacuum pump for their equipment.
