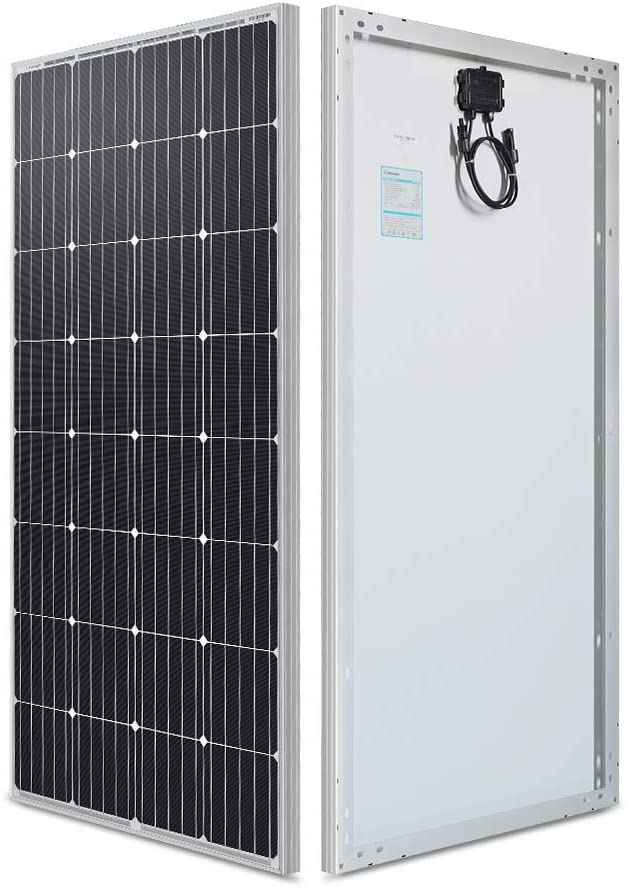

Solar Panel 150W Mono-crystalline Solar Panel

Solar Panel 150W

Discover the efficiency and reliability of the 150W Mono-crystalline Solar Panel, featuring high-efficiency A-grade Trinasolar® cells.

Key Features:

• Manufactured with high-efficiency A-grade Mono-crystalline Trinasolar® cells.

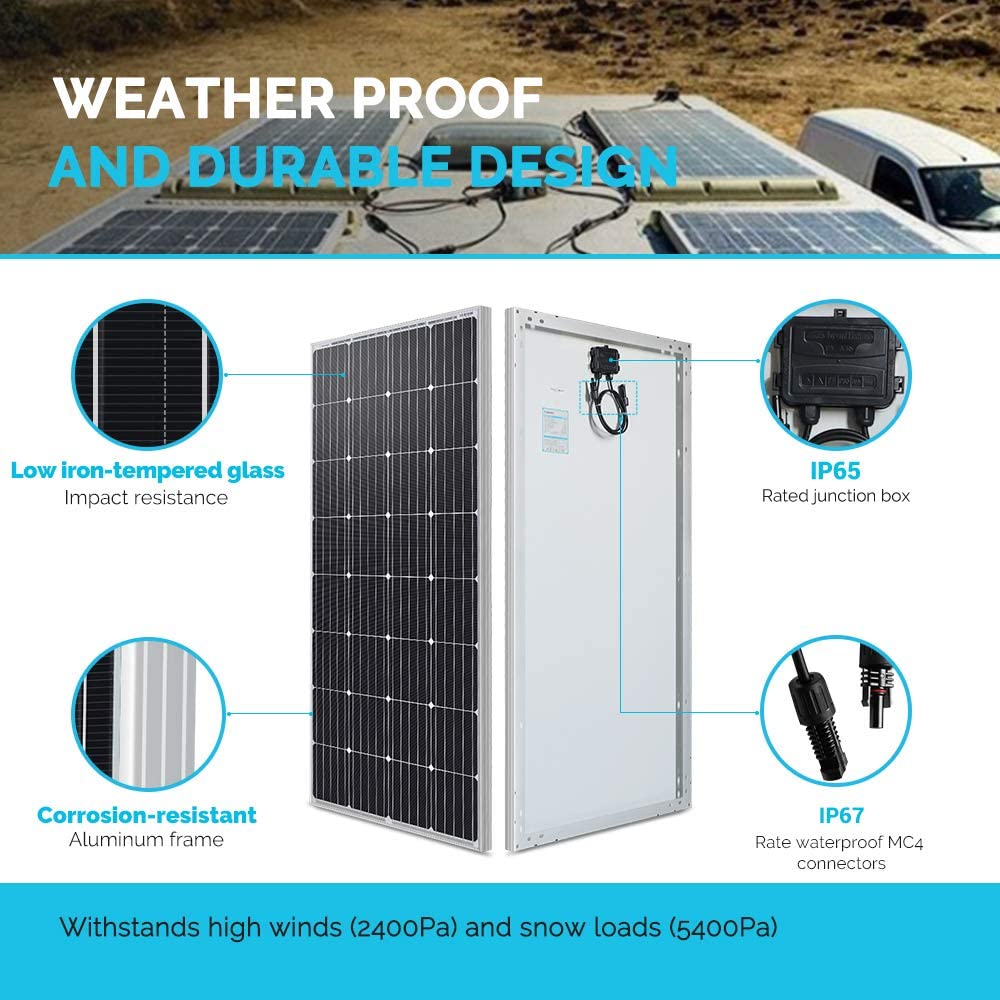

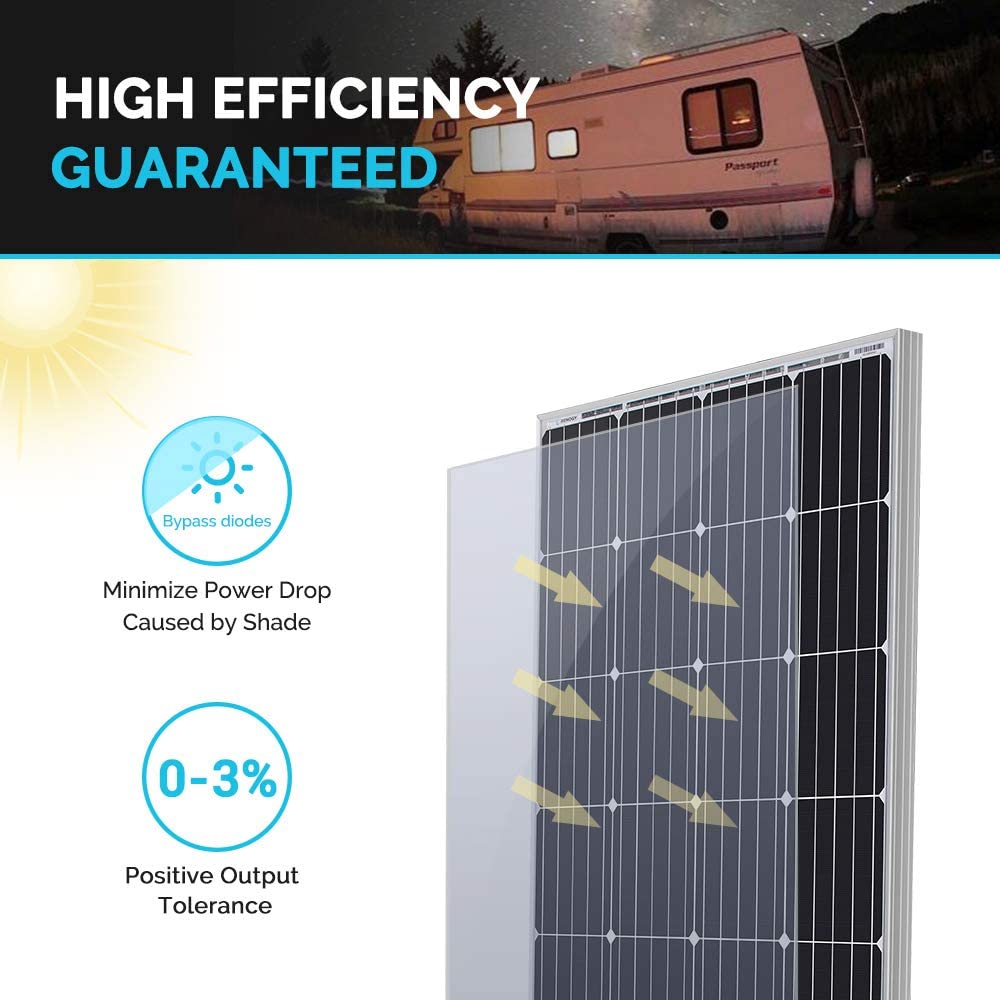

• Weather-tight junction box with IP65 rating and built-in bypass diode for enhanced protection against partial shading.
• Supplied with 900mm of cable for each positive/negative with standard MC4 connectors.

Specifications:

• Waterproof: IP65

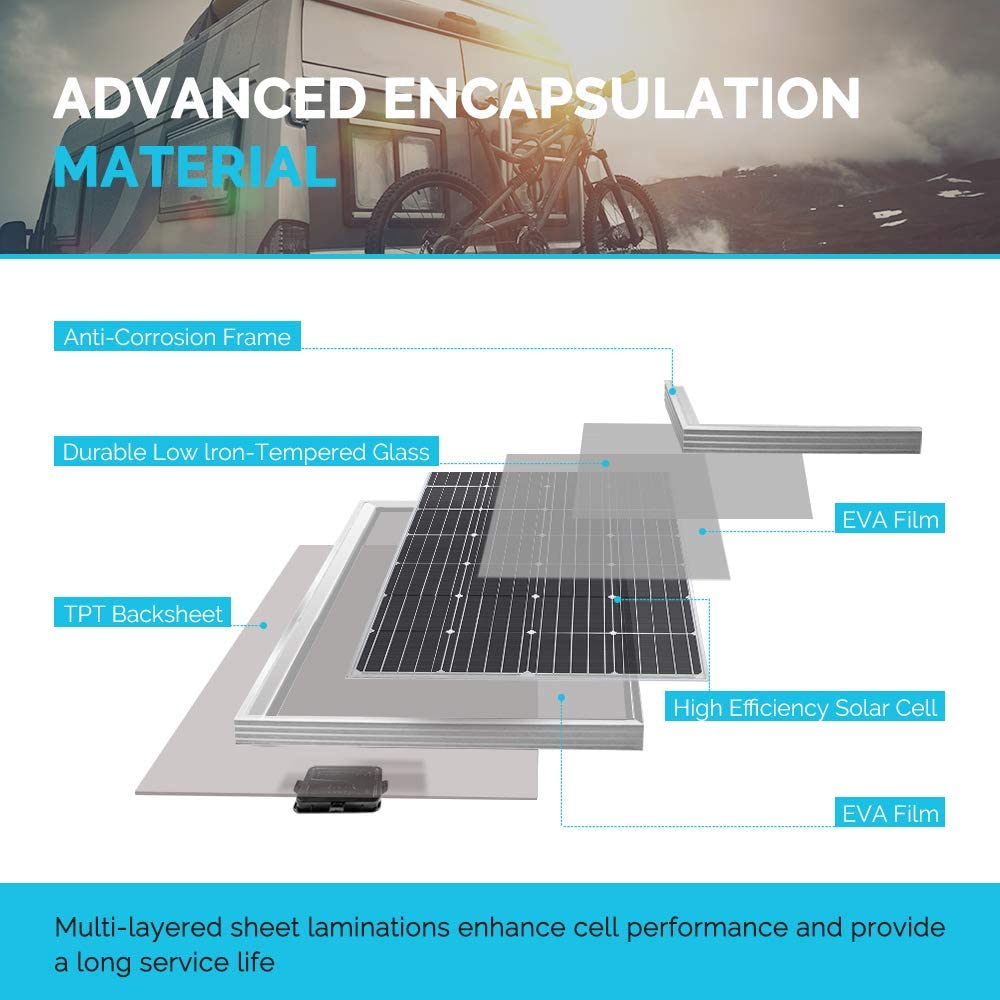

• Glass: 3.2mm tempered glass
• Material: Mono-crystalline
• Voltage: 12V to 18V
• Power: 150W
• Open Circuit Voltage: 22.65V
• Short Circuit Current (Isc): 9.06A
• Rated Current (Imp): 8.36A
• Cells: 36 Cells
• Cell Size: 156 x 156mm
• Frame: Heavy-duty aluminum
• Power Tolerance: ±3%
• Cell Efficiency: 20.50%
• Module Efficiency STC: 18.47%
• Operating Temperature Range: -40°C to +85°C
• Cell Type: Mono-crystalline Trinasolar®
• Maximum System Voltage: 1000V
• Dimensions: 1480 x 680 x 35mm
• Weight: 12 kg
• Temperature Coefficient of Pmax: -0.435%/°C
• Temperature Coefficient of Voc: -0.35%/°C
• Temperature Coefficient of Isc: 0.043%/°C
• Normal Operating Cell Temperature: 47°C ± 2°C
• Wind Load: 2400 Pascal
• Snow Load: 5400 Pascal
• Application Class: Class A
• Fire Rating: Class C

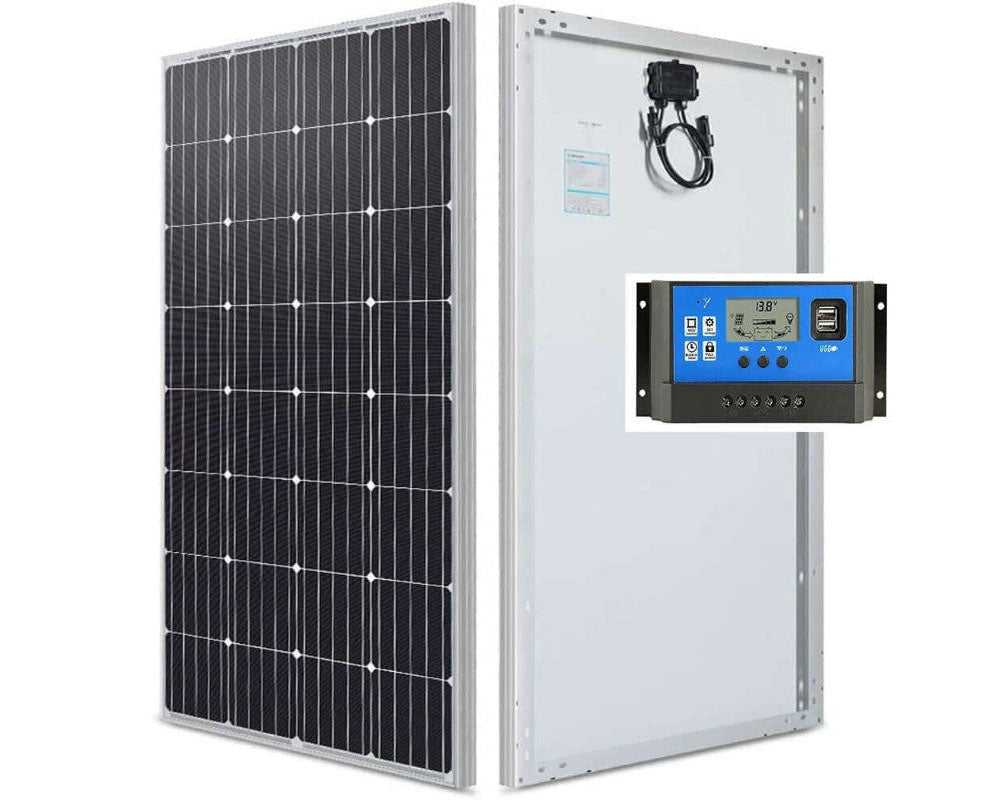

Packaging:

• 1 x Solar Panel
• 1 x 30A Solar Controller

Explore our range of solar panels, including 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W options, available in our store.
