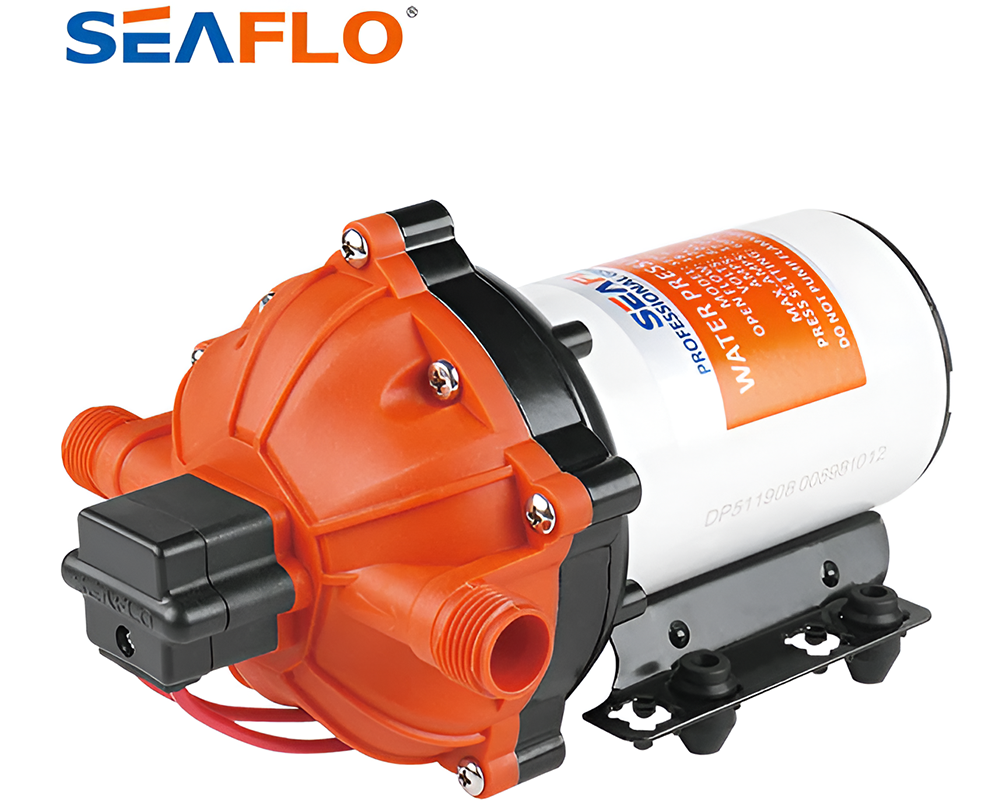

SEAFLO Water Pump – 12V SEAFLO Water Pump with 60PSI Demand Flow

SEAFLO Water Pump SFDP1-050-060-51 – 60PSI Automatic Diaphragm Pump, 12V

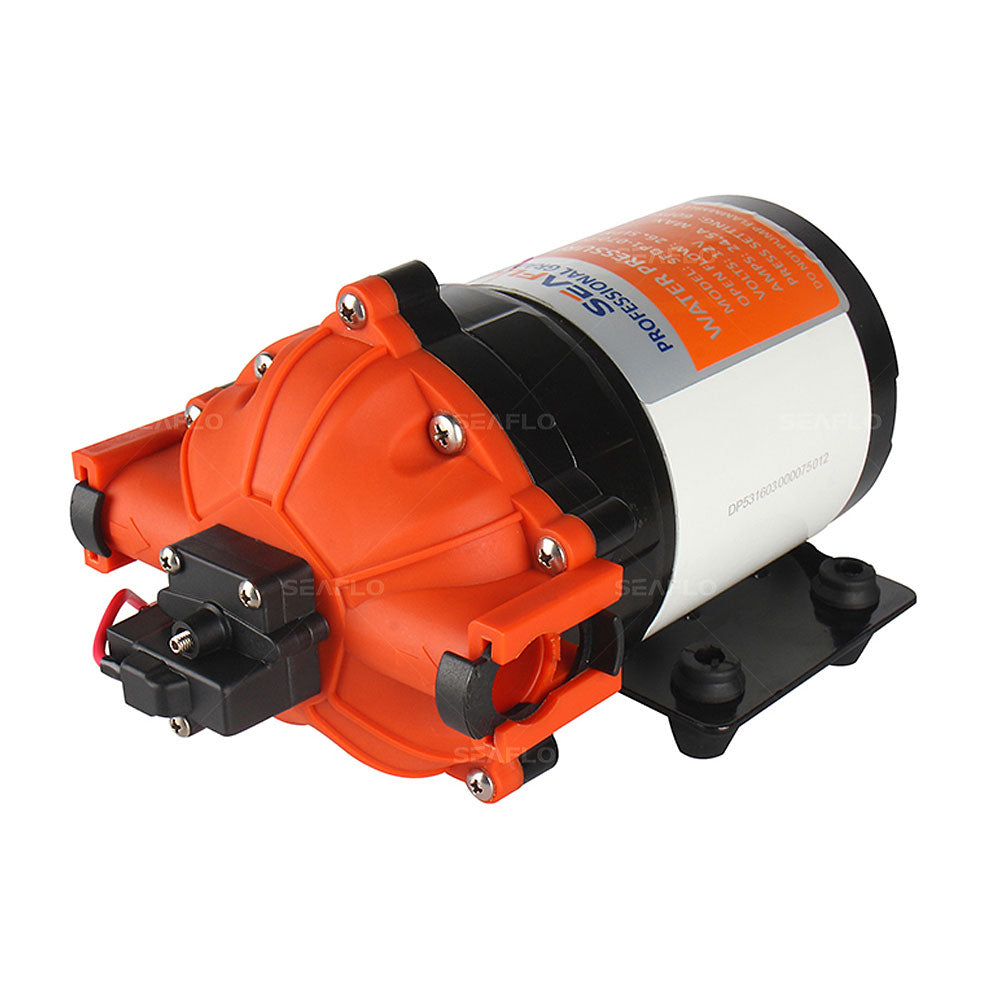

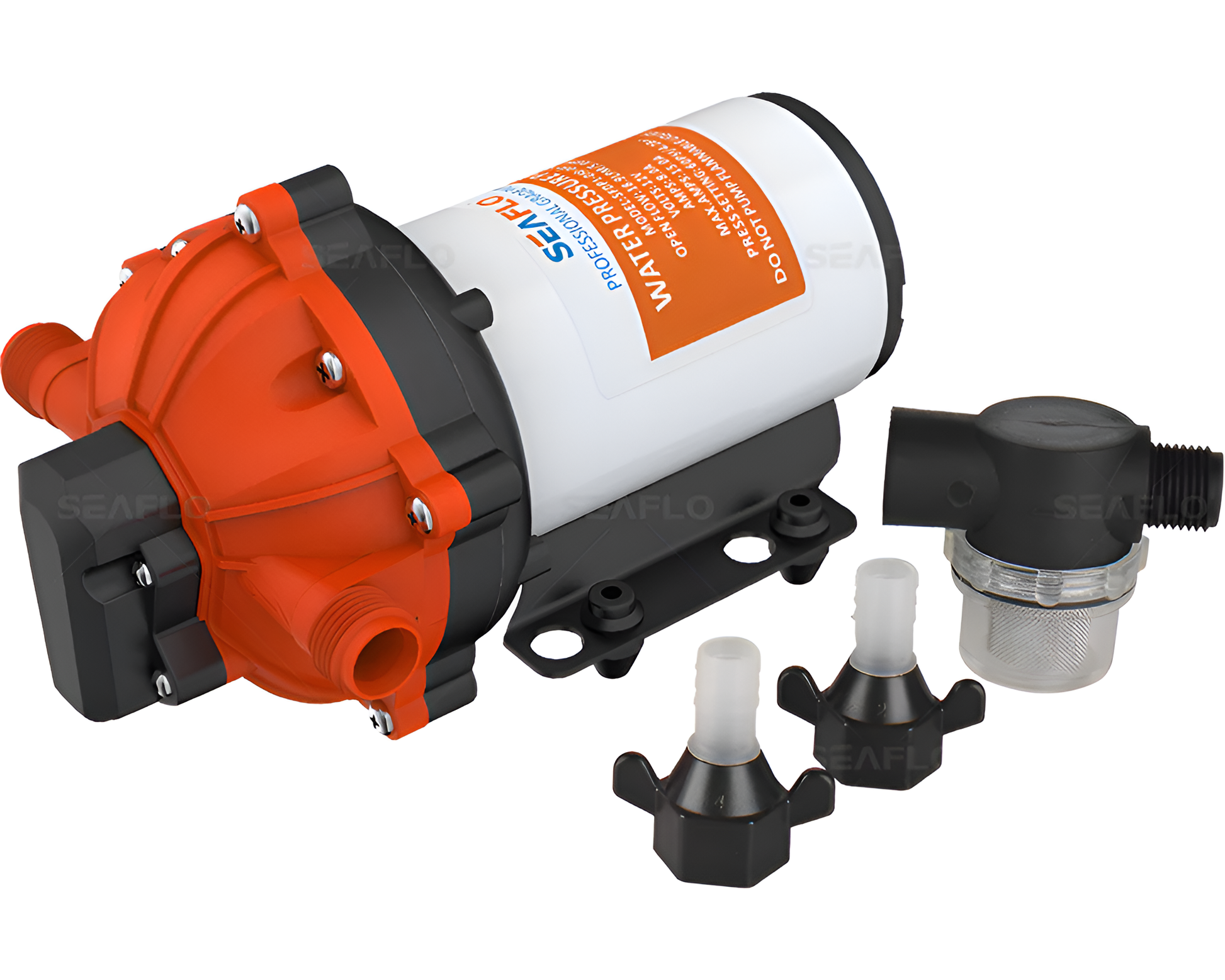

The SEAFLO Water Pump SFDP1-050-060-51 is a high-performance automatic diaphragm pump designed for marine, RV, cabin, and industrial water systems. With the SEAFLO Water Pump SFDP1-050-060-51, you get up to 5.0 gallons per minute flow, precise pressure control, and low pump cycling. This SEAFLO Water Pump SFDP1-050-060-51 is built with a five-chamber diaphragm, ensuring reliable operation even without an accumulator tank, supporting multiple fixtures simultaneously.

Features

• High Flow Rate: The SEAFLO Water Pump SFDP1-050-060-51 delivers 5.0 GPM for fresh or saltwater applications.
• Automatic Demand Operation: The SEAFLO Water Pump SFDP1-050-060-51 starts and stops automatically when faucets are opened or closed.
• Durable & Reliable: Waterproof, dustproof, and capable of running dry, the SEAFLO Water Pump SFDP1-050-060-51 is highly dependable.

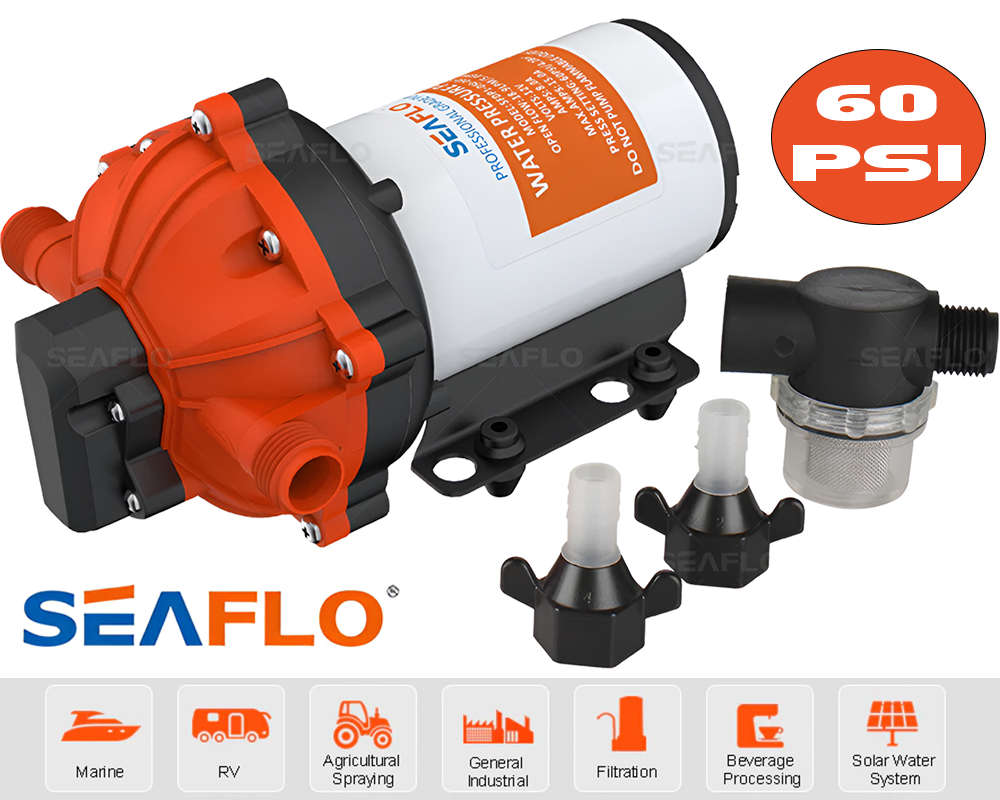

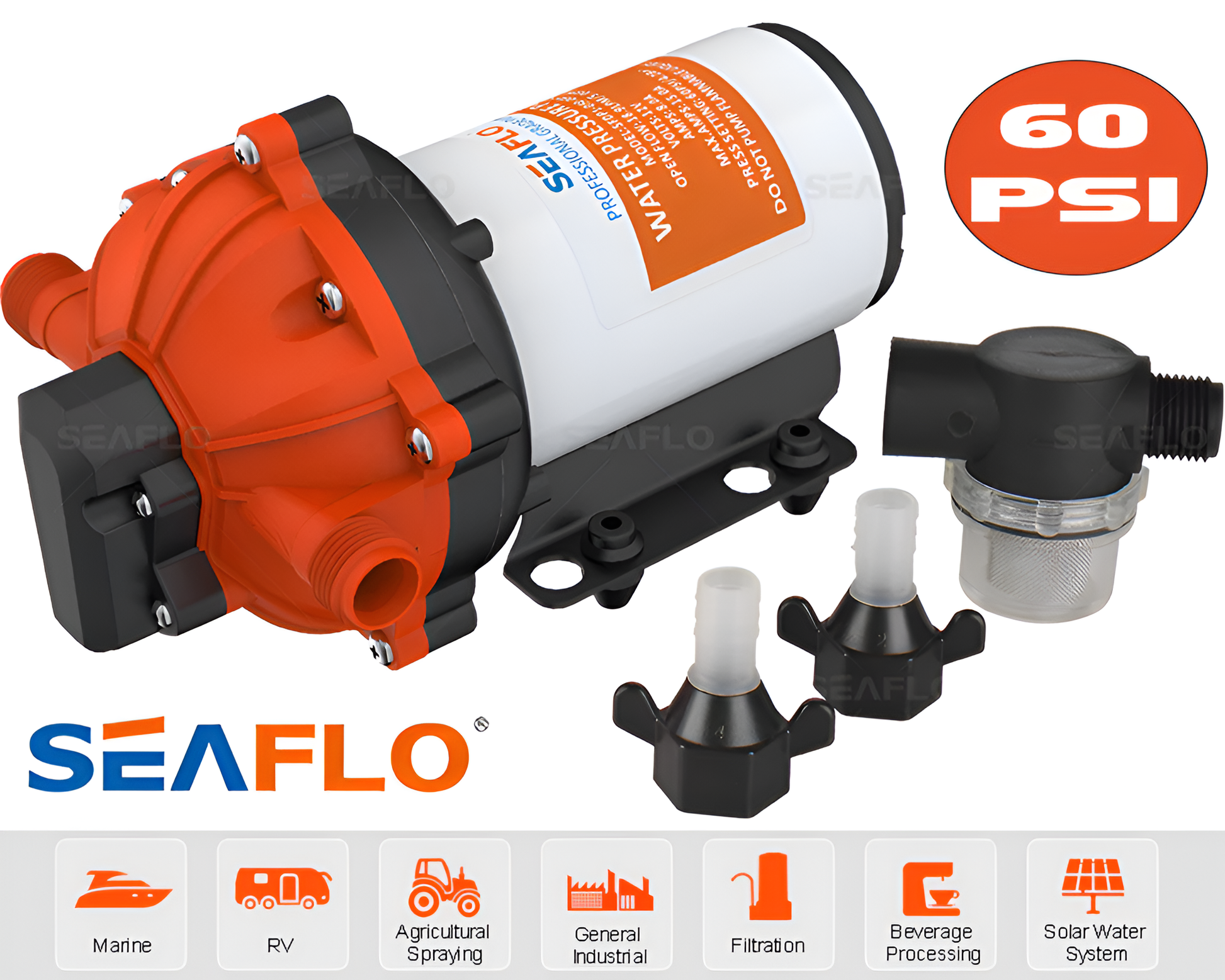

• Versatile Use: Ideal for boats, RVs, cabins, agricultural spraying, and solar water systems, the SEAFLO Water Pump SFDP1-050-060-51 adapts to many applications.
• Easy Installation & Maintenance: Lightweight, 12V operation, and self-priming, the SEAFLO Water Pump SFDP1-050-060-51 is simple to install and service.

Specifications

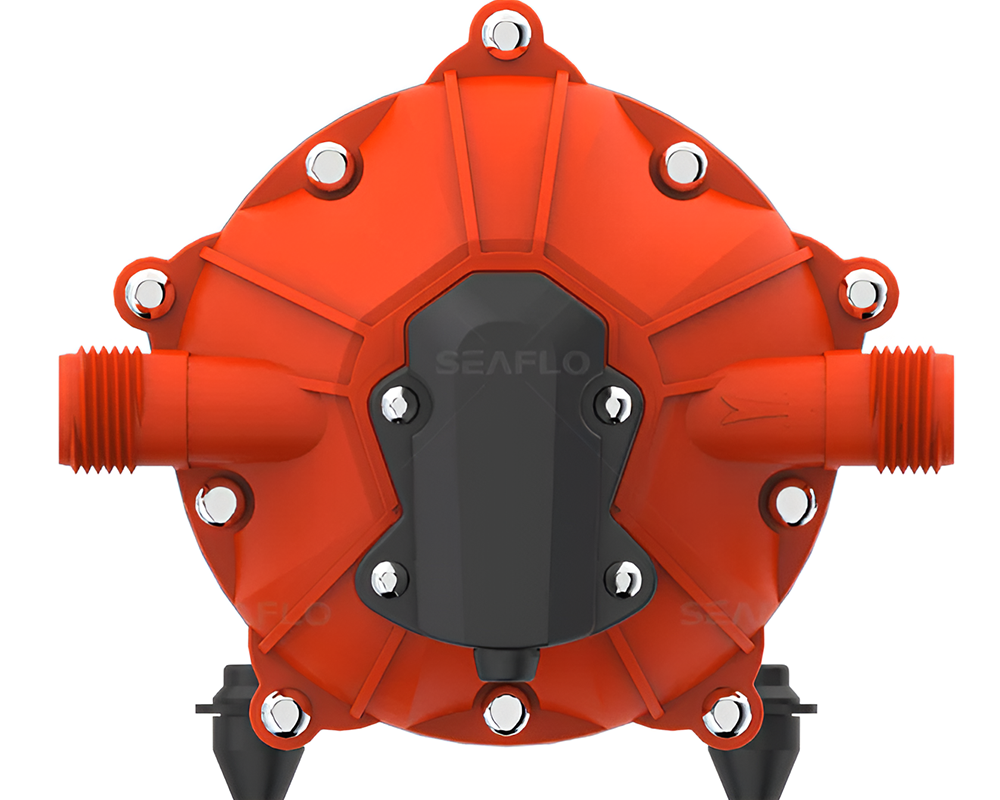

• Pump Type: 5-chamber positive displacement diaphragm pump (SEAFLO Water Pump SFDP1-050-060-51)
• Control Type: Pressure switch (SEAFLO Water Pump SFDP1-050-060-51)
• Max Temperature: 60°C / 140°F
• Priming: 6 ft (1.8 m) suction lift
• Re-start Pressure: Shut-on 20 PSI ±3 PSI / Shut-off 60 PSI ±3 PSI

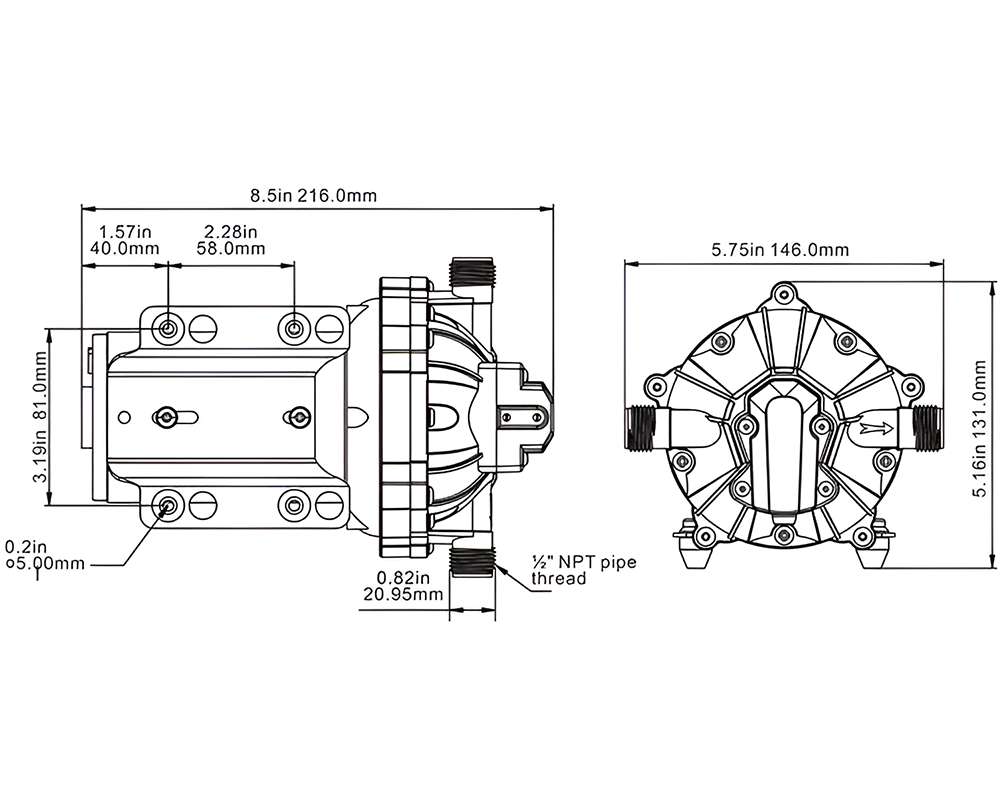

• Inlet/Outlet Ports: 1/2"-14 MNPT
• Weight: 2.8 kg

Motor Specifications

• Voltage: 12V DC
• Open Flow: 5.0 GPM / 18.9 LPM
• Max Amp Draw: 15A
• Duty Cycle: Continuous
• Fuse: 25.5A
• Leads: 14 AWG, 33 cm with 2-pin connector

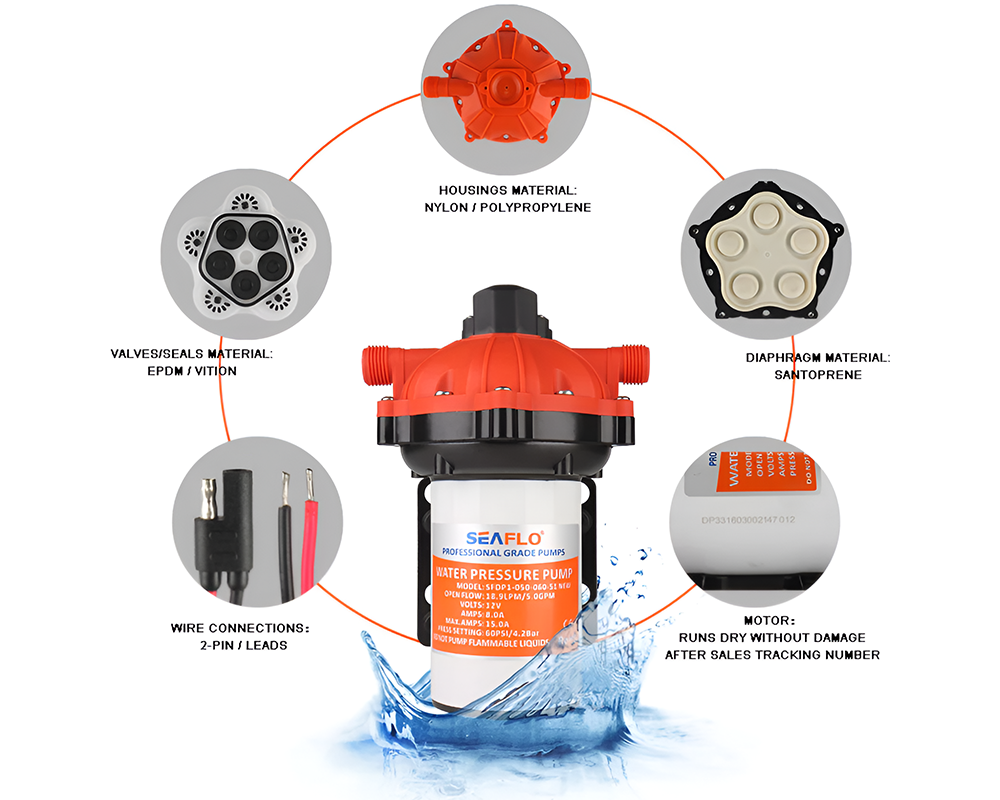

Materials

• Diaphragm: Santoprene
• Valves: EPDM
• Ports: 1/2"-14 MNPT

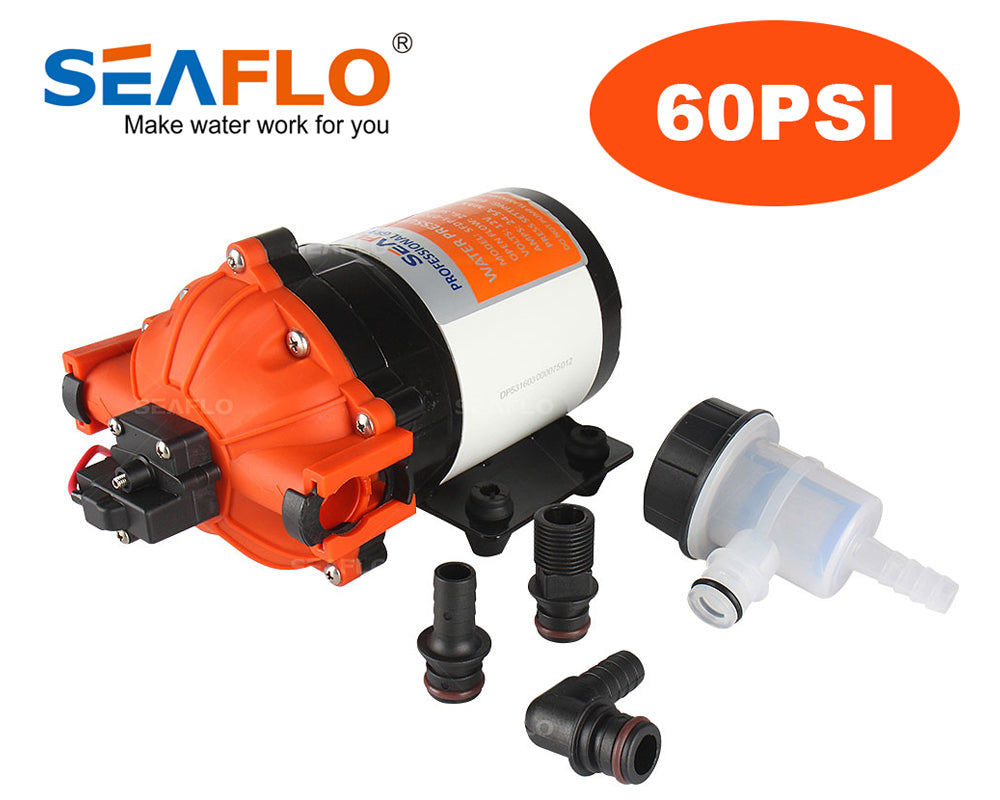

Package Includes

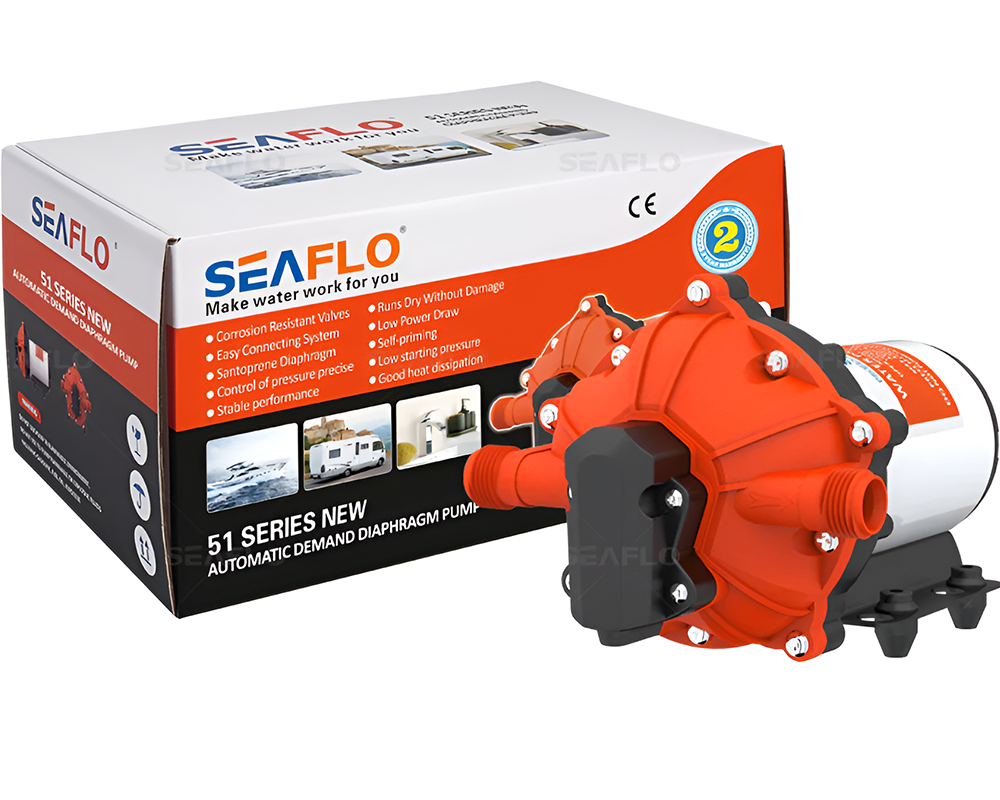

• 1 × SEAFLO Water Pump SFDP1-050-060-51 – 60PSI Automatic Diaphragm Pump

For anyone needing reliable water delivery, the SEAFLO Water Pump SFDP1-050-060-51 is an ideal choice. With its high flow, automatic demand control, and durable diaphragm design, the SEAFLO Water Pump SFDP1-050-060-51 ensures consistent performance. Easy to install, maintain, and operate, the SEAFLO Water Pump SFDP1-050-060-51 is perfect for boats, RVs, cabins, and industrial water systems.
