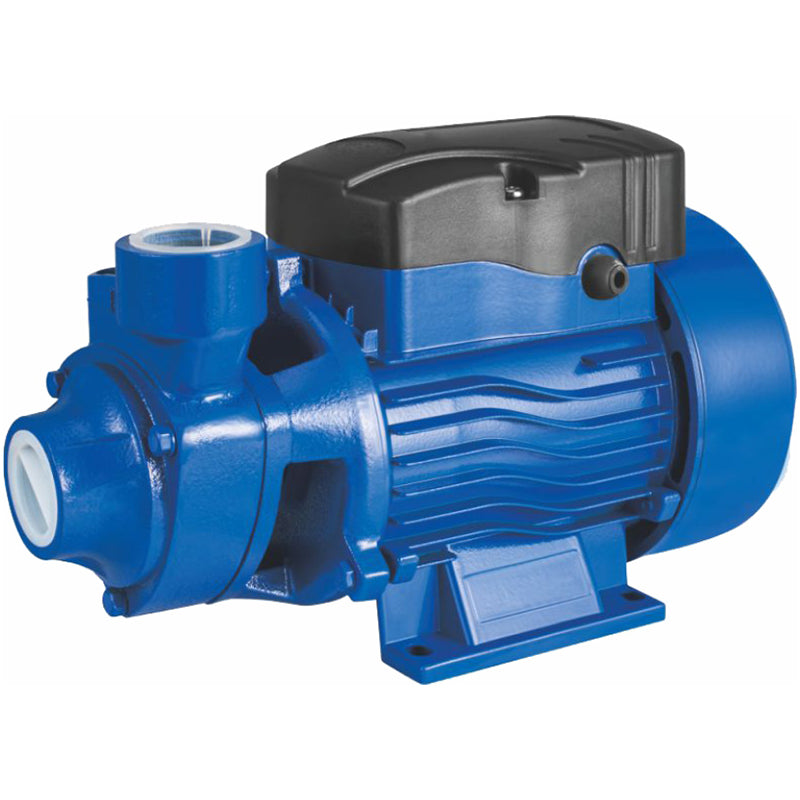

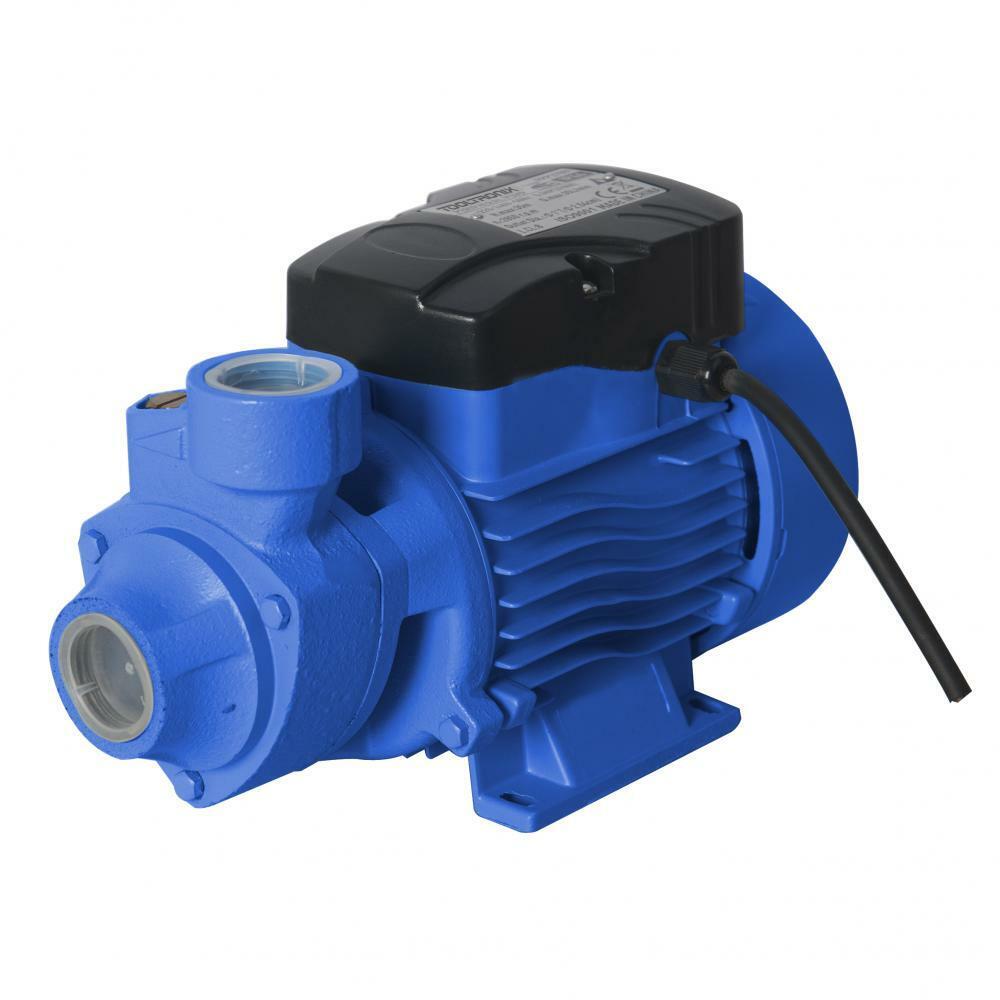

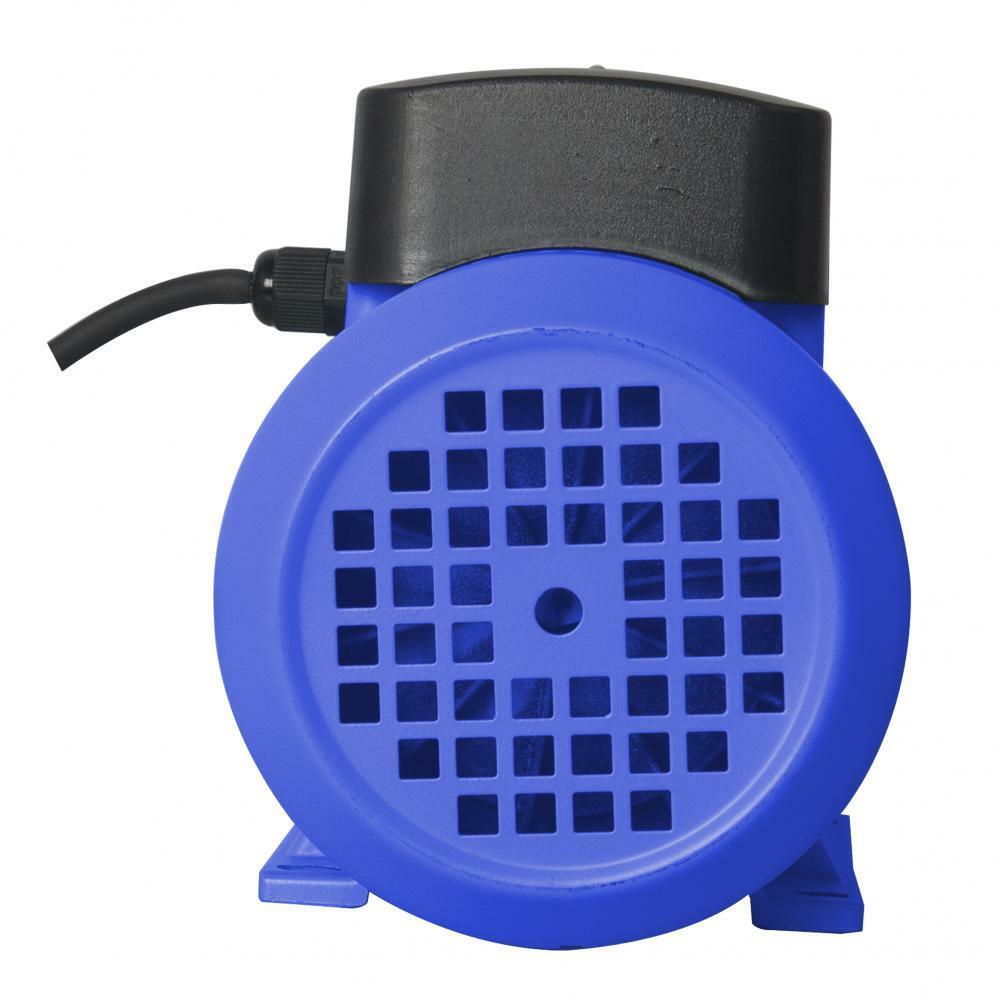

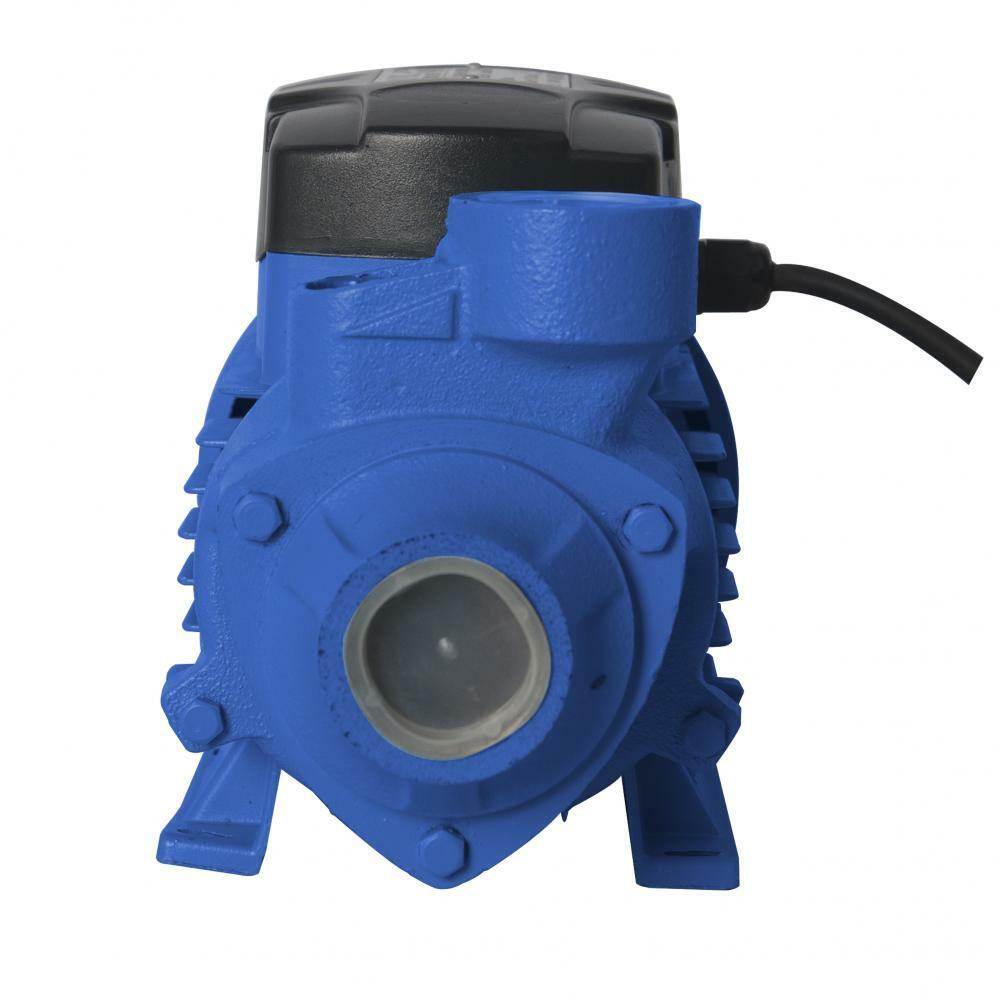

QB60 Clean Water Pump | High-Quality Domestic Peripheral Pump for Water Pressure, Irrigation, and Cleaning
The QB60 Clean Water Pump from the QB Series is designed for domestic and industrial applications, offering reliable performance with a peripheral impeller that provides high pressure at relatively low power consumption. This pump is ideal for a variety of tasks, including pool pumping, increasing water pressure in pipes, garden sprinkling, irrigation, and general cleaning.
Key Features:
- High Efficiency: The QB60 pump is equipped with a rust-resistant brass impeller, ensuring steady performance and a smooth operating curve.
- Durable Construction: Built with a cast iron pump body and aluminum alloy motor housing, it’s engineered for long-lasting use in demanding environments.
- Versatile Application: Suitable for pumping clean water or non-aggressive liquids without solid impurities, making it perfect for home water systems and aqueduct pressure increase.
Operating Conditions:
- Liquid Temperature: Up to 60ºC
- Ambient Temperature: Up to 40ºC
- Suction Lift: Max 9m
- Continuous Duty: Designed for heavy-duty continuous operation
Specifications:
- Power Input (Max): 0.55kW
- Output Power: 0.37kW / 0.5HP
- Current: 2.5A
- Max Flow Rate: 36L/min
- Max Head (Hmax): 35m
- Insulation: Class B / Class F
- Protection Rating: IP44 / IP54
- Cooling: External air-cooled by fan
- Pump Body: Cast iron with brass insert if needed
- Shaft Material: Carbon steel / stainless steel
- Mechanical Seal: SIC/Ceramic/Graphite
- Impeller: Brass or stainless steel options available
Applications:
- Domestic Water Systems: Increase pressure in home aqueducts.
- Irrigation and Sprinkling: Ideal for garden and agricultural use.
- Pool and Cleaning Operations: Efficient for pool water circulation and cleaning tasks.
- Pressure Tank Systems: Works seamlessly with hydrosphere units for automatic water distribution.
Easy to install and maintain, the QB60 Clean Water Pump provides powerful, reliable water pumping with minimal power consumption.
