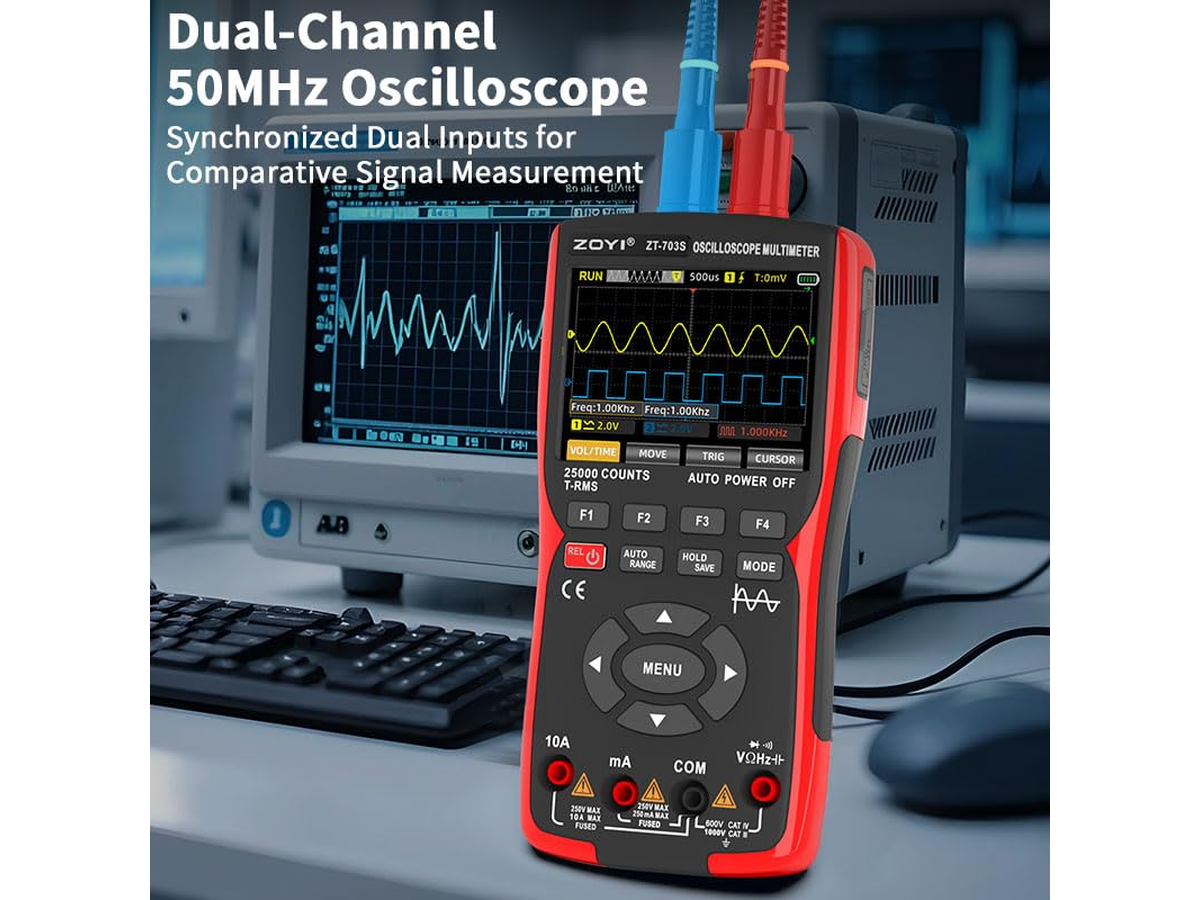

Handheld Oscilloscope 3 In 1 Dual Channel 50MHz with Multimeter and Signal Generator
Handle automotive, electronics and workshop testing with this Handheld Oscilloscope. The compact 3 in 1 design combines a dual channel oscilloscope, digital multimeter and signal generator in one rechargeable device.
Two operating modes are available. Normal mode provides up to 200MSa/s sampling with 30MHz bandwidth, while high speed mode provides up to 280MSa/s sampling with a maximum bandwidth of 50MHz. AUTO waveform recognition helps simplify testing of unknown signals.

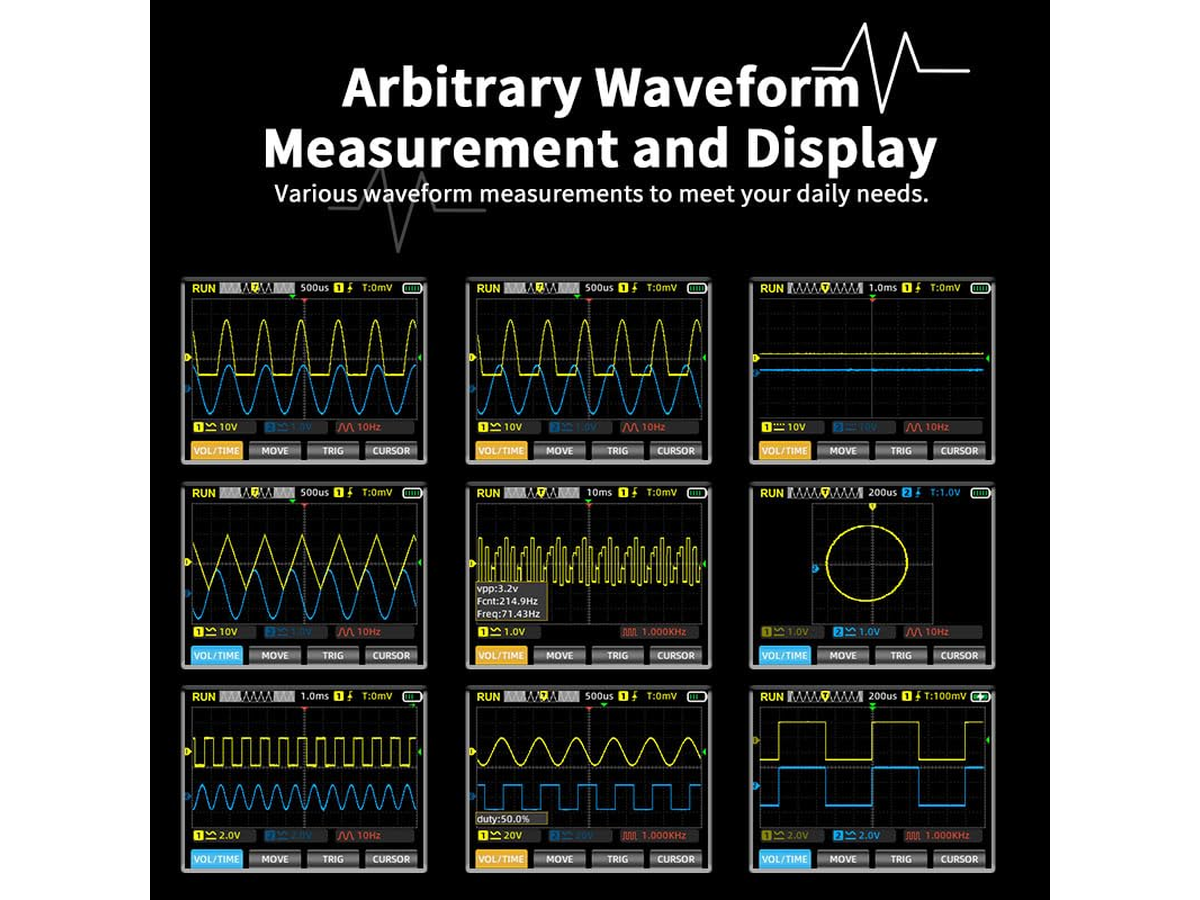

The multimeter provides 25000 counts and supports resistance, capacitance, continuity, diode and current measurements. The signal generator can output sine, square and triangle waveforms, while USB Type-C supports charging and data transfer.
Features

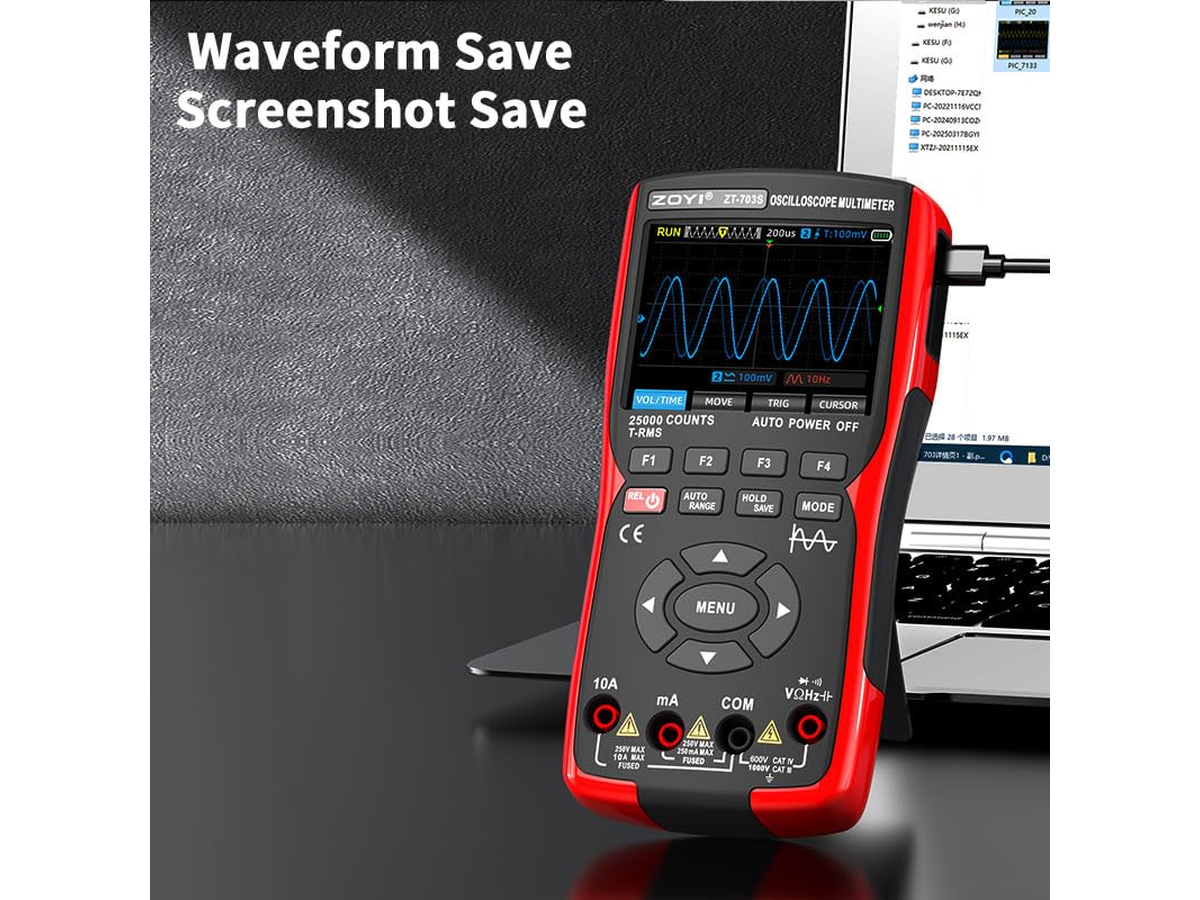

3 In 1 Design: Combines oscilloscope, multimeter and signal generator functions. Dual Channel Testing: Supports measurement of multiple waveform types. 50MHz Maximum Bandwidth: Available in high speed mode. 280MSa/s Sampling: Provides fast waveform capture in high speed mode. AUTO Recognition: Helps identify unknown waveforms more conveniently. 25000 Count Multimeter: Supports resistance, capacitance, continuity, diode and current testing. Signal Generator: Outputs sine, square, triangle and compatible waveforms. Waveform Storage: Allows waveform image storage. Type-C Port: Supports charging and data transfer. Portable Design: Suitable for automotive, electronics, workshop and field testing.
Specifications

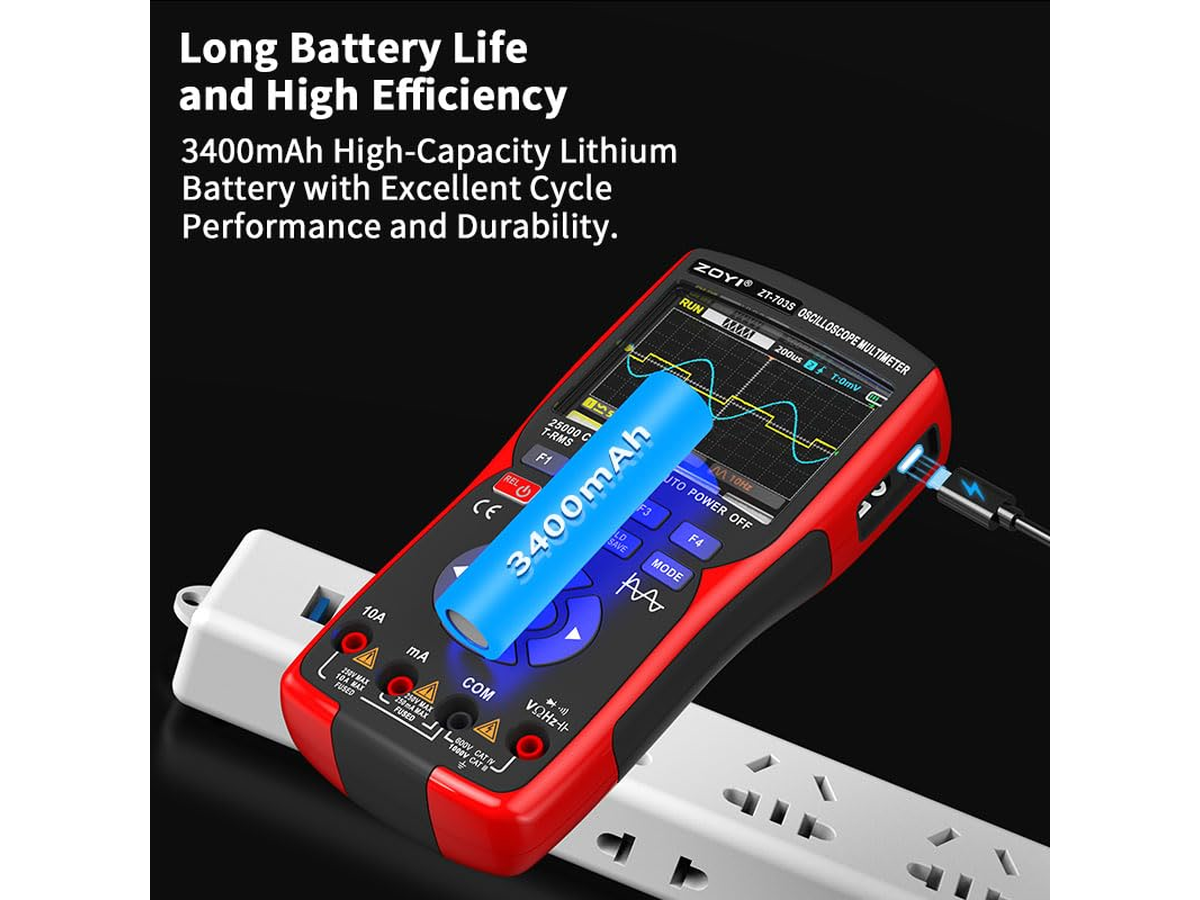

Product Type: Handheld Oscilloscope Model: ZT-703S Oscilloscope Channels: 2 Normal Mode Sampling Rate: 200MSa/s Normal Mode Bandwidth: Up to 30MHz High Speed Sampling Rate: 280MSa/s High Speed Bandwidth: Up to 50MHz Storage Depth: 128K Multimeter Resolution: 25000 Counts Multimeter Functions: Resistance, Capacitance, Continuity, Diode and Current Signal Generator: Yes Waveforms: Sine, Square, Triangle and More AUTO Recognition: Yes Charging Port: USB Type-C Data Transfer: USB Type-C Power Source: Rechargeable Battery Colour: Red Weight: Approx. 380 g

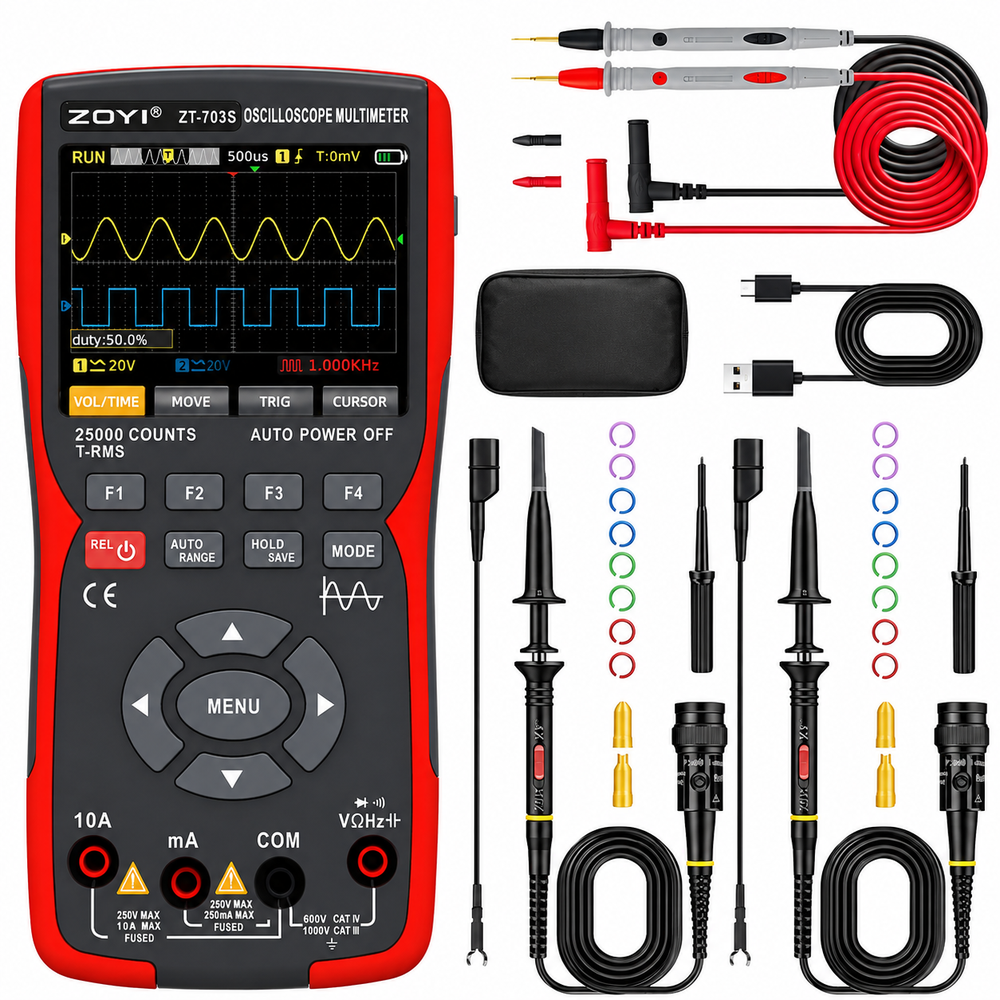

Package Includes
1 X Handheld Oscilloscope
Note: Please refer to the supplied user manual before operation, especially when using high speed, multimeter or signal generator functions.
