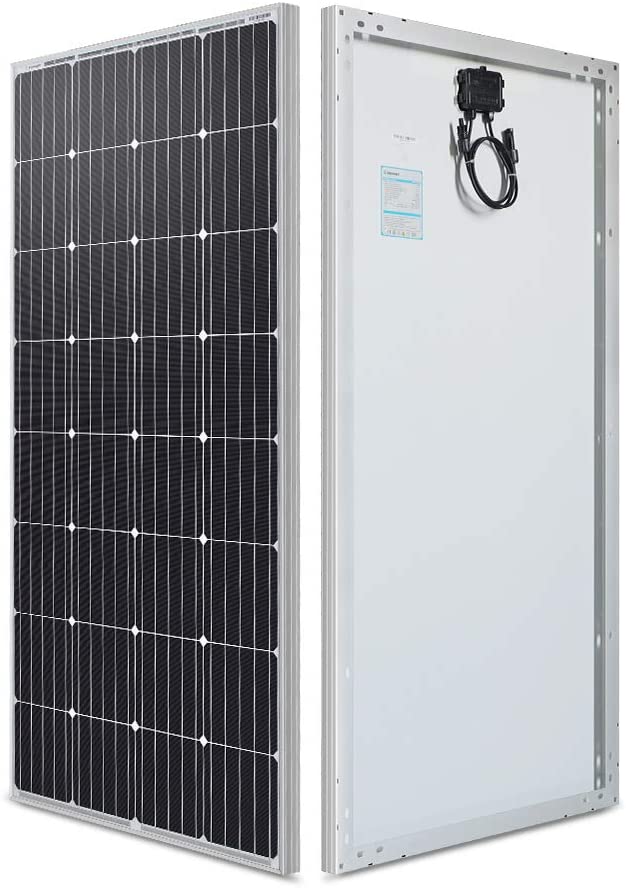

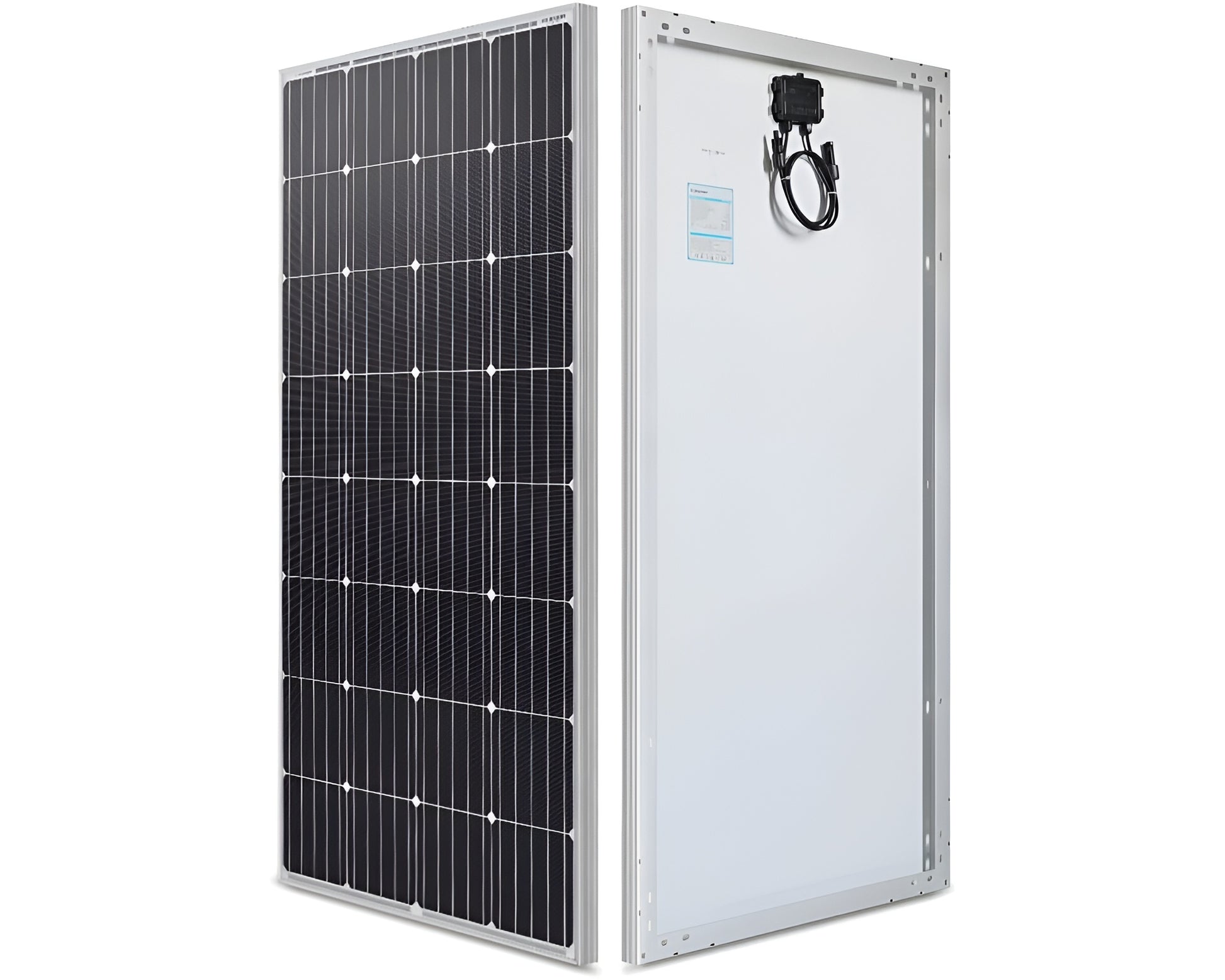

200W Mono-crystalline Solar Panel

200W Mono-crystalline Solar Panel

Specifications:

• Max.Power (Pmax): 200W +/- 3%
• Max power voltage (Vmp): 36V
• Max power current (Imp): 5.56A
• Open circuit voltage (Voc): 43.2V
• Short circuit current (Isc): 6.1A
• Module Efficiency STC: 18.47%
• Cell Efficiency: 20.50%
• Dimensions: 1590 x 820 x 35mm
• Weight: 13.3kg
• Cell Type: Mono-crystalline Trinasolar®
• Temperature Coefficient of Pmax: -0.435%/°C
• Temperature Coefficient of Voc: -0.35%/°C
• Temperature Coefficient of Isc: 0.043%/°C
• Operating Temperature Range: -40°C to +85°C
• Max System Voltage: 1000V
• Max Series Fuse: 10A

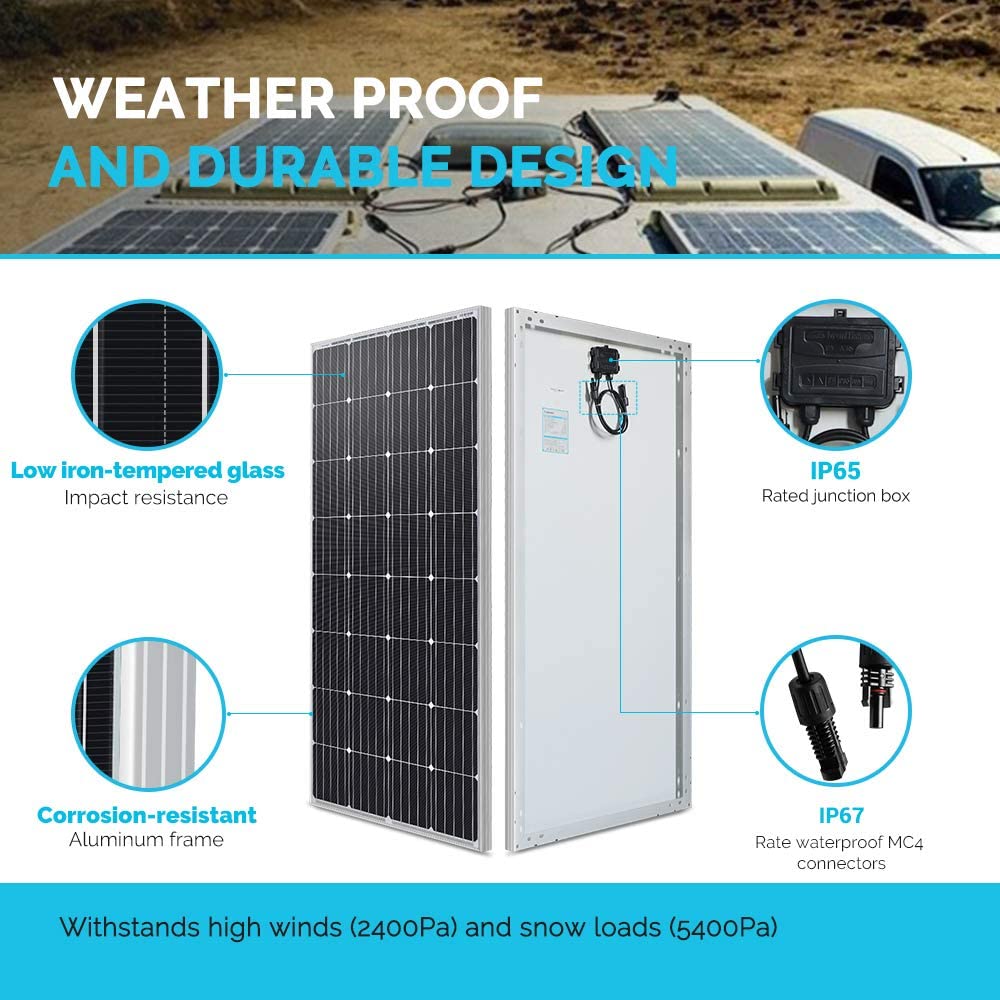

• Waterproof: IP65
• Fire Rating: Class C
• Wind Load: 2400 Pascal
• Snow Load: 5400 Pascal
• Application Class: Class A

Description:

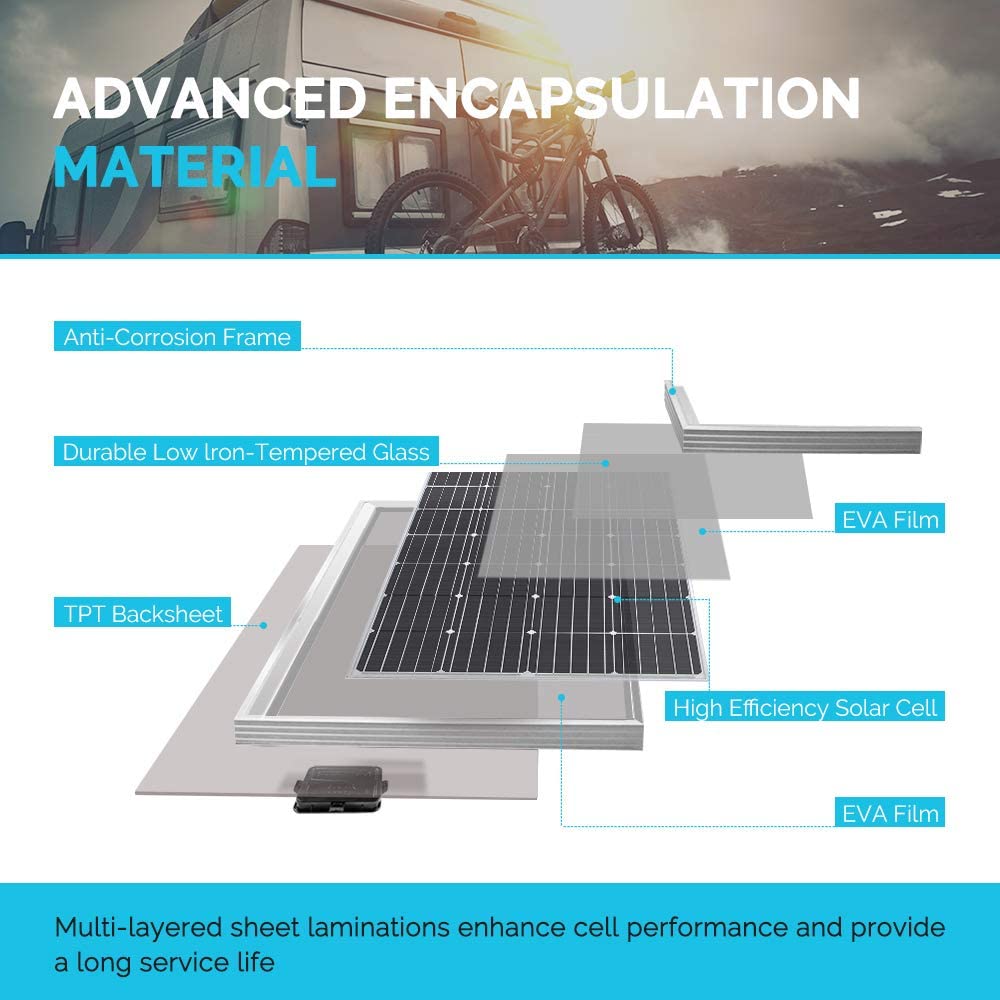

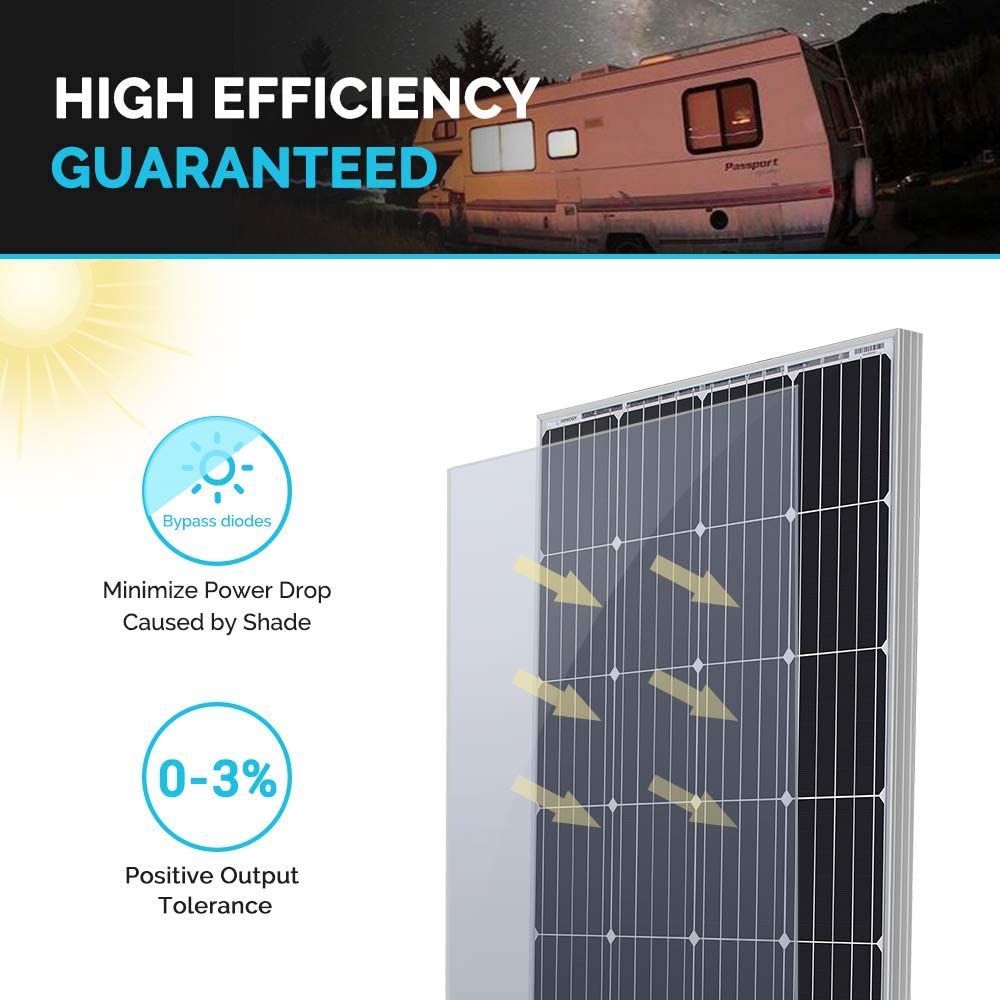

The 200W Mono-crystalline Solar Panel features high-efficiency A-grade Trinasolar® cells and is designed for robust performance and durability. It comes with a weather-tight junction box with an IP65 rating and built-in bypass diode for enhanced protection during partial shading. The panel includes 900mm cables with MC4 connectors for easy installation and connectivity.

Packaging:

• 1 x Mono-crystalline Solar Panel 200W
