Solar Panel 120W

120W Mono-crystalline Solar Panel

Upgrade your renewable energy setup with the high-efficiency 120W Mono-crystalline Solar Panel, featuring Trinasolar® cells for superior performance.

Features:

• High-efficiency A-grade Mono-crystalline Trinasolar® cells.

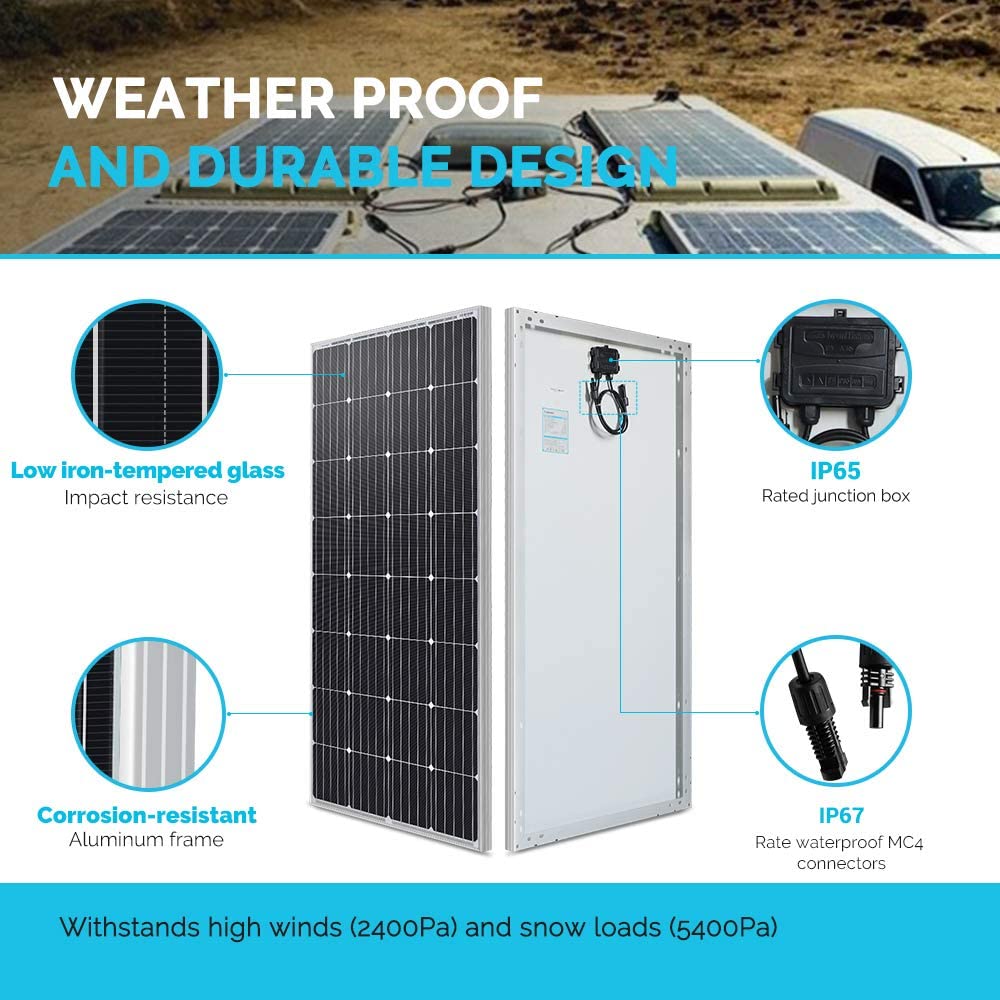

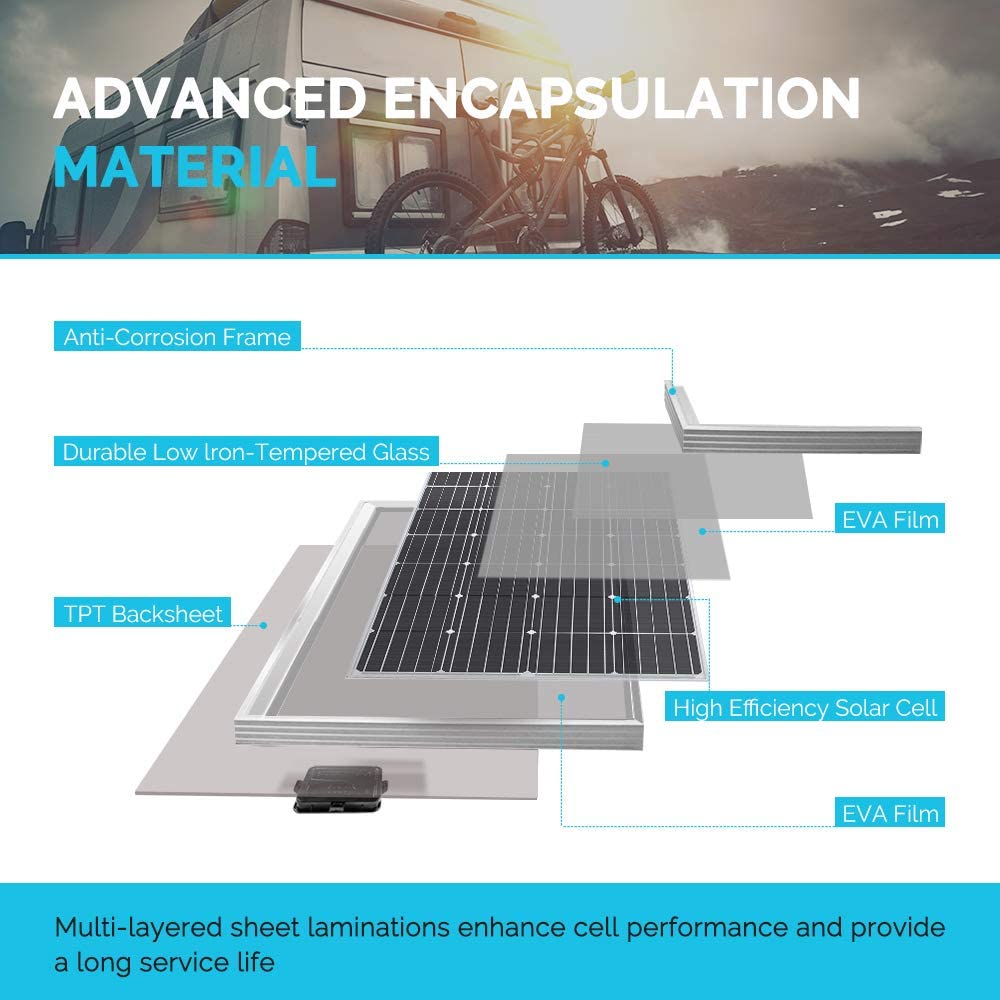

• 3.2mm safety/tempered glass with low-iron content for maximum light absorption.
• Corrosion-resistant anodized aluminium frame for strength and easy mounting.
• Weather-tight junction box with IP65 Ingress Protection rating.

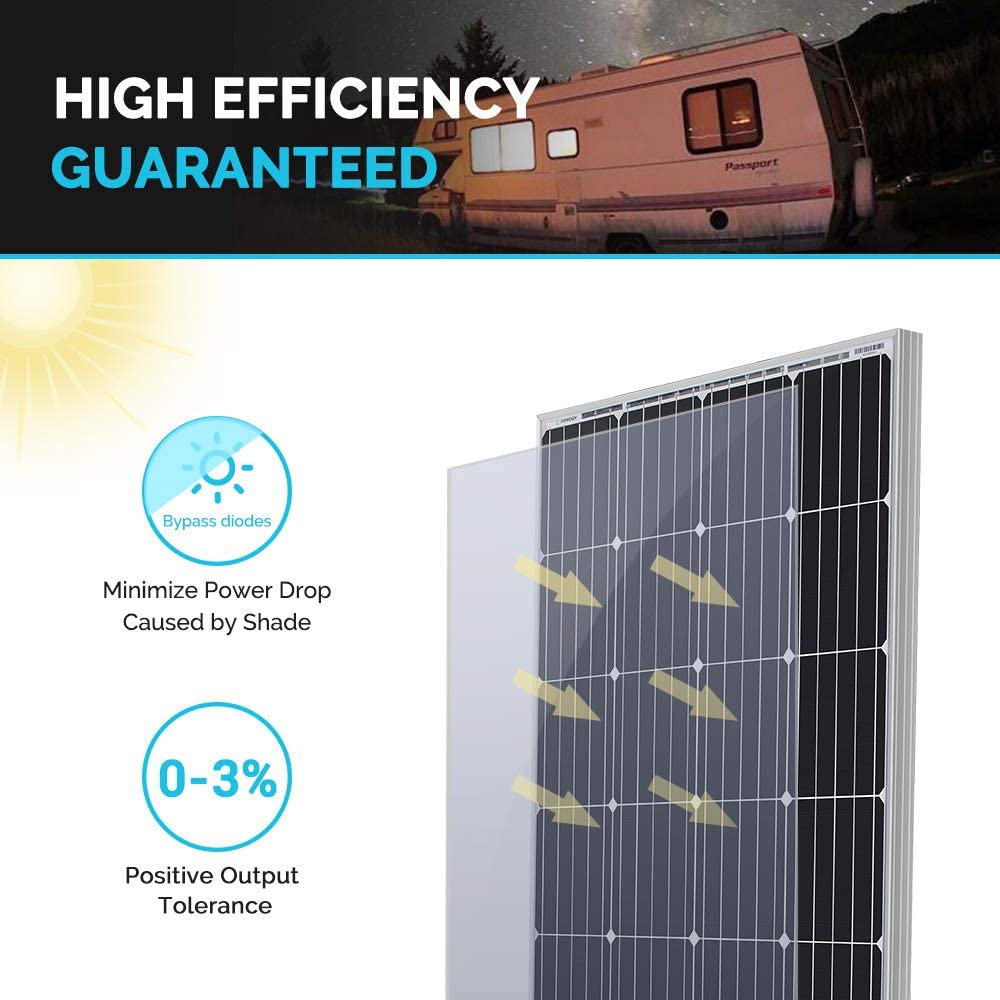

• Built-in bypass diode in the junction box for added protection during partial shading.
• 900mm cables with MC4 connectors crimped onto each cable.

Specifications:

• Chemical Type: Mono-crystalline silicon solar cell
• Structure Type: Homogeneous junction solar cell
• Status of Use: Flat solar battery
• Output Power: 120W
• Operating Voltage: 18V
• Short Circuit Current: 7.19A
• Max Power Current: 6.66A
• Open Circuit Voltage: 21.6V
• Dimensions: 108 x 70 x 3 cm
• Weight: 7.2 kg
• Power Tolerance: -3%
• Cell Efficiency: 20.50%
• Module Efficiency STC: 18.47%
• Operating Temperature Range: -40°C to +85°C
• Cell Type: Mono-crystalline Trinasolar®
• Temperature Coefficient of Pmax: -0.435%/°C
• Temperature Coefficient of Voc: -0.35%/°C
• Temperature Coefficient of Isc: 0.043%/°C
• Normal Operating Cell Temperature: 47°C ± 2°C
• Wind Load: 2400 Pascal
• Snow Load: 5400 Pascal
• Warranty: 10 Years
• Application Class: Class A
• Fire Rating: Class C

Package Includes:

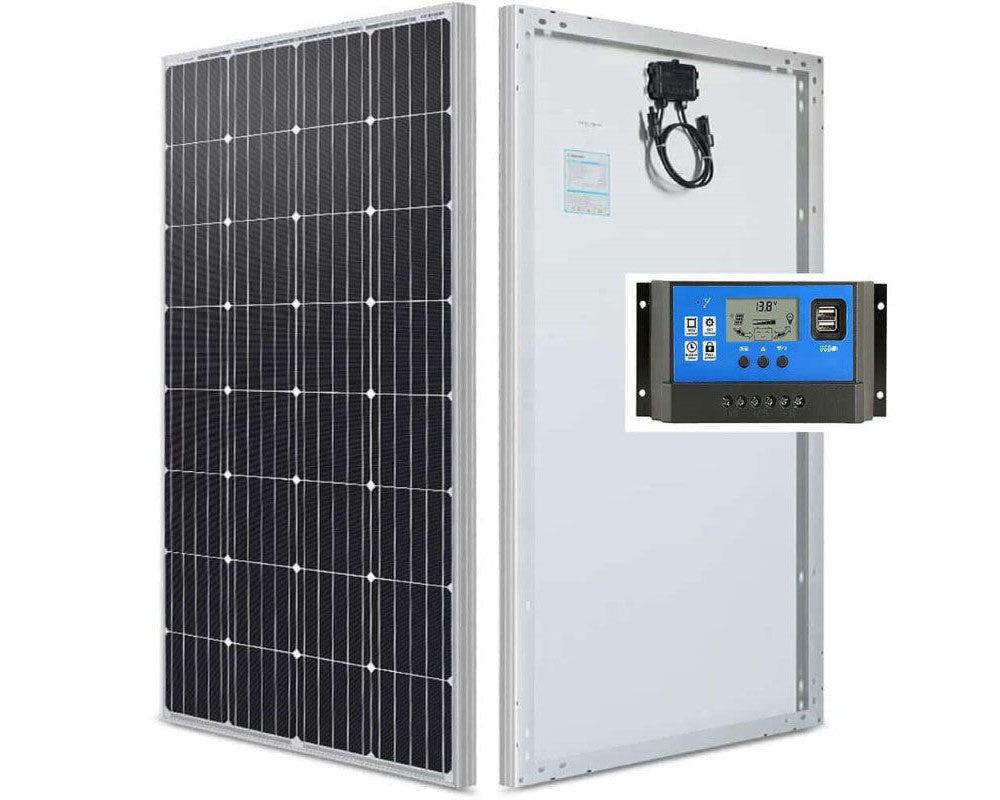

• 1 x High-Efficiency 120W Solar Panel
• 1 x 50A Solar Controller
