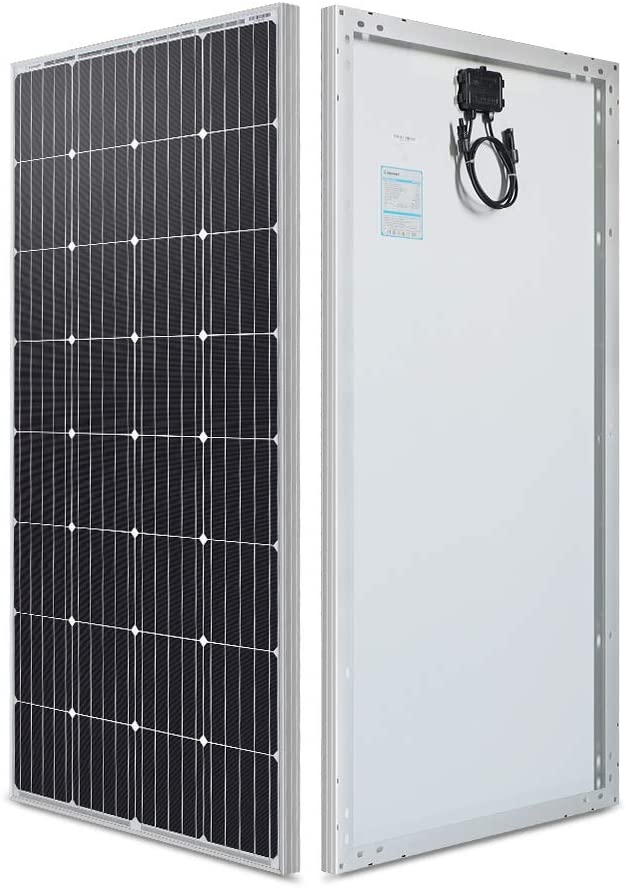

Solar Panel Mono-crystalline Solar Panel Kit

120W High-Efficiency Mono-crystalline Solar Panel with Trinasolar® Cells

Our 120W solar panel is crafted with high-efficiency A-grade Mono-crystalline Trinasolar® cells, ensuring maximum solar production. Ideal for various applications, it features a robust design with easy installation.

Features:

• High Efficiency: Manufactured with A-grade Mono-crystalline Trinasolar® cells, providing excellent solar production efficiency.

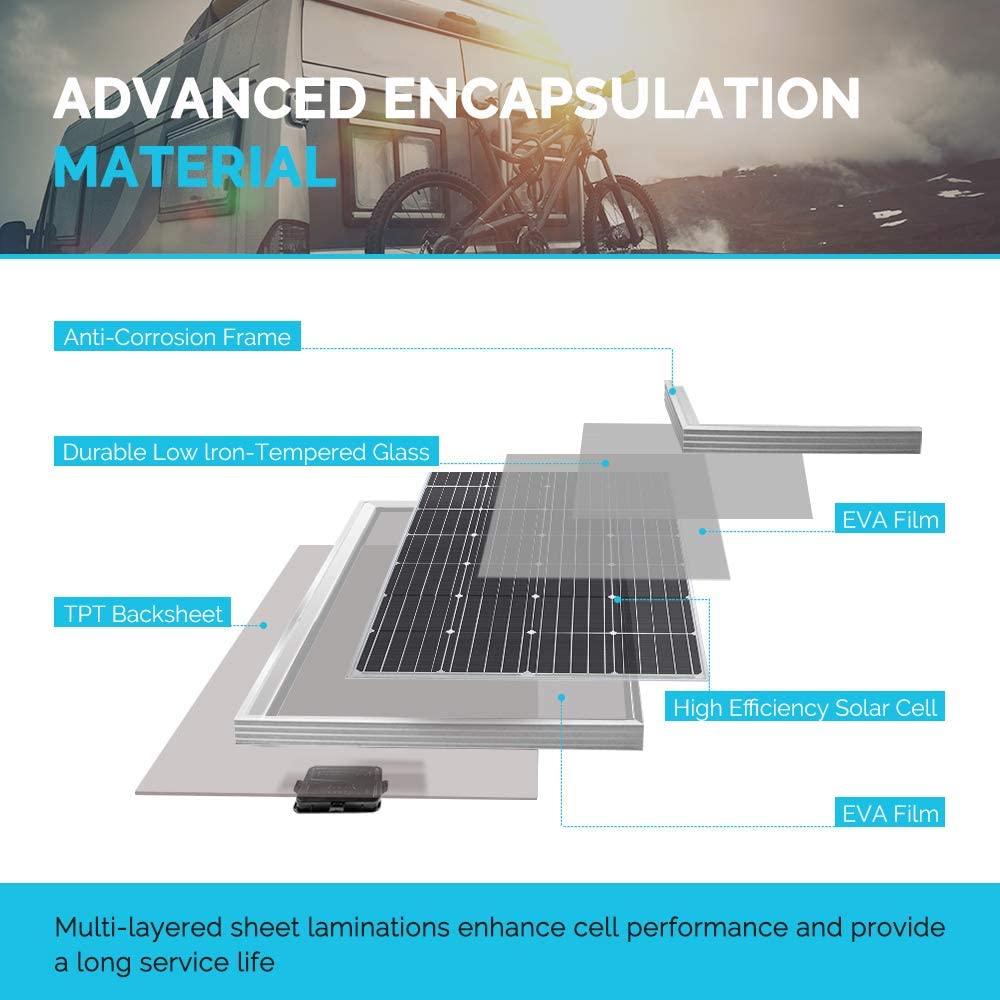

• Optimal Light Absorption: The 3.2mm safety/tempered glass front has low reflective properties and low iron content, maximizing light absorption and transparency.

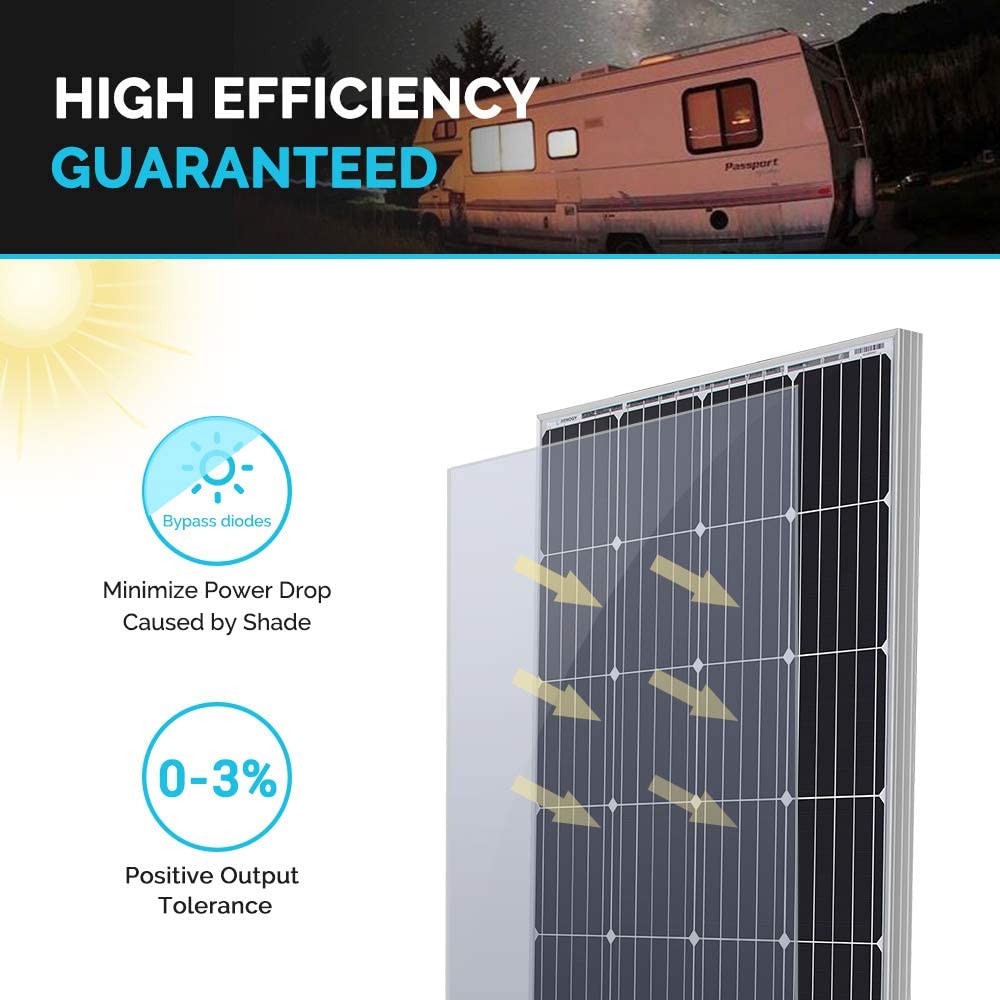

• Durable Construction: Corrosion-resistant anodized aluminum frame adds strength and allows for easy mounting. The junction box features a weather-tight seal with an IP65 rating, and a built-in bypass diode for protection during partial shading.
• Convenient Connectivity: Supplied with 900mm of cable for each positive/negative terminal, with standard MC4 connectors crimped onto each cable for easy and secure connections.

Specifications:

• Chemical Type: Mono-crystalline silicon solar cell
• Structure Type: Homogeneous junction solar cell
• Status of Use: Flat solar battery
• Output Power: 120W
• Operating Voltage: 18V
• Short Circuit Current: 7.19A
• Max Power Current: 6.66A
• Open Circuit Voltage: 21.6V
• Dimensions: 104*540*30mm
• Power Tolerance: ±3%
• Cell Efficiency: 20.50%
• Module Efficiency STC: 18.47%
• Operating Temperature Range: -40°C to +85°C
• Cell Type: Mono-crystalline Trinasolar®
• Dimensions: 108*70*3cm
• Weight: 7.2kg
• Temperature Coefficient of Pmax: -0.435%/°C
• Temperature Coefficient of Voc: -0.35%/°C
• Temperature Coefficient of Isc: 0.043%/°C
• Normal Operating Cell Temperature: 47°C ± 2°C
• Wind Load: 2400 Pascal
• Snow Load: 5400 Pascal
• Warranty: 10 Years
• Application Class: Class A
• Fire Rating: Class C

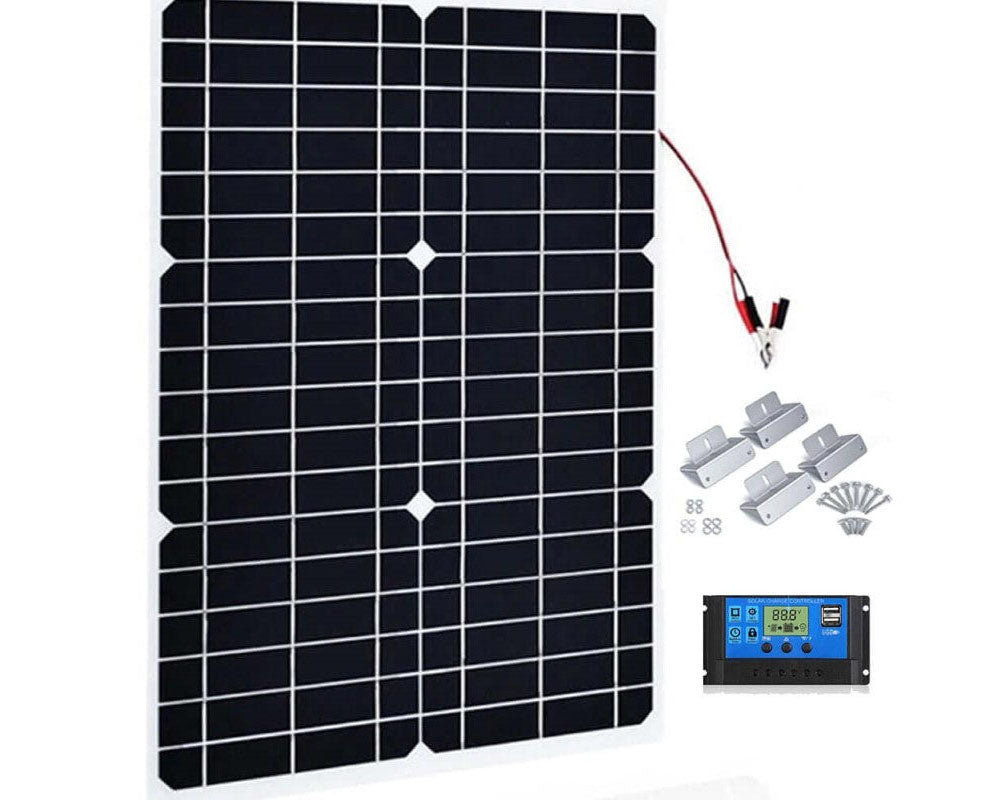

Packaging Content:

• 1 x High-Efficiency 120W Solar Panel
• 1 x 50A Solar Controller

We also sell 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W solar panels. Please check our store for more options.
