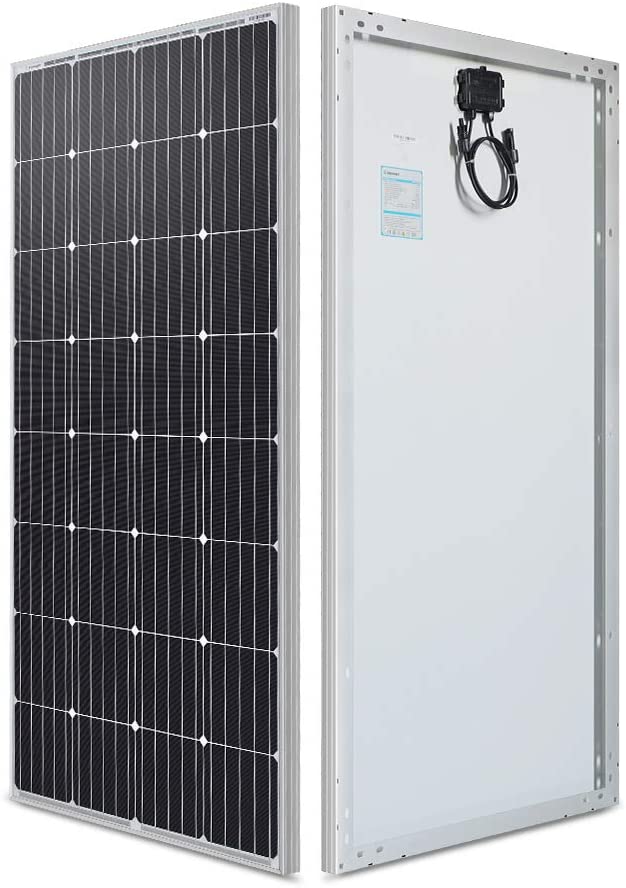

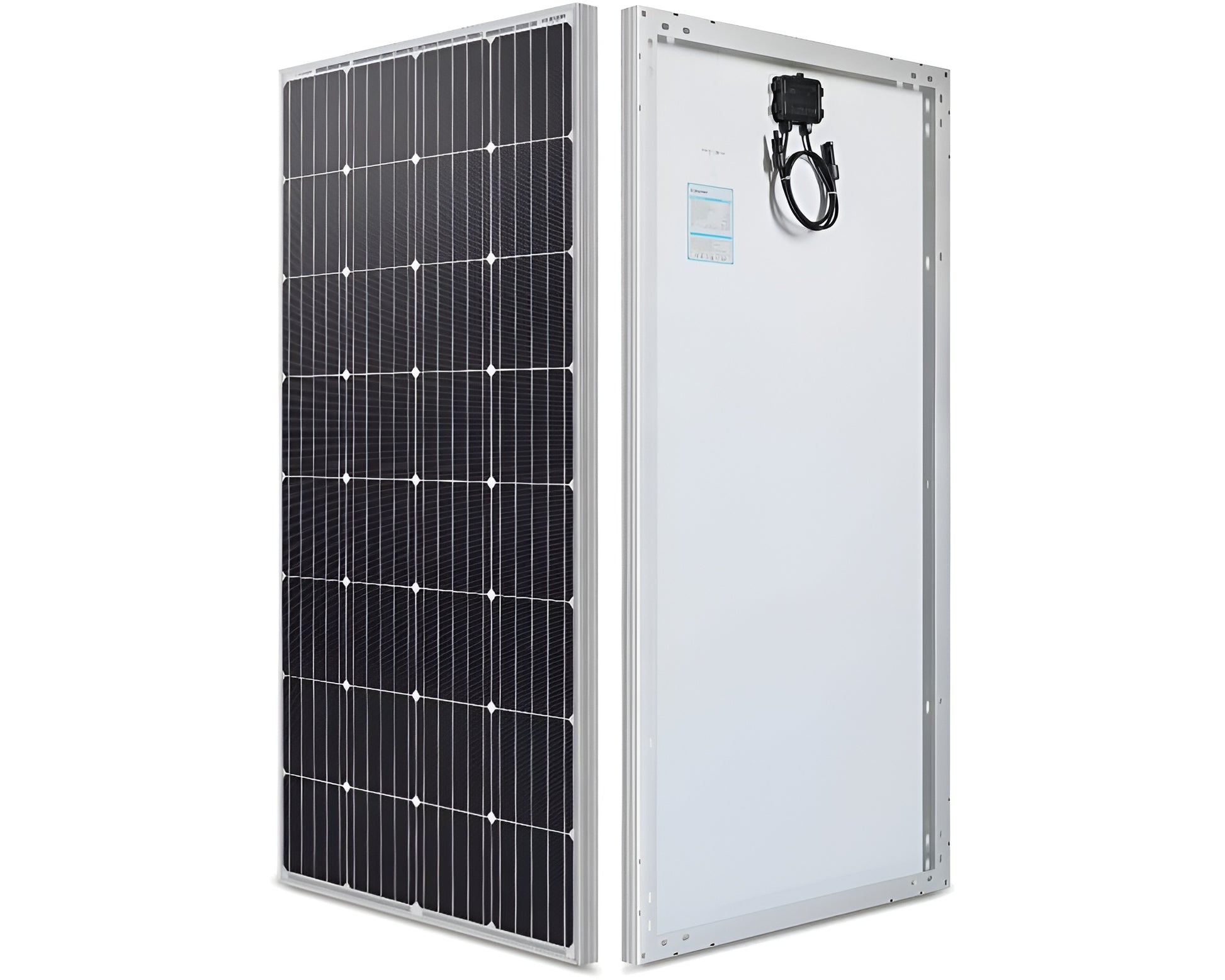

Enhance your renewable energy setup with the high-efficiency 100W Mono-crystalline Solar Panel, featuring durable construction and reliable performance.
Features:
High Efficiency: Manufactured with A-grade Mono-crystalline Trinasolar® cells for maximum solar production.

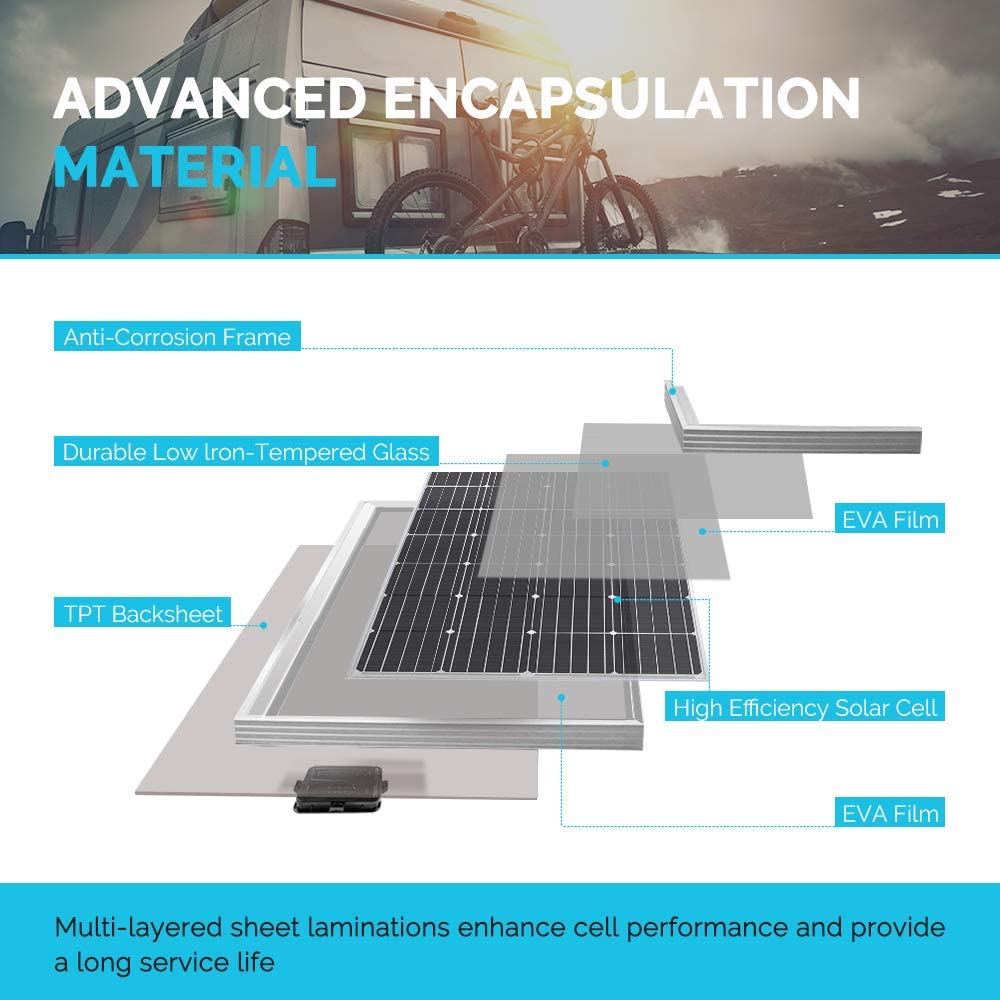

Durable Construction: 3.2mm safety/tempered glass with low-iron content for enhanced light absorption. Corrosion-resistant anodized aluminum frame for easy mounting.
Weather Protection: IP65-rated junction box with weather-tight seal and built-in bypass diode for added protection during partial shading.
Specifications:
Output Power: 100W
Operating Voltage: 18V
Conversion Efficiency: 18%
Working Current: 5.5A
Open Circuit Voltage: 21.6V
Power Tolerance: ±3%
Cell Efficiency: 20.50%
Module Efficiency (STC): 18.47%
Operating Temperature Range: -40°C to +85°C
Size: 1200 x 550 x 30mm
Weight: 7kg
Temperature Coefficients:
Pmax: -0.435%/°C
Voc: -0.35%/°C
Isc: 0.043%/°C
Normal Operating Cell Temperature: 47°C ± 2°C
Wind Load: 2400 Pascal
Snow Load: 5400 Pascal
Warranty: 10 Years
Application Class: Class A
Fire Rating: Class C

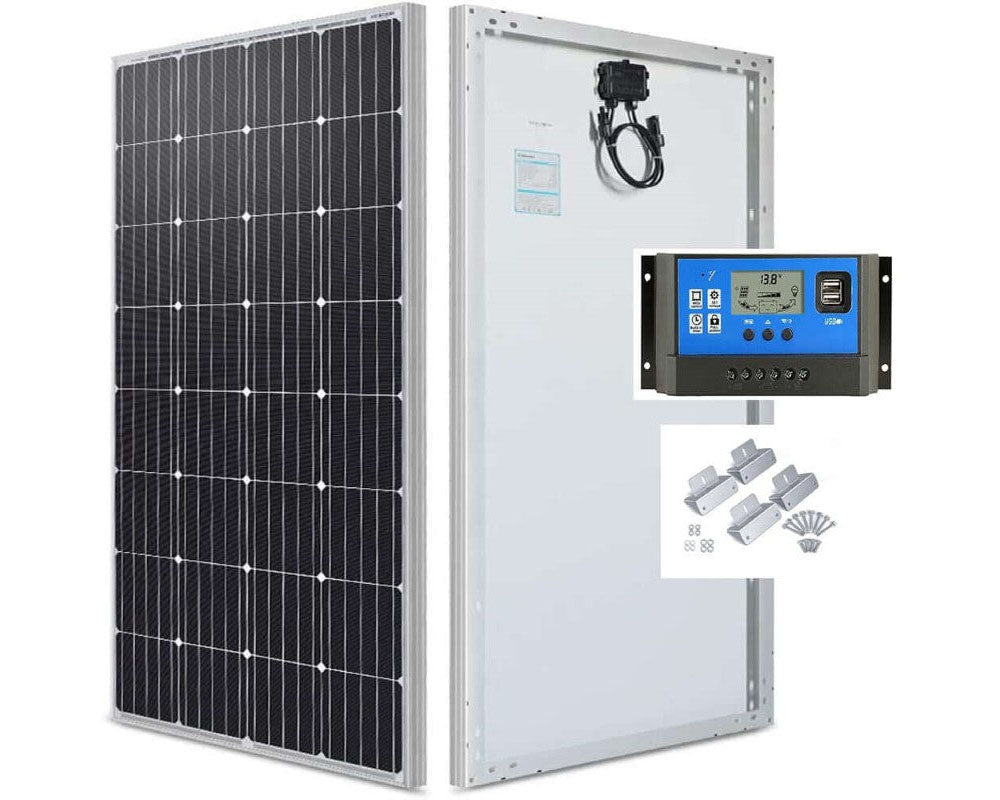

Package Includes:
1 x High-Efficiency 100W Mono-crystalline Solar Panel
1 x 30A 12V/24V Auto Switch Charge Controller
We also offer a variety of other solar panel sizes ranging from 20W to 320W. Check our store for more options!
