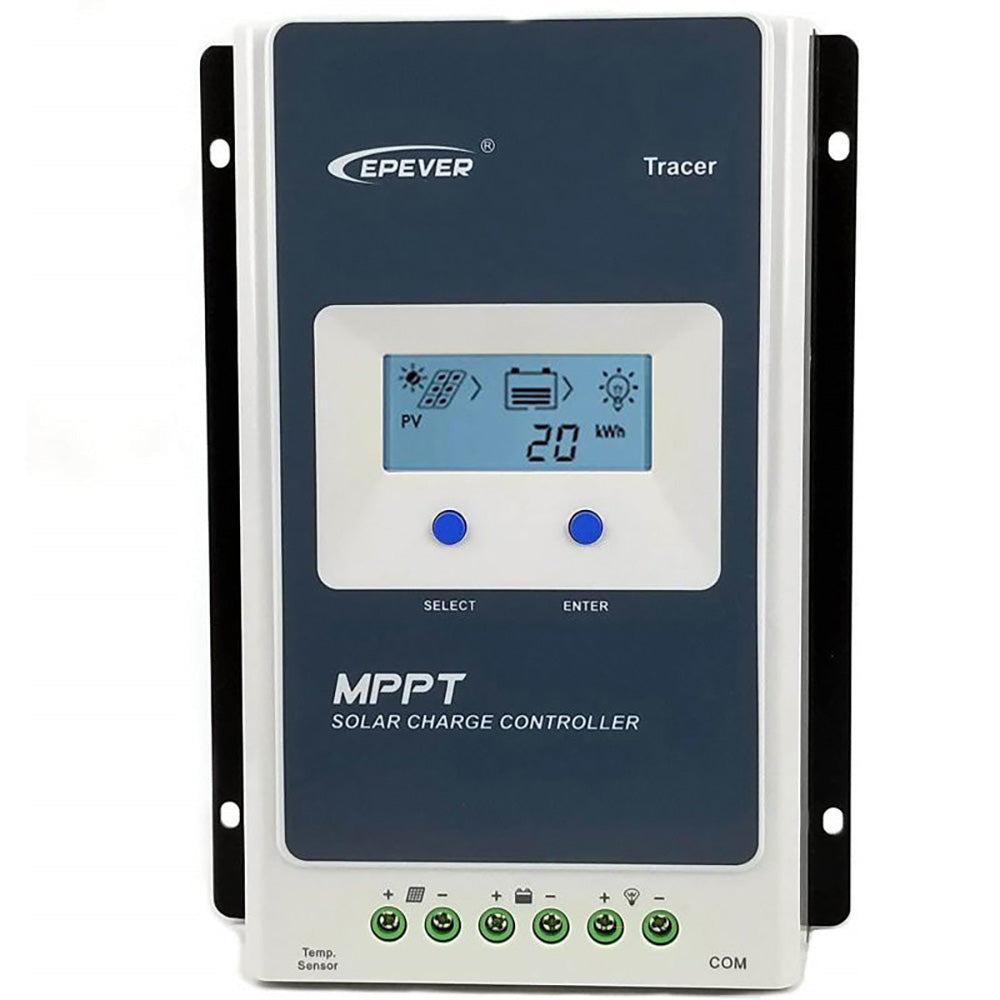

The EPEVER 40A MPPT Charge Controller is designed to efficiently control the Solar Charge Controller charging and discharging of your solar energy system, ensuring safe operation and optimal performance. With advanced MPPT technology and multiple load control modes, Solar Charge Controller offers versatile functionality and reliable protection for your batteries.
Features:
Negative Ground Design
System Voltage Ratings: 12V, 24V DC
Compatible with GEL, Sealed, Flooded, and Lithium Solar Charge Controller Batteries
MPPT Tracking Efficiency: ≥99.5%
Maximum Conversion Efficiency: 98%

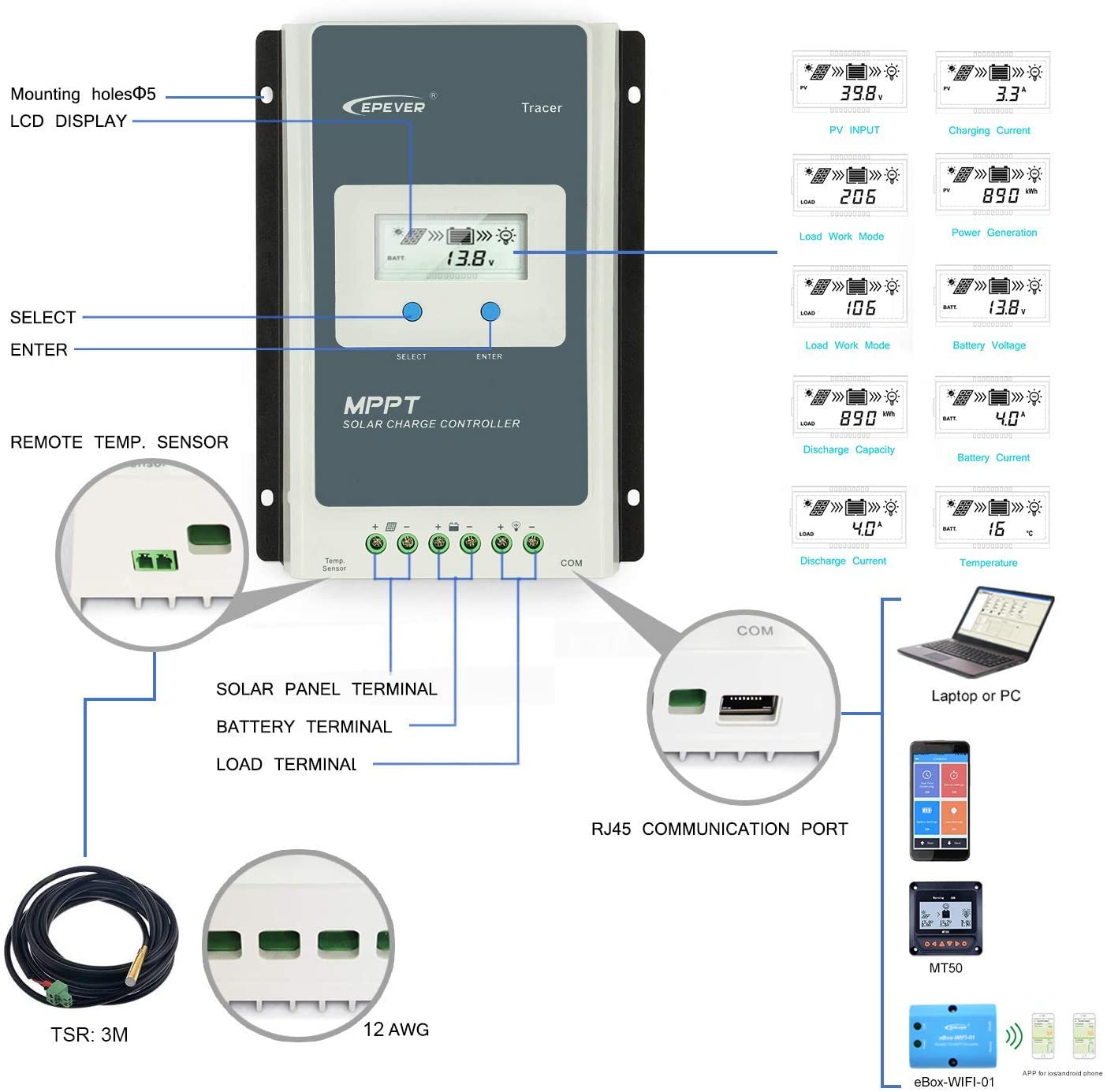

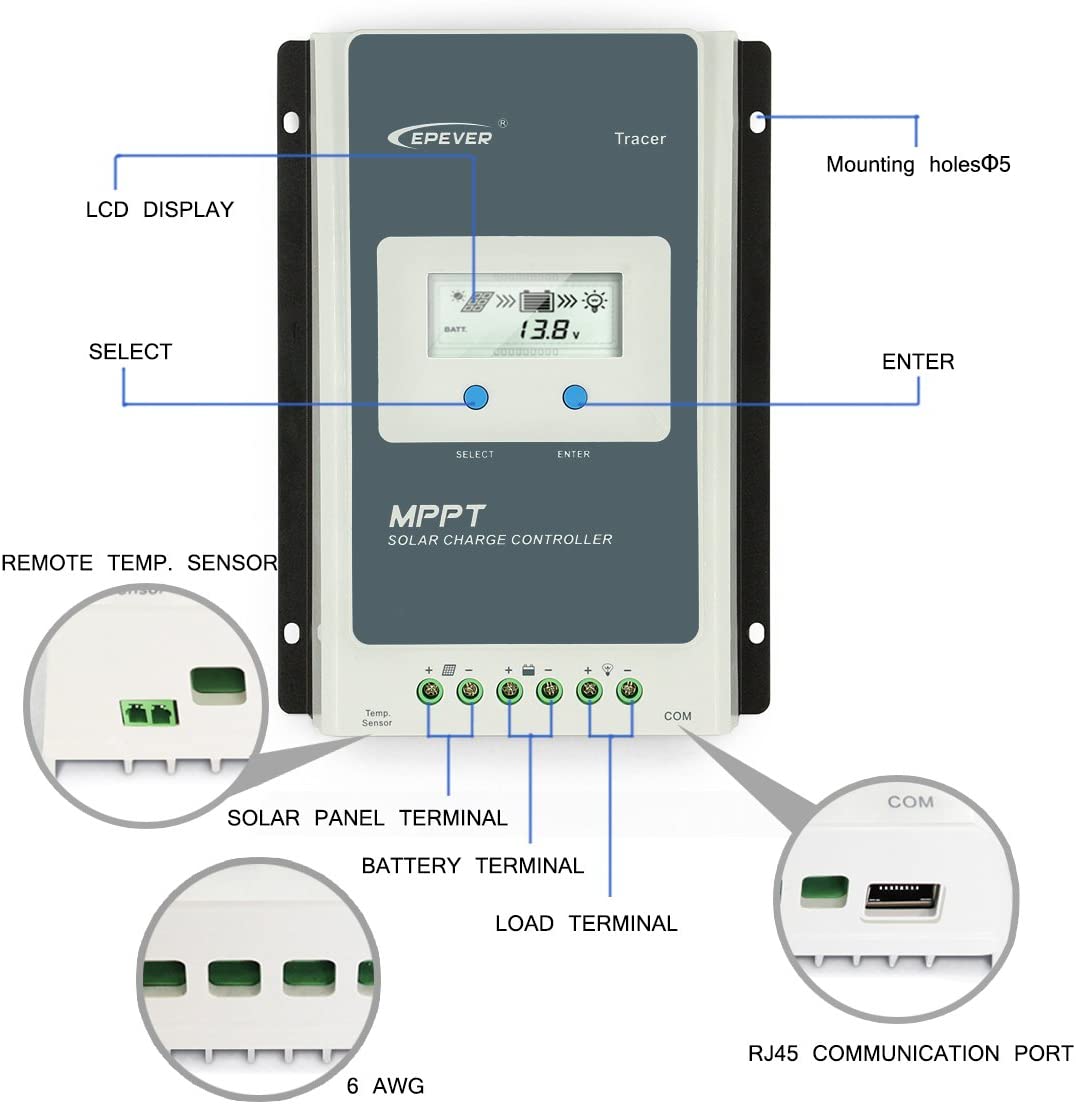

LCD Display for Dynamic Solar Charge Controller Monitoring
PC Monitoring and External Display Support
Charging Power and Current Limitation Function
User Programmable for Battery Types and Load Control
Multiple Protection Features Solar Charge Controller
Additional Features: Blacklight LCD Display, Common Negative Ground, Support for Lithium Battery
Specification:
Rated Charge Current: 40A
Solar Charge Controller Max Input Power: 12V @ 520W | 24V @ 1040W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C)
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V - 32V Solar Charge Controller
