40A MPPT Solar Charge Controller - 12V/24V Solar Battery Regulator

40A MPPT Solar Charge Controller – 12V/24V Solar Battery Regulator with Bluetooth Monitoring Support

Maximise the performance of your solar power system with this advanced MPPT Solar Charge Controller. Designed for efficient energy conversion and intelligent battery management, this MPPT Solar Charge Controller helps improve charging efficiency while protecting your batteries and solar equipment.

Suitable for both 12V and 24V solar systems, this MPPT Solar Charge Controller automatically adjusts to system voltage and supports a wide range of battery types. Customisable charging parameters allow this MPPT Solar Charge Controller to be configured for different battery technologies, providing flexibility for residential, commercial, off-grid, and mobile solar applications.

Featuring advanced Maximum Power Point Tracking technology, this MPPT Solar Charge Controller maximises energy harvesting from solar panels and improves charging efficiency compared to traditional PWM controllers. The intelligent charging algorithm helps extend battery lifespan while maintaining reliable charging performance.

Built-in protection systems safeguard your solar installation from reverse polarity, overcharging, over-discharging, overload conditions, and short circuits. The included temperature monitoring support allows the MPPT Solar Charge Controller to optimise charging performance based on battery temperature.

For enhanced system management, an optional Bluetooth module can be connected to the MPPT Solar Charge Controller, allowing remote monitoring, historical data review, and system adjustments through a smartphone application.

Features

• 40A MPPT Solar Charge Controller
• Supports 12V and 24V battery systems
• Maximum Power Point Tracking technology
• High-efficiency solar energy conversion
• Customisable battery charging parameters
• Optional Bluetooth monitoring support

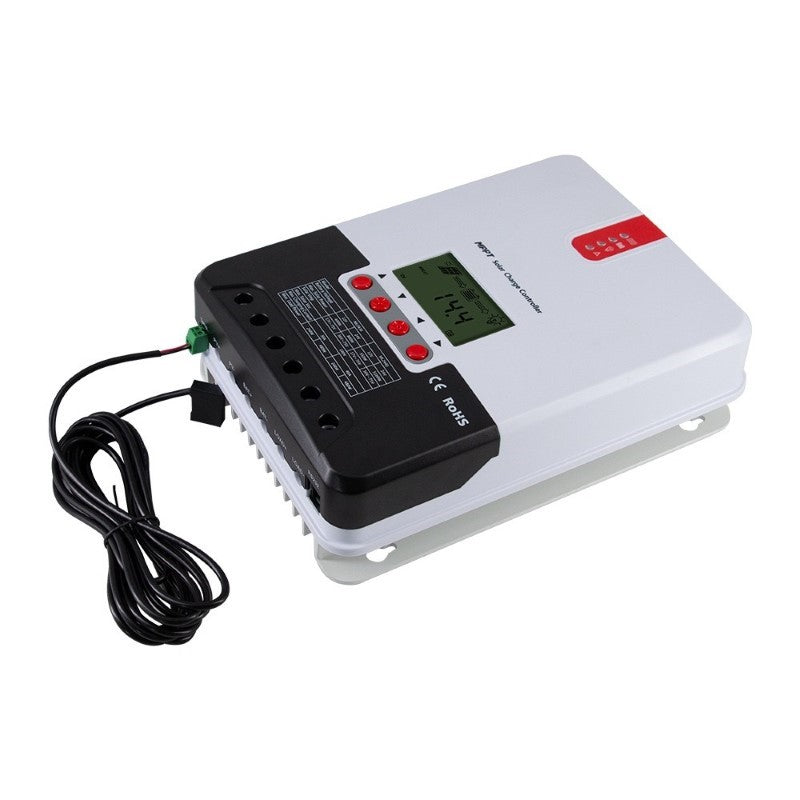

• Built-in battery temperature monitoring
• Reverse polarity protection
• Overcharge and over-discharge protection
• Overload and short-circuit protection
• Low self-consumption design
• Suitable for off-grid and solar energy systems

Specifications

• Product Type: MPPT Solar Charge Controller
• Model Series: ML Series
• System Voltage: 12V / 24V Auto Recognition
• Maximum Solar Open Circuit Voltage (VOC): 100V DC
• Maximum Solar Voltage (VMP): 75V DC
• DC-DC Conversion Frequency: 40 kHz
• Solar Input Power: 550W (12V System), 1100W (24V System)
• Rated Charge Current: 40A
• Rated Load Current: 20A
• Self Consumption: Less than 10mA
• Operating Temperature: -35°C to 45°C
• Protection Rating: IP32
• Communication Interface: RS232
• Dimensions: 23.8 × 17.3 × 7.2 cm
• Weight: 2 kg

Package Includes

• 1 × 40A MPPT Solar Charge Controller
