MPPT Solar Charge Controller 60A

Optimize Your Solar Power System with the MPPT 60AMP Solar Charge Controller

Maximize the output of your solar panel and seamlessly connect 12V, 24V, 36V, or 48V batteries with the versatile MPPT 60AMP Solar Charge Controller. This intelligent DC to DC converter enhances efficiency by up to 30%, outperforming PWM controllers. Perfect for adjusting voltage and current to match the connected battery, it ensures optimal power utilization.

Features:

• Intelligent maximum power point tracking technology
• High-performance internal DSP controller
• Automatic battery voltage detection (12V / 24V / 36V / 48V)
• Three-stage charging optimizes battery performance
• Multifunctional LCD screens for easy monitoring
• Solar panel reverse polarity protection
• Overcharge protection for battery longevity
• Easy installation with lightweight and sleek aluminum alloy case
• Built-in fan for efficient heat dissipation

Specifications:

• Product: MPPT Solar Charge Controller 60A
• Cover Material: Aluminium Alloy
• Charge: 3 stages - Constant Current (MPPT), Constant Voltage (suction voltage), Floating charge
• System Type: DC12V / 24V / 36V / 48V Recognition Automatically
• Soft Start Time: ≤ 1 S
• Dynamic Response and Recovery Time: 100us
• Overall Efficiency: ≥98.1%
• Photovoltaic Module Utilization: ≥99%
• Maximum Limit Input Voltage: DC190V

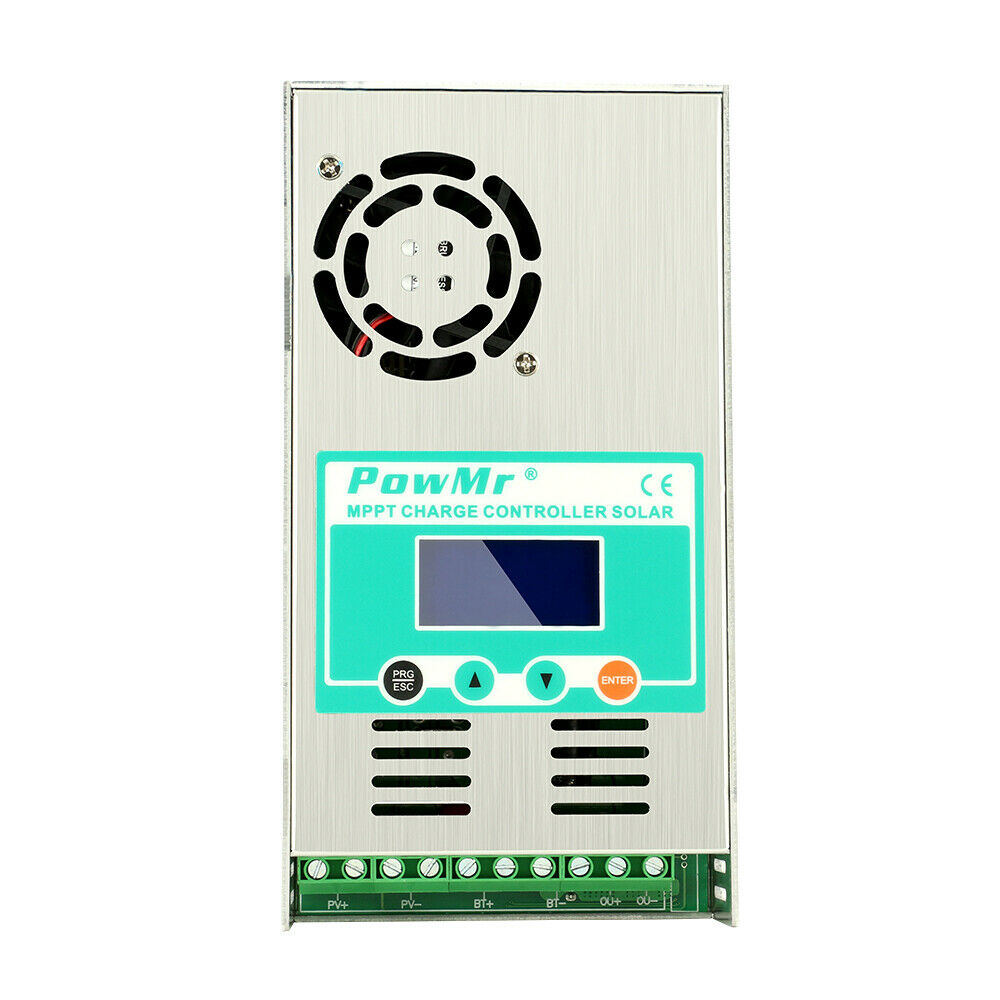

• Net Weight: 1.1 Kg
• Maximum PV Input Power:
  • 12V system (720W)
  • 24V system (1440W)
  • 36V system (2100W)
  • 48V system (2800W)

Package Includes:

• 1 x MPPT Solar Controller 60A
• 1 x Set Of Mounting Accessories
• 1 x User Manual

Upgrade your solar power system with the MPPT 60AMP Solar Charge Controller - the smart choice for efficient, adaptable, and reliable energy management.
