Description

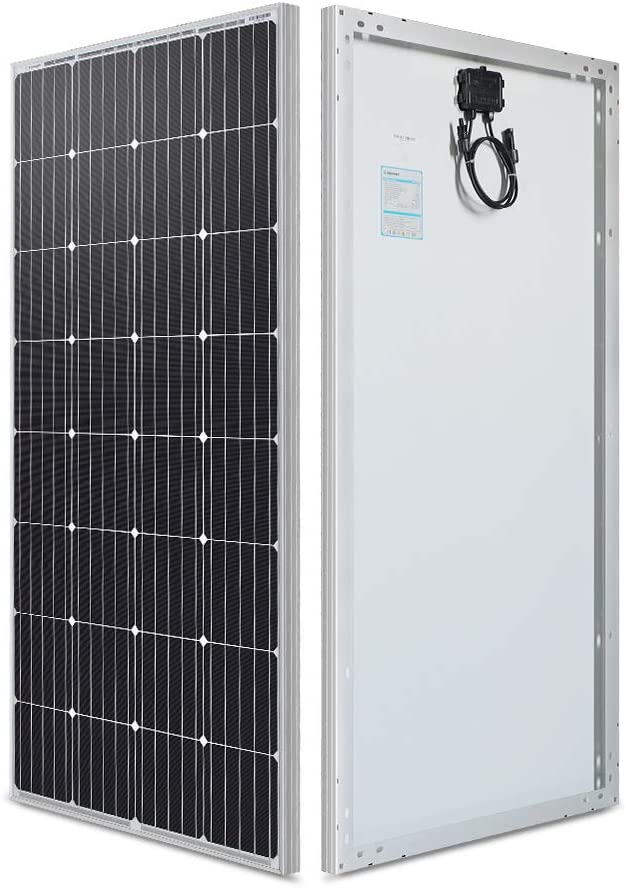

150W Mono-crystalline Solar Panel
Harness the power of the sun with the high-efficiency 150W Mono-crystalline Solar Panel. Manufactured with premium A-grade Trinasolar® mono-crystalline cells, this solar panel is designed for durability and maximum energy output.
Key Features:
- High Efficiency: Utilizes A-grade Trinasolar® mono-crystalline cells for efficient energy conversion.

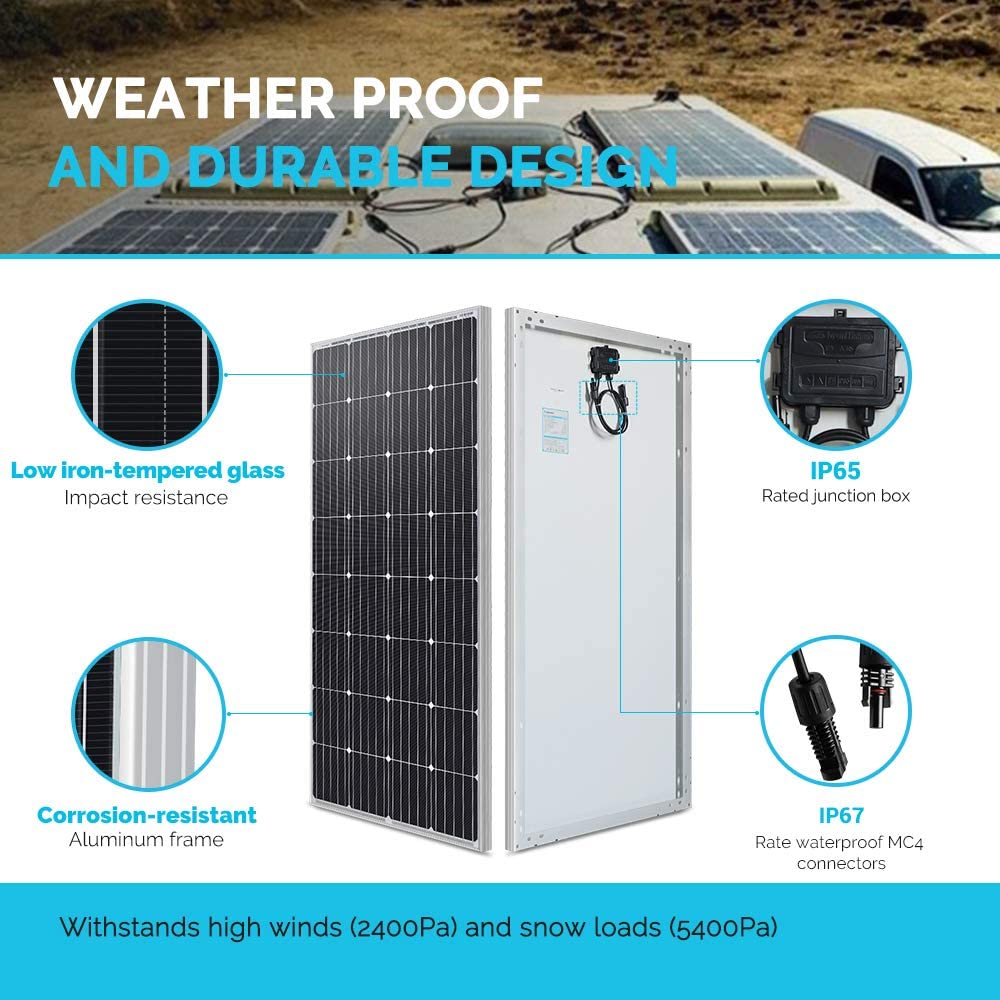

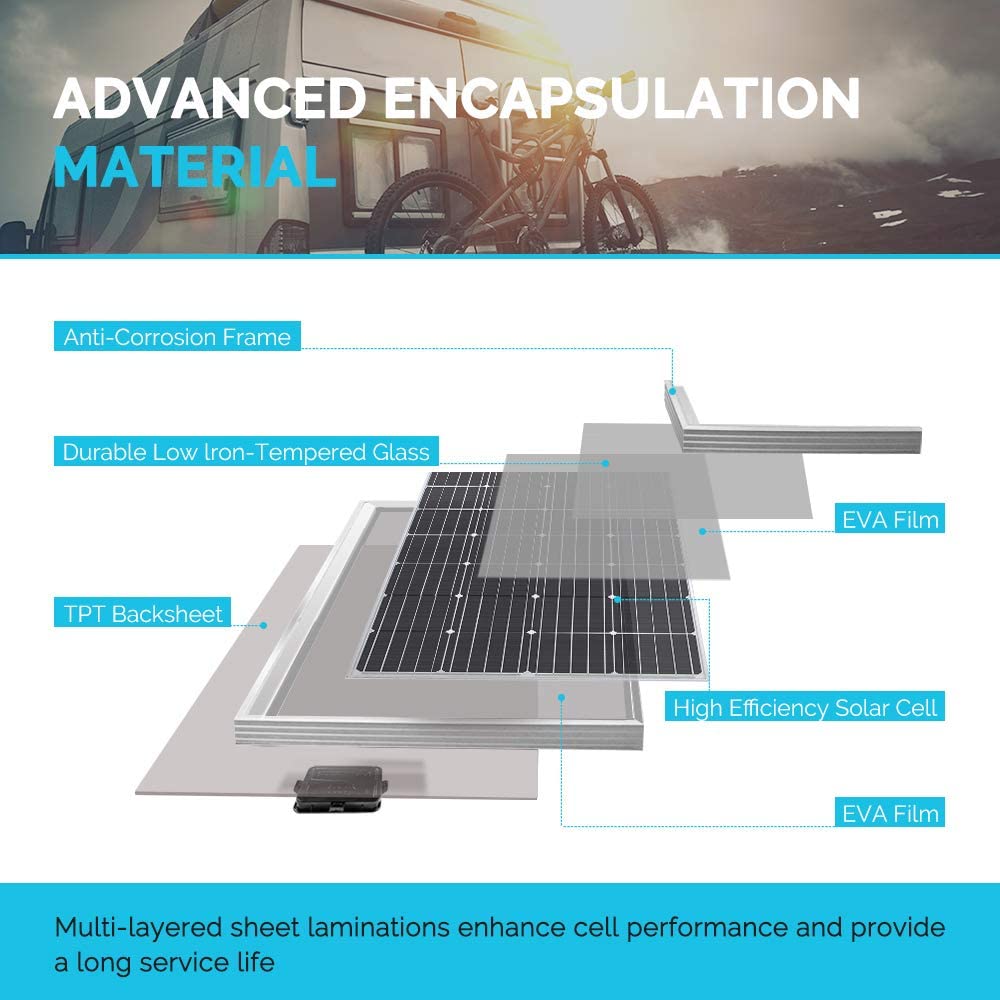

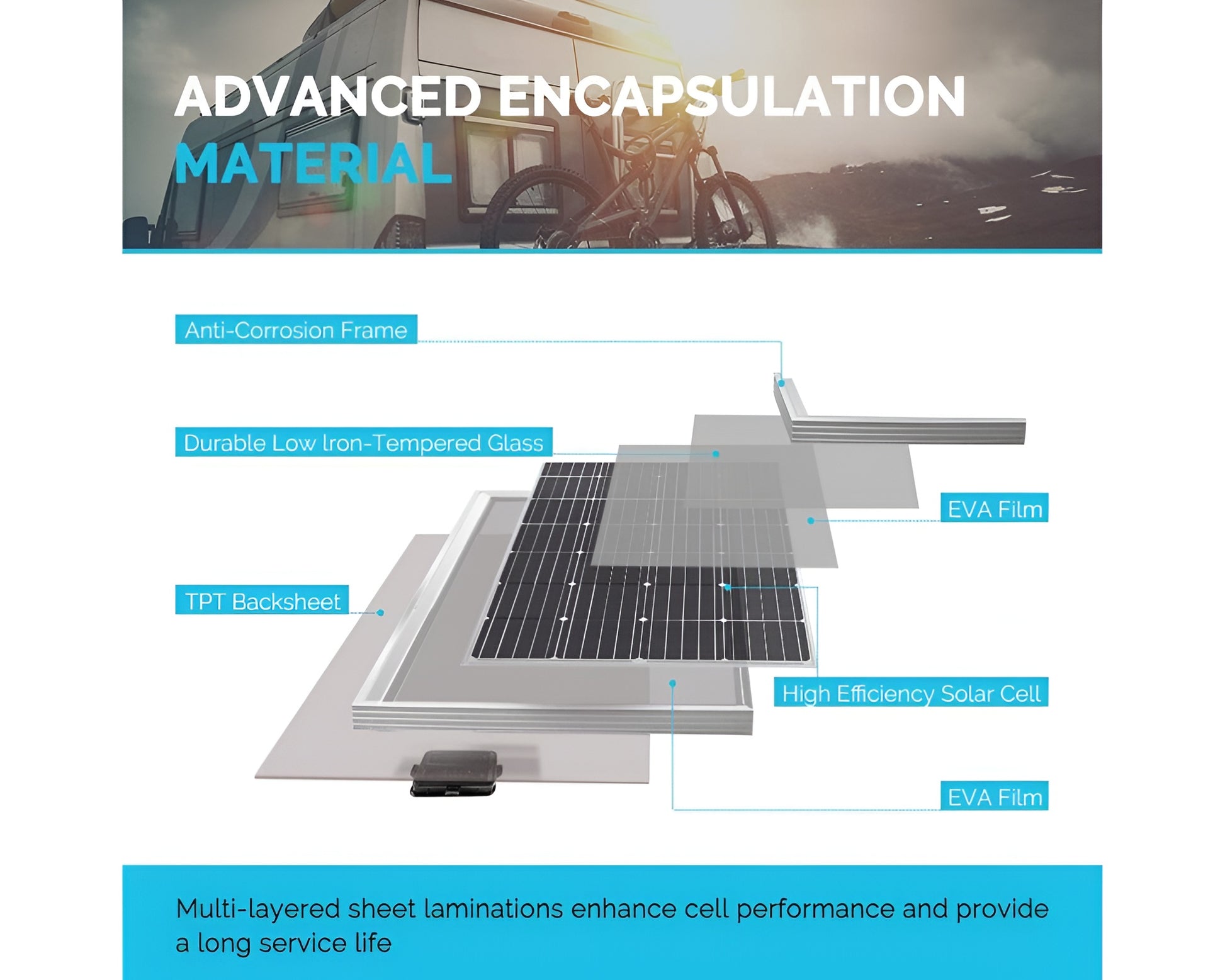

- Durable Construction: Heavy-duty aluminum frame and 3.2mm tempered glass ensure durability and withstands wind loads up to 2400 Pascal and snow loads up to 5400 Pascal.

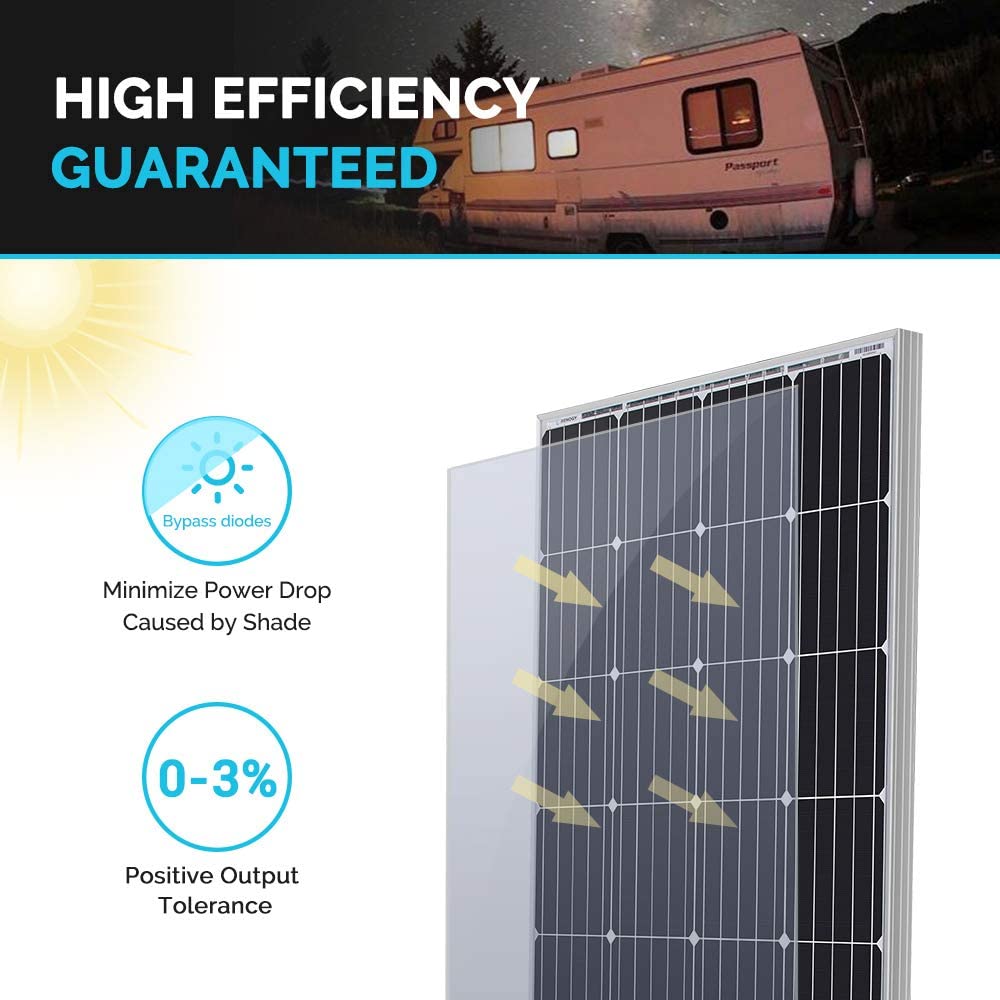

- Weatherproof: IP65-rated junction box with built-in bypass diode provides weather-tight seal and protection against partial shading.
- Easy Installation: Comes with MC4 solar panel connectors pre-crimped onto 900mm cables for easy connectivity.
-
Specifications:
- Power: 150W
- Voltage: 12V to 18V
- Open Circuit Voltage: 22.65V
- Short Circuit Current: 9.06A
- Rated Current: 8.36A
- Cell Efficiency: 20.50%
- Module Efficiency (STC): 18.47%
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 1480 x 680 x 40 mm
- Weight: 12 kg
Packaging Includes:
- 1 x 150W Mono-crystalline Solar Panel
Enhance your renewable energy setup with the 150W Mono-crystalline Solar Panel, ideal for off-grid or grid-tied applications, residential, commercial, and industrial projects.
