50 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

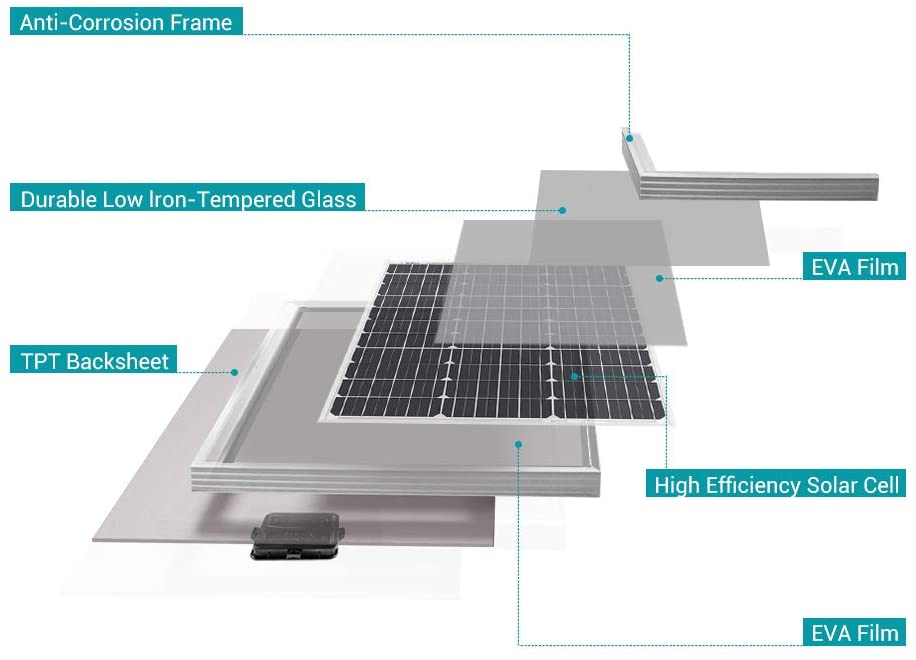

Harness the power of the sun with our reliable and durable 50W Monocrystalline Solar Panel. Designed for efficiency and longevity, it features advanced encapsulation materials and multi-layered sheet laminations that enhance cell performance and ensure a long service life.
Key Features:
Reliable Performance: EL tested solar modules with no hot-spot heating. Bypass diodes minimize power drop in shade or low-light conditions. TPT back sheet for long-term smooth performance.
Durable Construction: Corrosion-resistant aluminum frame withstands high winds (2400Pa) and snow loads (5400Pa). Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.
Versatile Applications: Suitable for ground mount installations and compatible with both on-grid and off-grid inverters.
Installation Ready: Pre-drilled holes on the back for fast mounting and grounding. Compatible with Renogy mounting systems like Z-Brackets, Pole Mounts, and Tilt Mounts.
Specifications:
Waterproof: IP65 rated junction box
Glass: 3.2mm tempered glass
Max. Power (Pmax): 50W +/- 3%
Max. Power Voltage (Vmp): 17.5V
Max. Power Current (Imp): 2.85A
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 3.23A
Max. System Voltage: 1000V
Max. Series Fuse Rating: 10A
Dimensions: 640 x 570 x 30mm
Weight: 4kg
Package Includes:
1 x High-Efficiency 50W Solar Panel Monocrystalline

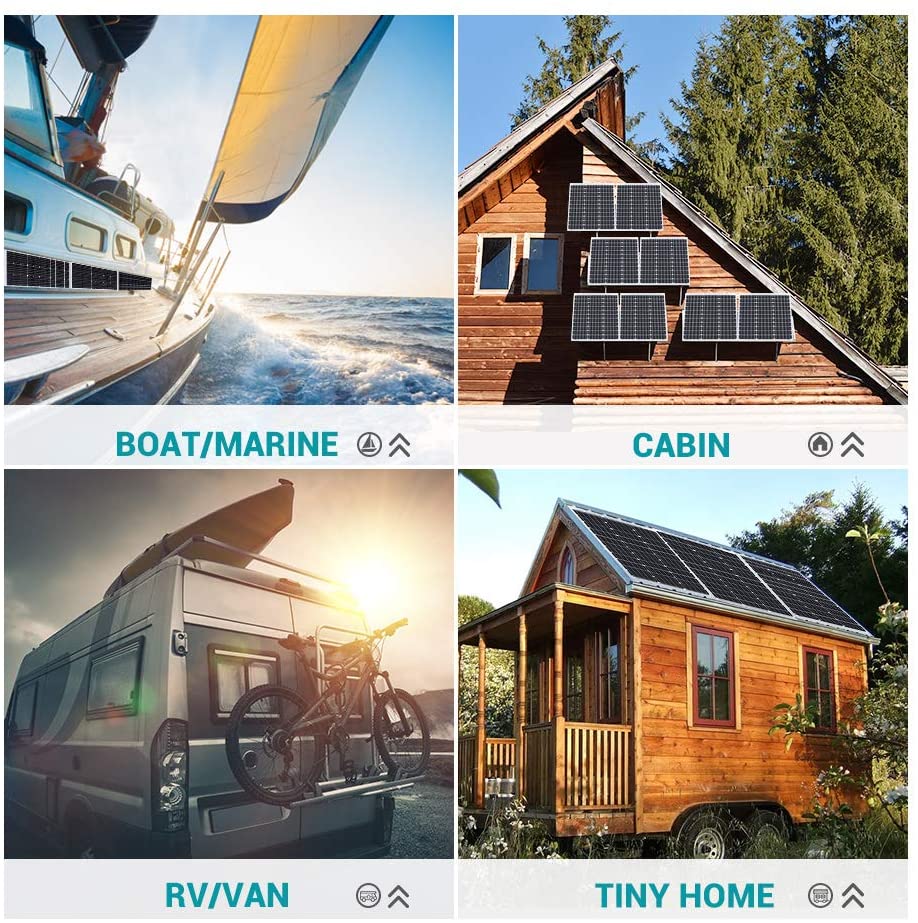

Whether you're looking to power a remote cabin, RV, or a small off-grid setup, our compact and efficient 50W solar panel is your reliable solution for sustainable energy generation.
