LiFePO4 Battery Charger DC 10-36V to 43.8V 10A

LiFePO4 Battery Charger DC 10-36V to 43.8V 10A 438W DC DC Converter IP65

Charge compatible lithium batteries with the LiFePO4 Battery Charger, designed to convert DC 10-36V input into a regulated DC 43.8V output. Delivering up to 10A charging current and 438W output power, the LiFePO4 Battery Charger is suitable for compatible 36V nominal LiFePO4 battery systems.

The LiFePO4 Battery Charger uses synchronous rectification technology with a claimed conversion efficiency of up to 96%. Its compact aluminium alloy housing and IP65-rated construction provide protection against dust and water jets for suitable DC power installations.

Equipped with intelligent electrical protection functions, the LiFePO4 Battery Charger helps protect against overcurrent, abnormal voltage, short circuits and overheating. The LiFePO4 Battery Charger also features convenient LED indicators for monitoring charging status.

KEY FEATURES

43.8V 10A Output: LiFePO4 Battery Charger delivers up to 438W rated charging power.
Wide DC Input Range: Supports DC power sources from 10V to 36V.
Buck Boost Conversion: LiFePO4 Battery Charger regulates output voltage from varying DC inputs.
Up to 96% Efficiency: Synchronous rectification technology for efficient power conversion.
Intelligent Protection: LiFePO4 Battery Charger includes overcurrent, short circuit and temperature protection.
IP65 Rated Housing: Dust-tight construction resistant to water jets.

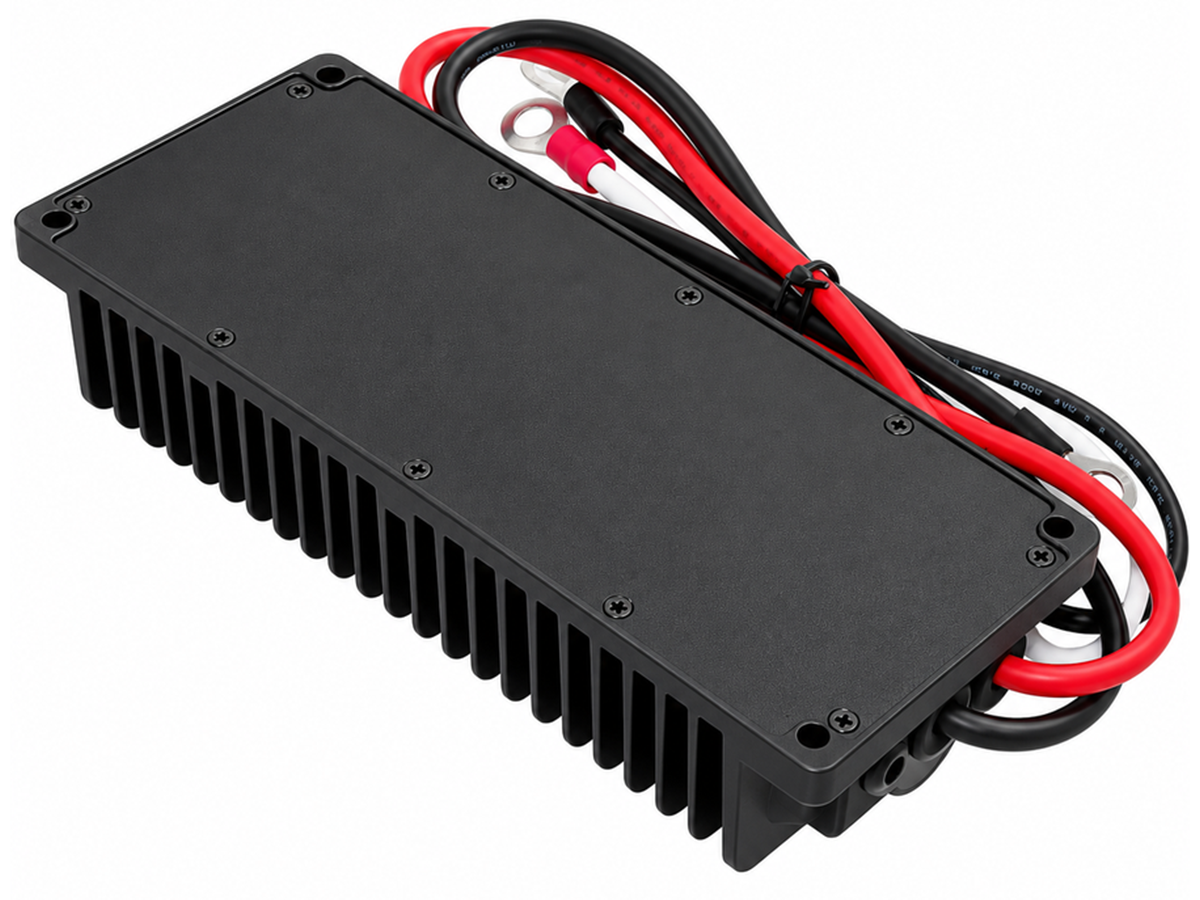

Durable Aluminium Housing: LiFePO4 Battery Charger features a compact protective enclosure.
LED Charging Indicators: Red indicates charging and green indicates full.
Compact Design: Suitable for compatible DC battery charging installations.

APPLICATION

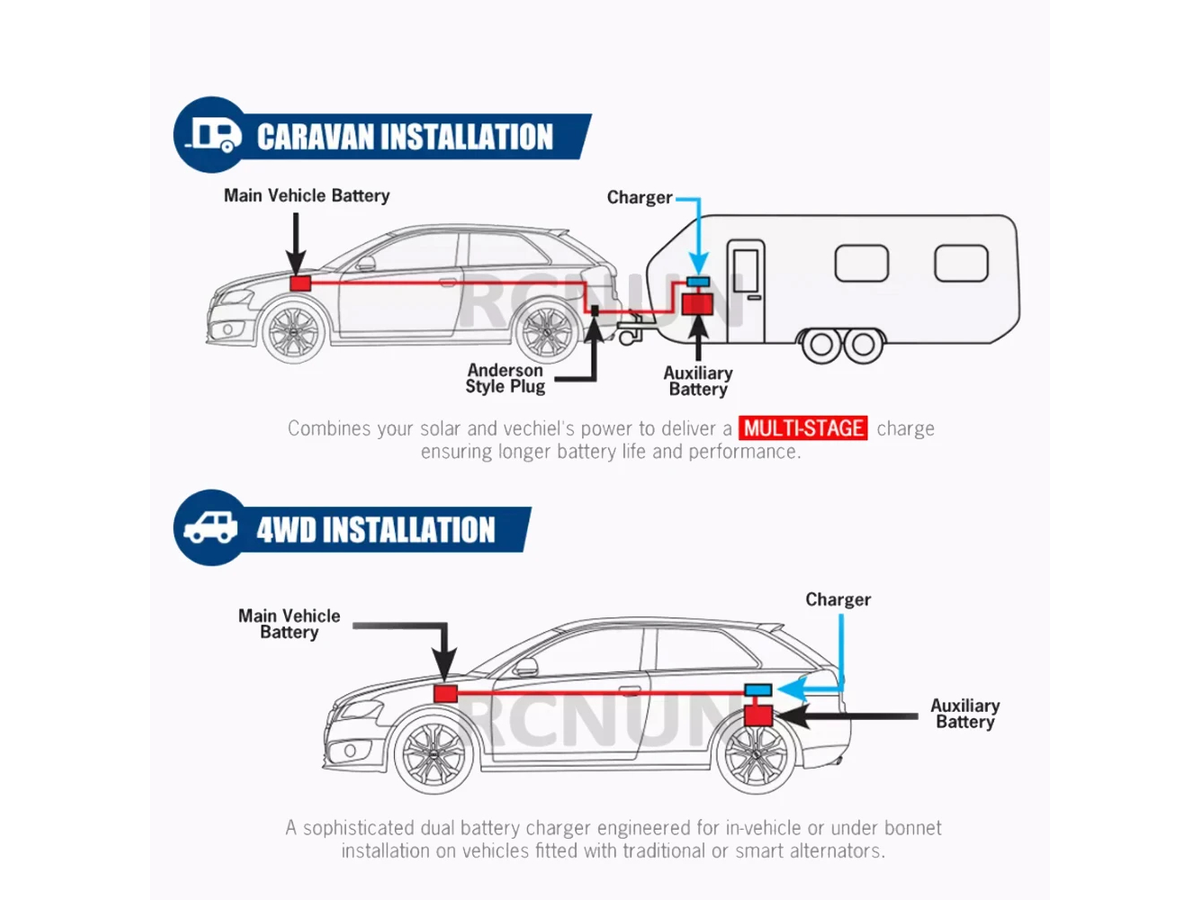

The LiFePO4 Battery Charger is suitable for compatible 36V nominal LiFePO4 battery systems, off-grid power setups and DC charging projects. The LiFePO4 Battery Charger provides a regulated 43.8V output for battery systems with matching charging requirements.

WHY CHOOSE THIS LiFePO4 BATTERY CHARGER?

The LiFePO4 Battery Charger combines a wide DC input range, 438W rated output and efficient buck boost conversion in one compact unit. With IP65 protection, aluminium construction and built-in electrical safeguards, the LiFePO4 Battery Charger offers practical charging functionality for compatible battery installations.

SPECIFICATIONS

Product: LiFePO4 Battery Charger
Input Voltage: DC 10-36V
Output Voltage: DC 43.8V
Output Current: 10A
Rated Output Power: 438W
Conversion Type: DC to DC Buck Boost
Output Type: Single
Conversion Efficiency: Up to 96%
Waterproof Rating: IP65
Housing Material: Aluminium Alloy
Operating Temperature: -30°C to +80°C
Protection: Overcurrent, Overvoltage, Low Voltage, Short Circuit, Overtemperature
LED Indicator: Red Charging, Green Full
Product Size: 20 X 7.7 X 3 cm
Product Weight: Approximately 1.1 kg
ACC Control Wire: Not Included

PACKAGE INCLUDES

1 X LiFePO4 Battery Charger 43.8V 10A Without ACC Wire

COMPATIBILITY

Confirm that your battery manufacturer's specified charging voltage, charging current and battery management system requirements match this charger's output before connecting. This is a DC-to-DC charger and is not designed for direct connection to a 230V AC mains outlet.
