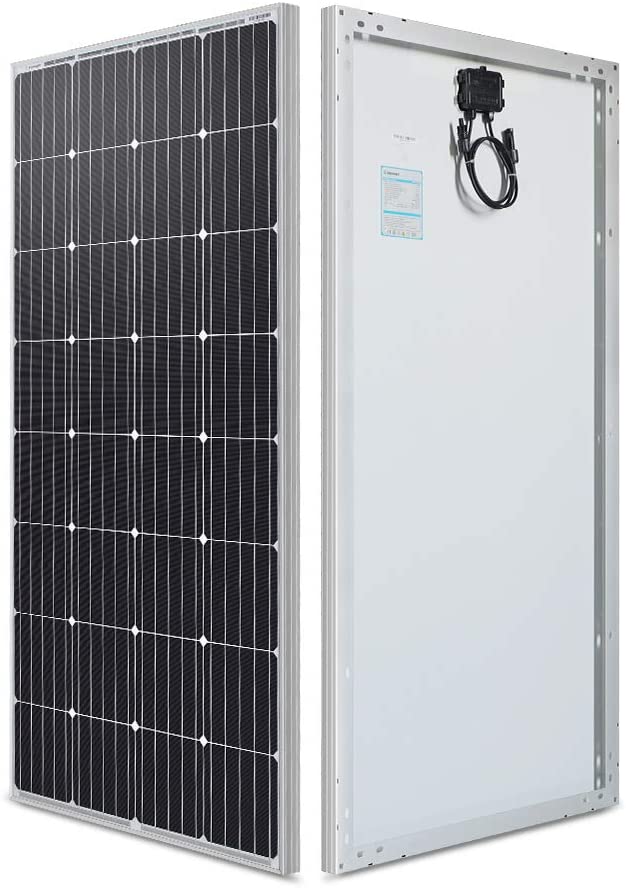

200W Mono-crystalline Solar Panel with Charge Controller
200W Mono-crystalline Solar Panel with Charge Controller

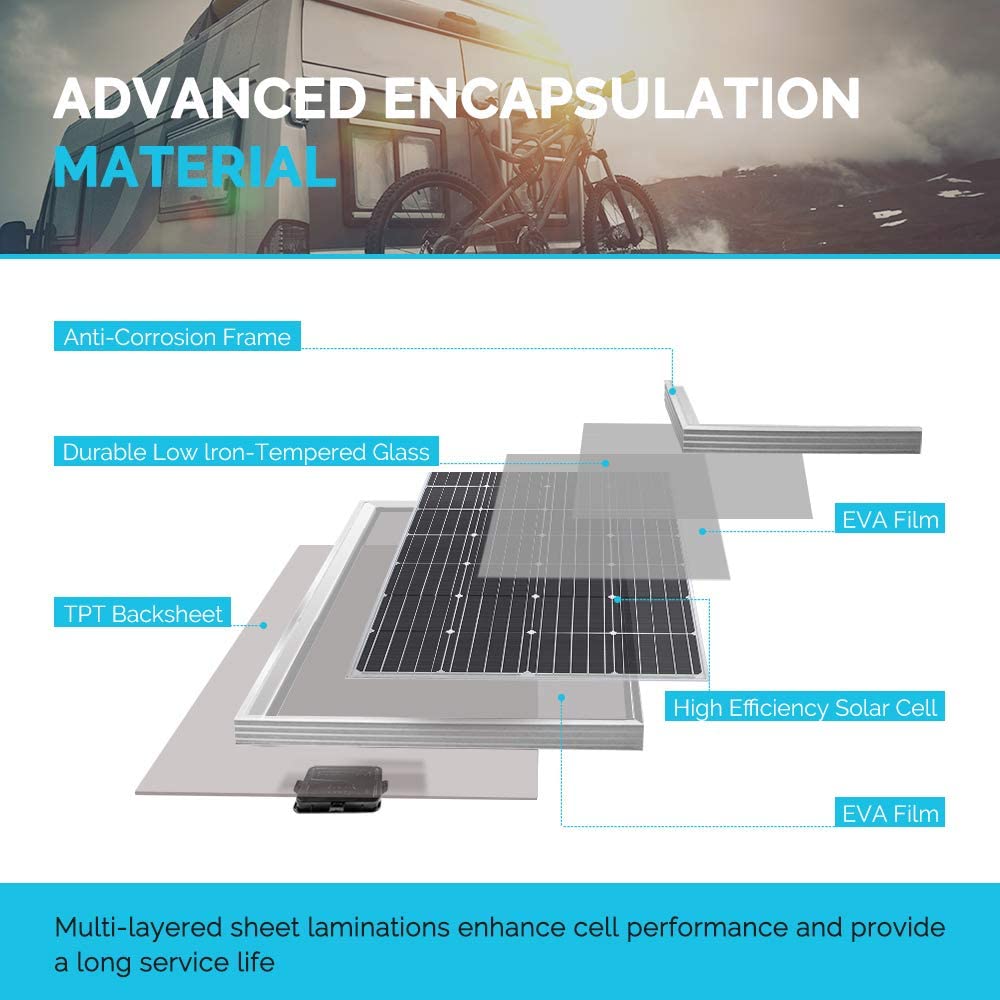

Harness the power of sunlight with the 200W Mono-crystalline Solar Panel by Trinasolar®. Built with high-efficiency A-grade mono-crystalline cells and featuring a robust design with IP65 waterproofing and tempered glass, it ensures reliable performance in various weather conditions.
Specifications:
Waterproof: IP65
3.2mm tempered glass
Max. Power (Pmax): 200W +/- 3%
Max. Power Voltage (Vmp): 36V
Max. Power Current (Imp): 5.56A
Open Circuit Voltage (Voc): 43.2V
Short Circuit Current (Isc): 6.1A
Charge Controller Specs:
2 USB Outputs: 5V 2A each
Rated Charge Current: 30A
Rated Discharge Current: 10A
Rated Voltage: Auto Detect 12/24V
Max. PV Voltage: 50V
Max. PV Input Power: 750W (12V) / 1500W (24V)
Power Tolerance: +/- 3%
Cell Efficiency: 20.50%
Module Efficiency STC: 18.47%
Operating Temperature Range: -40°C to +85°C
Cell Type: Mono-crystalline Trinasolar®
Maximum System Voltage: 1000V
Dimensions: 1320 x 1010 x 35mm
Weight: 13.3kg
Temperature Coefficient of Pmax: -0.435%/°C
Temperature Coefficient of Voc: -0.35%/°C
Temperature Coefficient of Isc: 0.043%/°C
Normal Operating Cell Temperature: 47°C +/- 2°C
Wind Load: 2400 Pascal
Snow Load: 5400 Pascal
Application Class: Class A

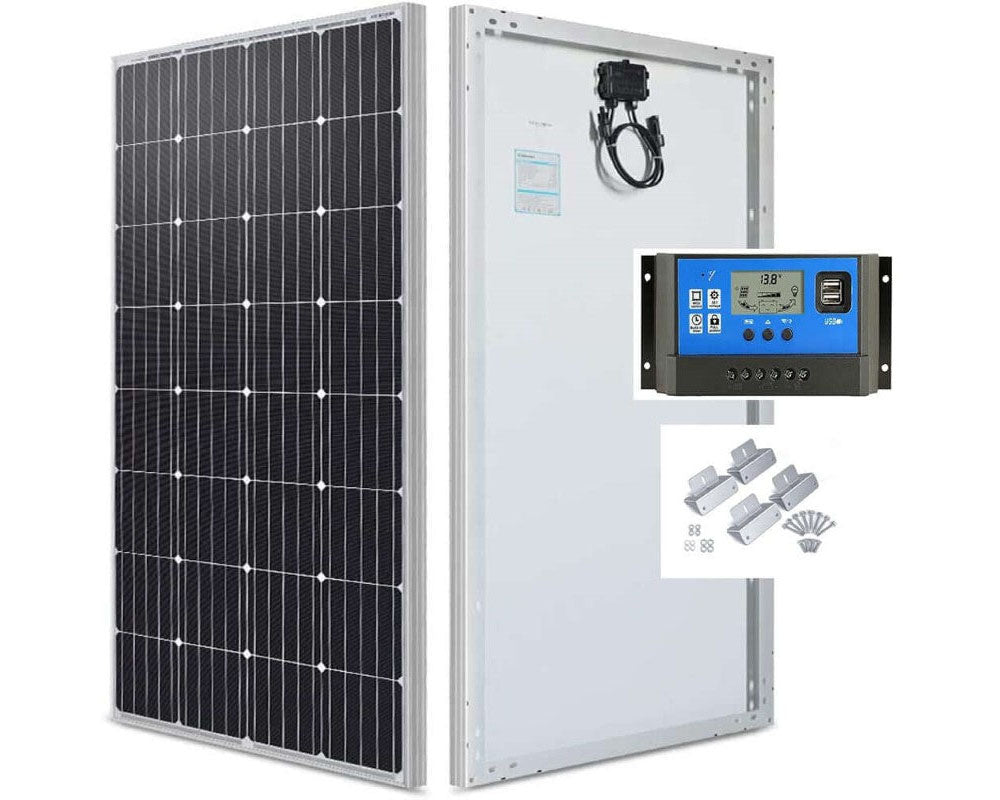

Packaging:
1 x Solar Panel 200W
4 x Bracket
12 x Screw Kit
1 x Solar Controller
We also offer a range of other wattages: 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, 320W. Please check our store for more options.
