Solar Panel 120W Monocrystalline Solar Panel
Solar Panel 120W Monocrystalline Solar Panel
Regular price
$115.49 NZD
Regular price
$144.37 NZD
Sale price
$115.49 NZD
Taxes included.

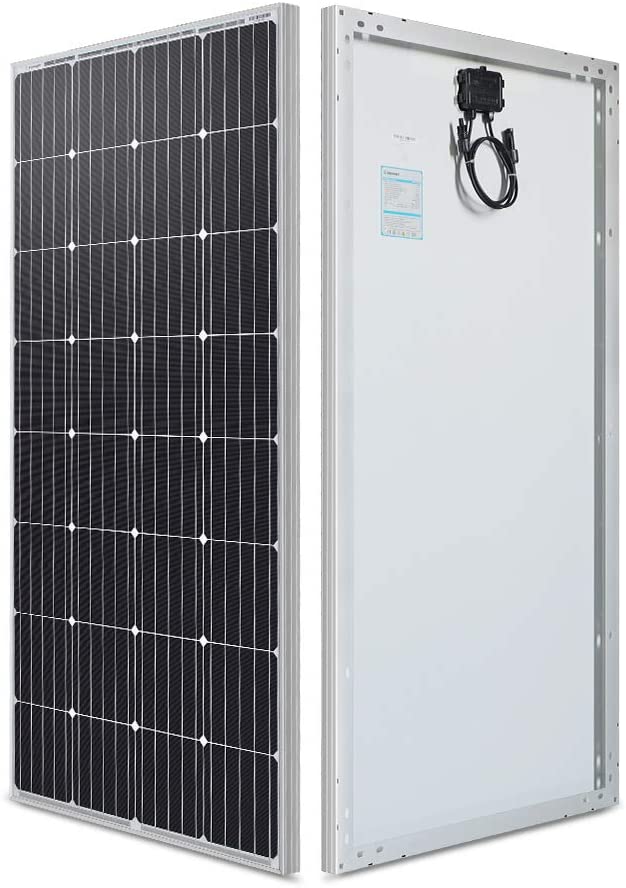

120W Monocrystalline Solar Panel
120W Monocrystalline Solar Panel
Upgrade your energy solutions with our high-efficiency 120W Monocrystalline Solar Panel. Manufactured with A-grade Mono-crystalline Trinasolar® cells, this panel ensures optimal performance and durability. Designed for a wide range of applications, it comes with a weather-tight junction box and standard MC4 connectors for ease of use in any environment.
Features:
- High-efficiency A-grade Mono-crystalline Trinasolar® cells.
- Weather-tight junction box with an IP65 rating.
- Built-in bypass diode for added protection during partial shading.
- Supplied with 900mm cable for positive/negative connections.
- Standard MC4 connectors crimped onto each cable for easy installation.
Specifications:
- Output Power: 120W
- Operating Voltage: 18V
- Short Circuit Current: 7.19A
- Max Power Current: 6.66A
- Open Circuit Voltage: 21.6V
- Dimensions: 1080mm x 700mm x 30mm
- Weight: 7.2 kg
- Power Tolerance: ±3%
- Cell Efficiency: 20.50%
- Module Efficiency (STC): 18.47%
- Operating Temperature Range: -40°C to +85°C
- Normal Operating Cell Temperature: 47°C ± 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Application Class: Class A
- Fire Rating: Class C
Temperature Coefficients:
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
Packaging Includes:
- 1 x 120W Mono Solar Panel
We also sell 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W solar panels. Please check our store for more options.
