Features:

• Automatic Voltage Detection: 12V/24V auto switch for versatile application.
• High Charge/Discharge Current: Supports up to 20A.
• Max Solar Input: Less than 50V for compatibility with various solar panels.
• USB Output: 5V/3A for charging devices directly from the controller.
• Low Self-Consumption: Less than 10mA ensures efficient energy use.
• Wide Operating Temperature Range: Functional from -35°C to +60°C.
• Customizable Equalization: 14.4V for Sealed batteries, 14.2V for Gel batteries.
• Adjustable Float Charge: Default at 13.7V, but adjustable as needed.
• Compact Size: 150 x 78 x 35 mm (5.9 x 3.1 x 1.38 inches) for easy installation.

Specifications:

• Voltage: 12V/24V Auto
• Charge/Discharge Current: 20A
• Max Solar Input: Less than 50V
• USB Output: 5V/3A
• Self-Consumption: Less than 10mA
• Operating Temperature: -35°C to +60°C
• Equalization (Sealed): 14.4V
• Equalization (Gel): 14.2V
• Float Charge: 13.7V (Default, Adjustable)
• Size: 150 x 78 x 35 mm (5.9 x 3.1 x 1.38 inches)

Note: Ensure proper connection of the solar controller to the solar panels and battery system. Incorrect setup may cause damage or suboptimal performance. Refer to the user manual for detailed installation and configuration instructions.

Package Includes:

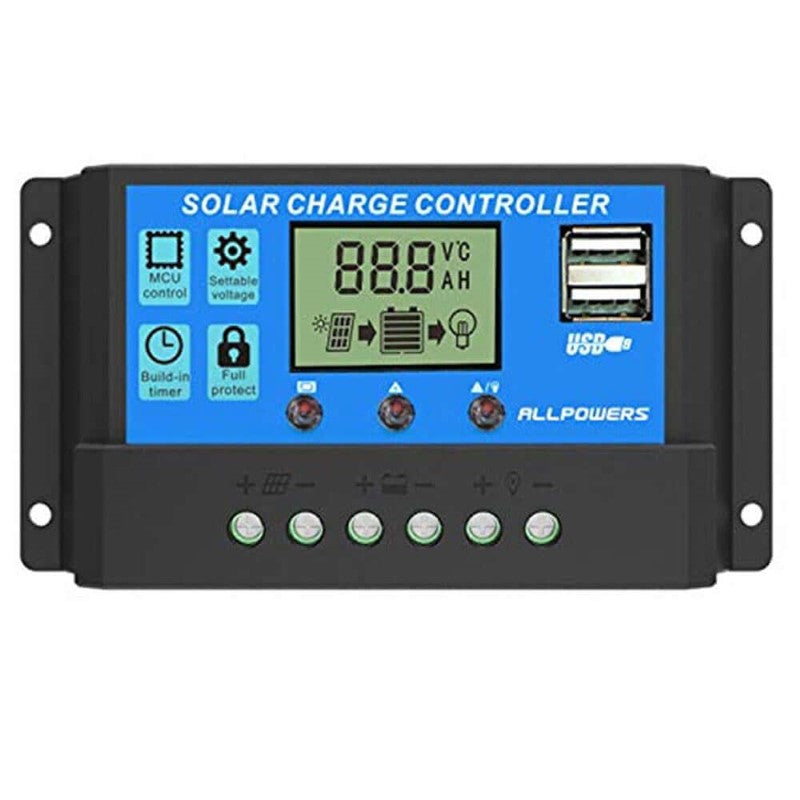

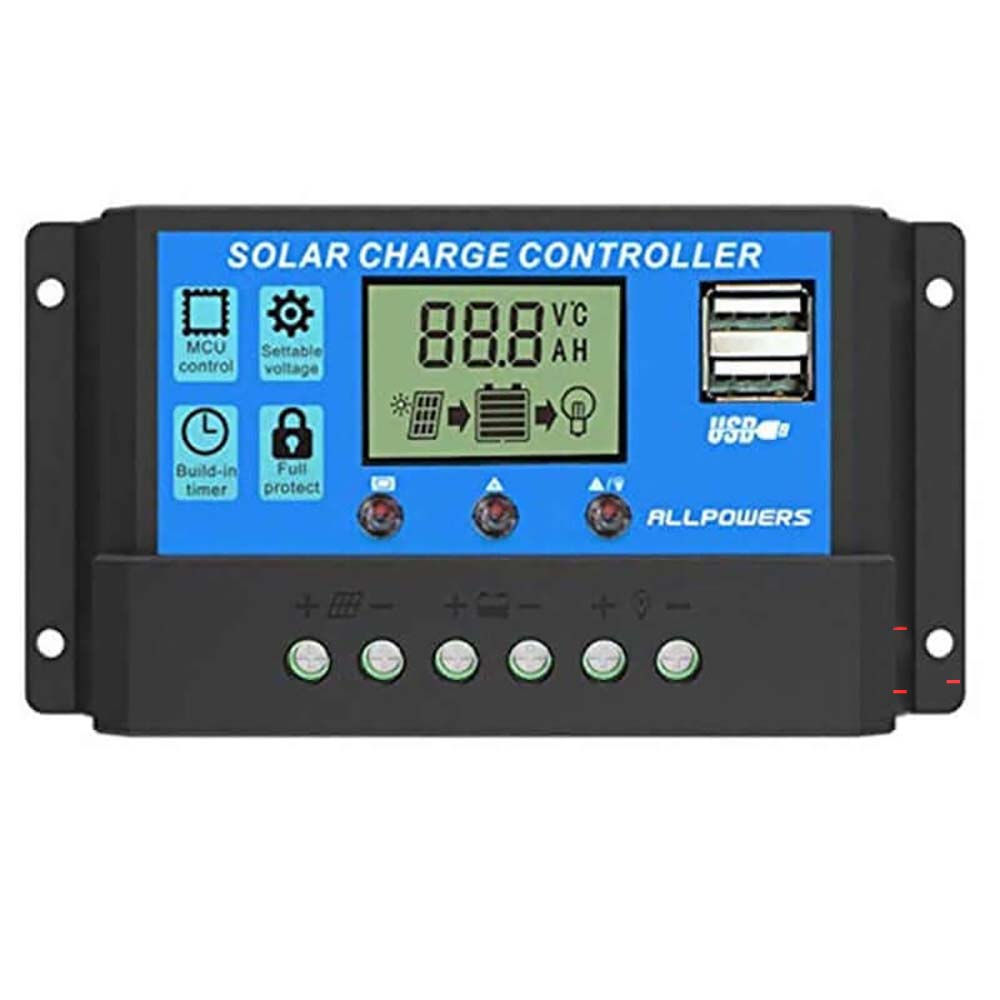

• 1 x 12V/24V PWM Solar Charge Controller
• 1 x User Manual
