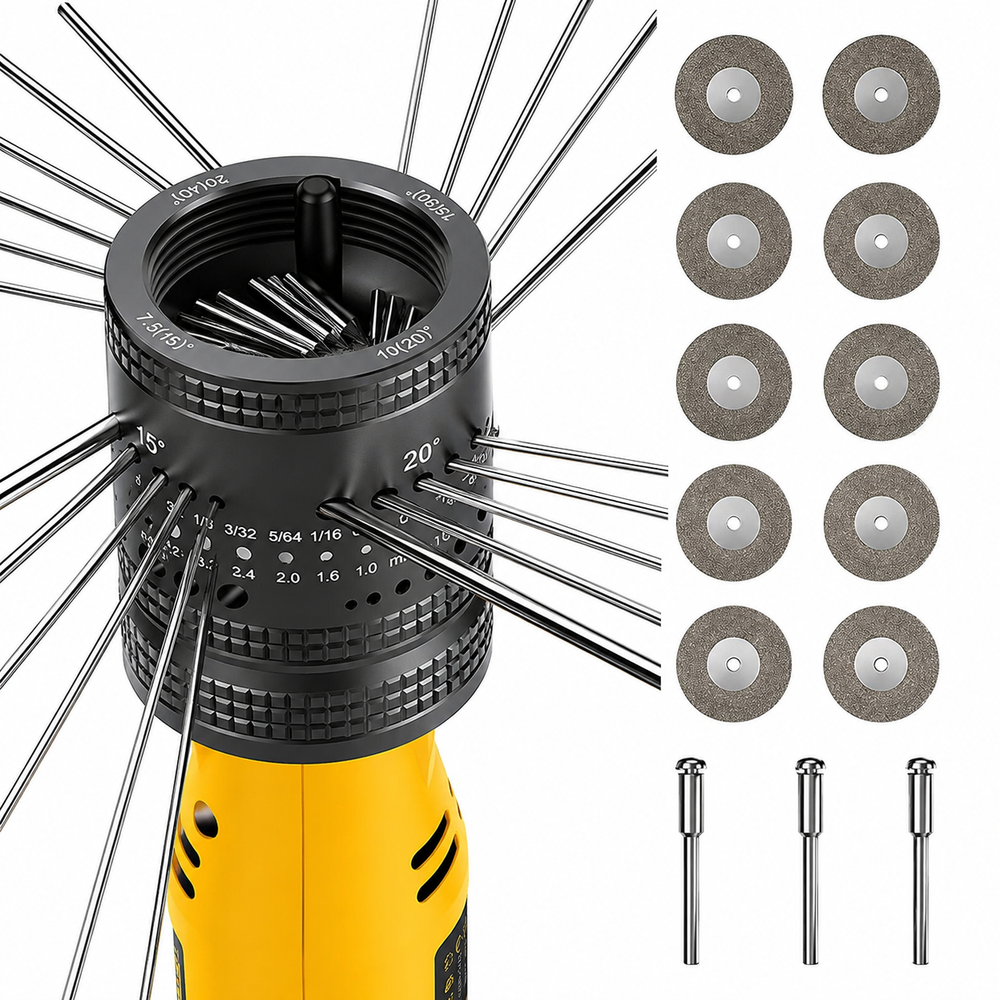

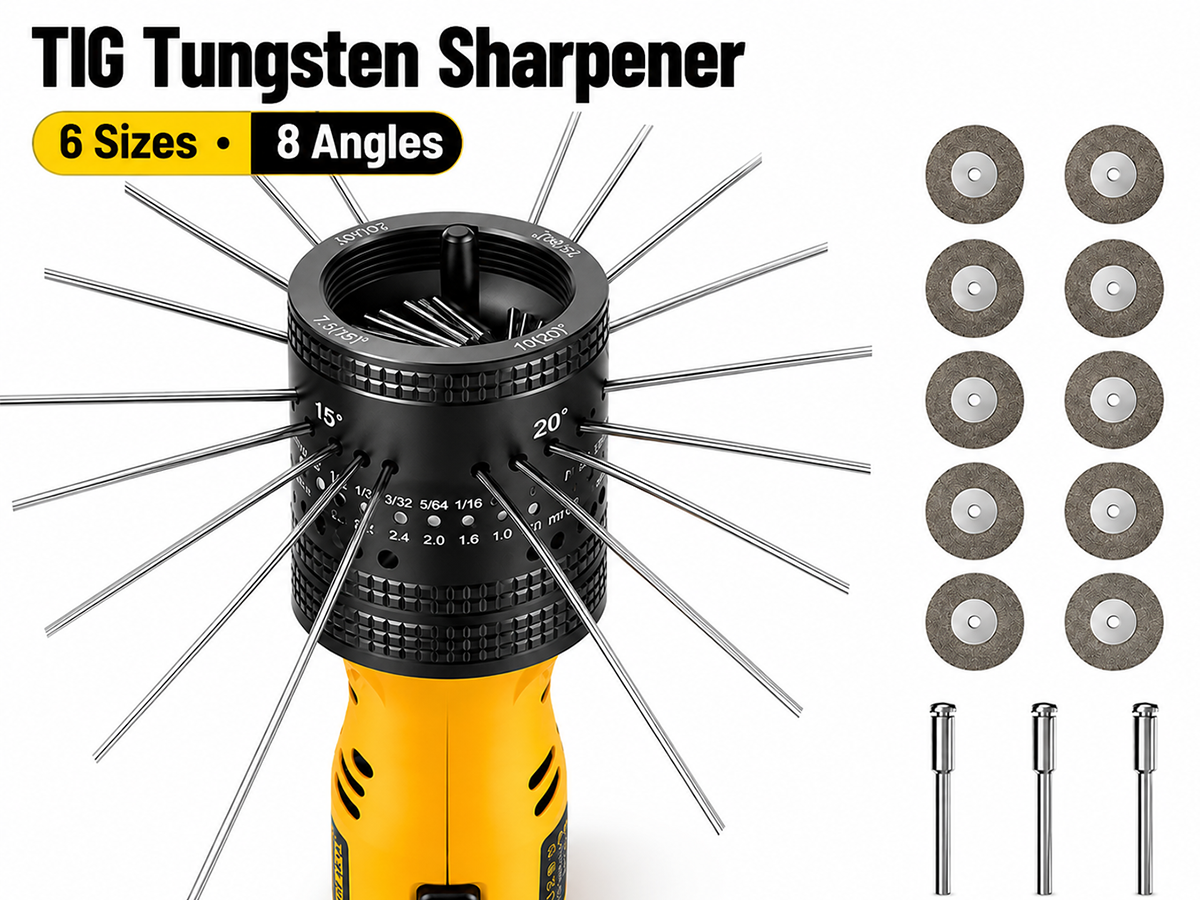

TIG Tungsten Electrode Sharpener Head with Cut Off Slot, 6 Sizes, 8 Angles, 10 Diamond Wheels and 3 CNC Mandrels

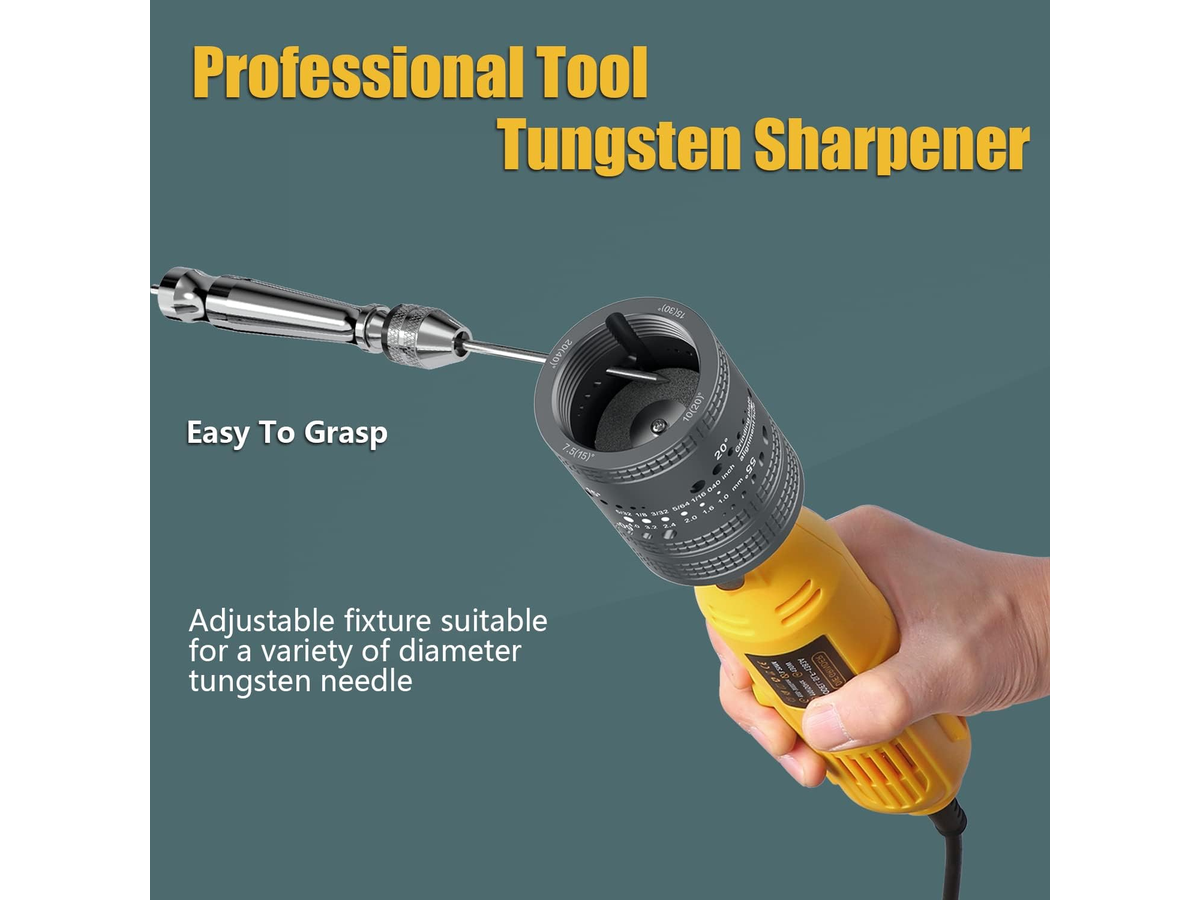

Achieve clean and consistent electrode tips with this TIG Tungsten Electrode Sharpener. Fixed guide holes help position each electrode at the selected angle, making it easier to create accurate points for TIG welding applications.

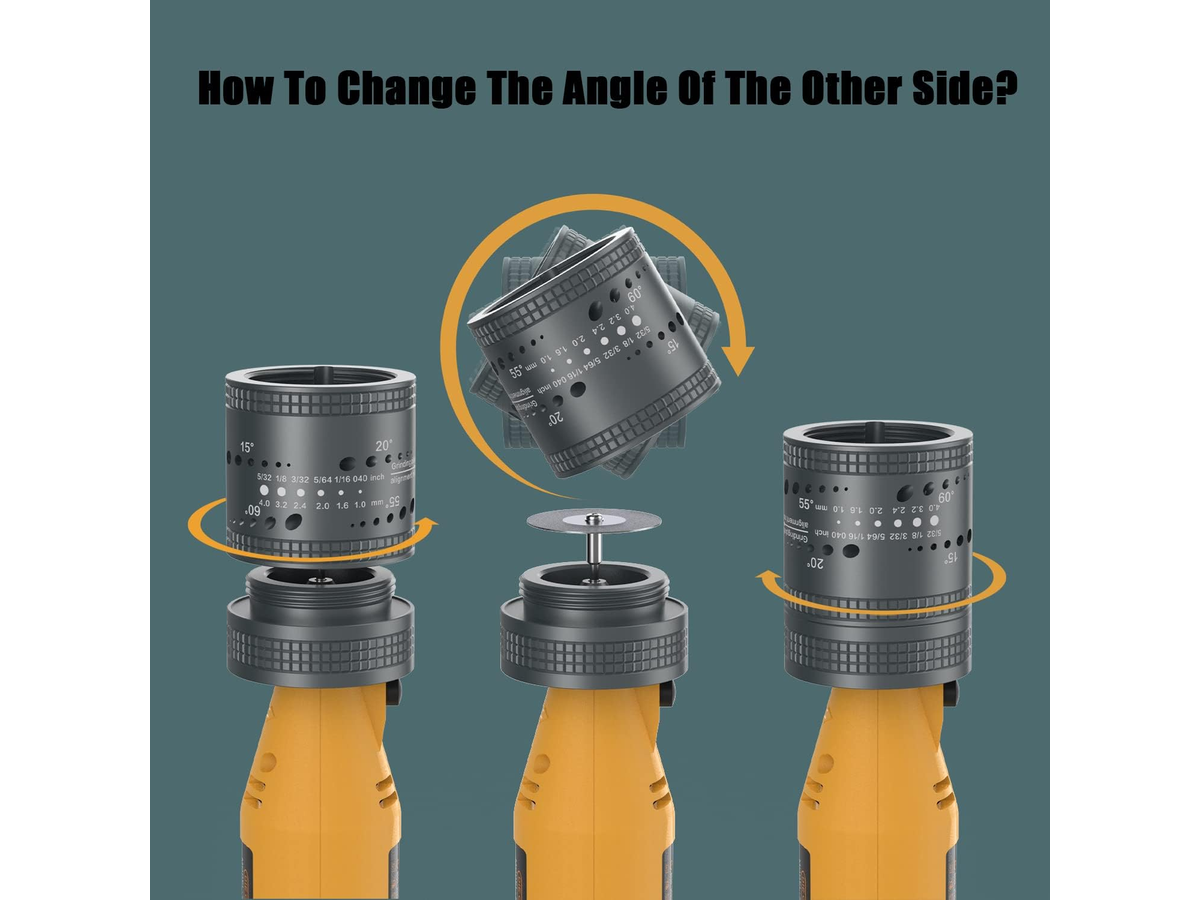

The TIG Tungsten Electrode Sharpener supports six common electrode sizes and eight preset angle settings. Built in offset compensation helps align the electrode with the centre of the diamond wheel, while the cut off slot provides convenient trimming when required.

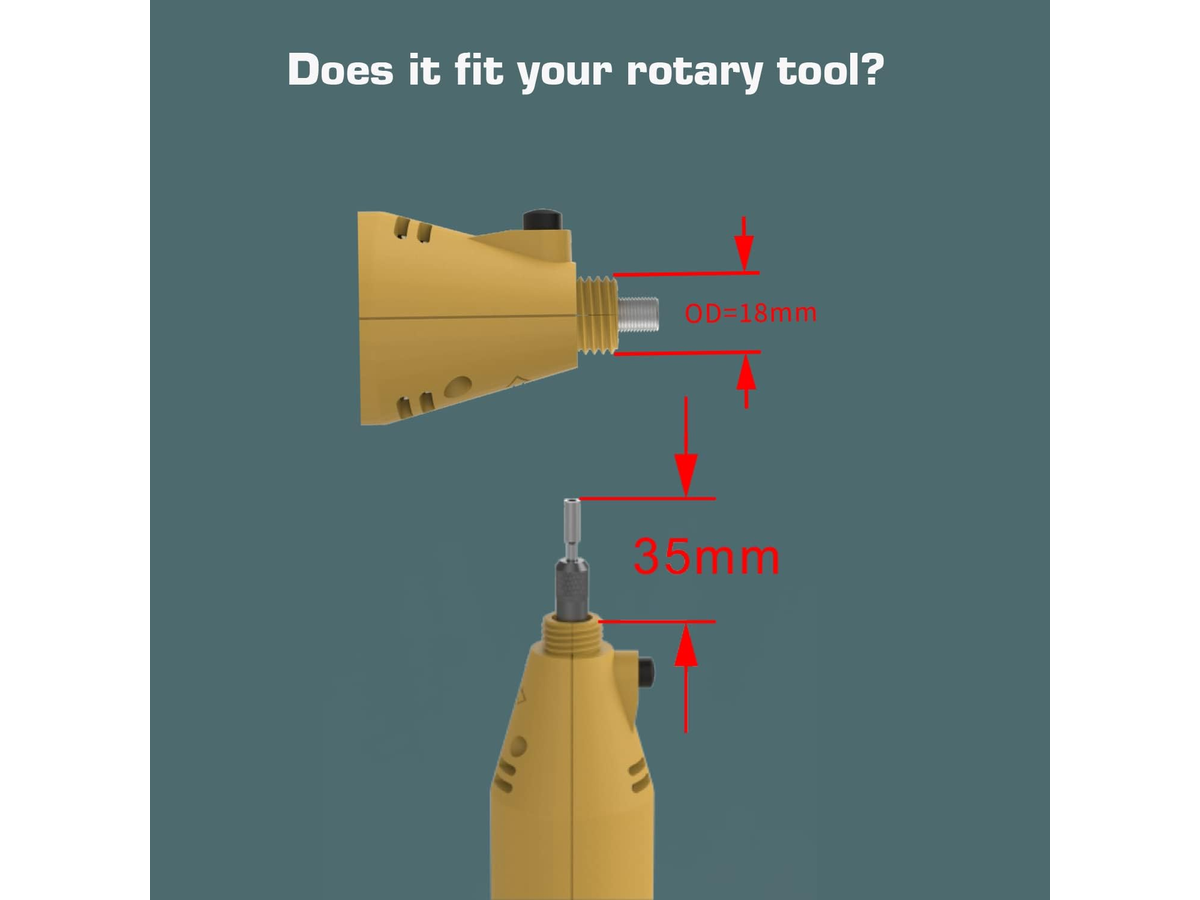

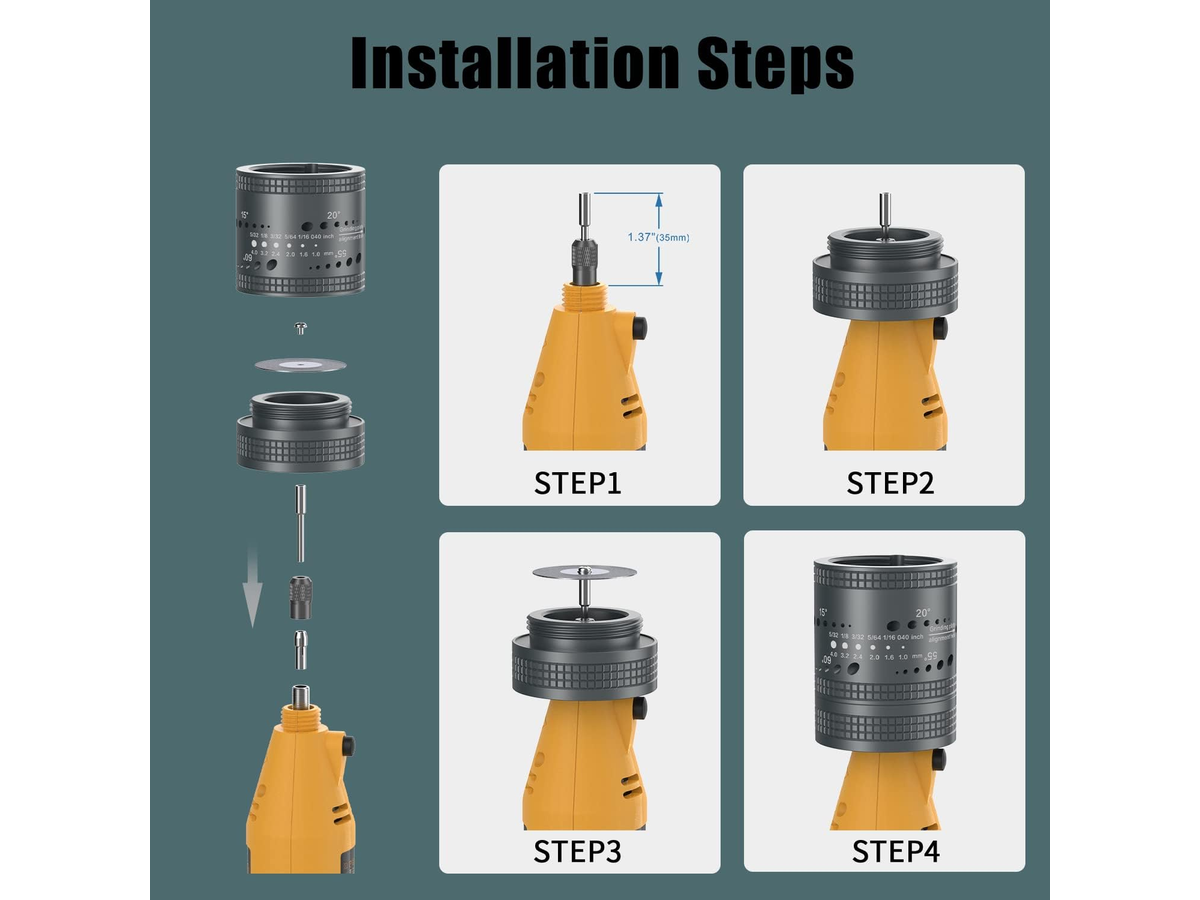

Designed for use with most compatible rotary tools, the TIG Tungsten Electrode Sharpener includes 10 double sided diamond wheels and three CNC mandrels. Please note that this package contains the sharpener head and accessories only. A powered rotary tool is not included.
Features
Precise Sharpening: TIG Tungsten Electrode Sharpener creates clean and consistent electrode tips Six Electrode Sizes: Supports diameters from approximately 1.02 to 3.97 mm Eight Angle Settings: Provides accurate preset positioning for different applications Fixed Guide Holes: Help maintain a repeatable sharpening angle Offset Compensation: Aligns the electrode tip with the wheel centre Cut Off Slot: Allows convenient electrode trimming Diamond Wheels: Includes 10 double sided wheels for extended use CNC Mandrels: Three mandrels support compatibility with suitable rotary tools Durable Construction: Metal housing supports regular workshop use Tool Not Included: TIG Tungsten Electrode Sharpener head and accessories only
Specifications

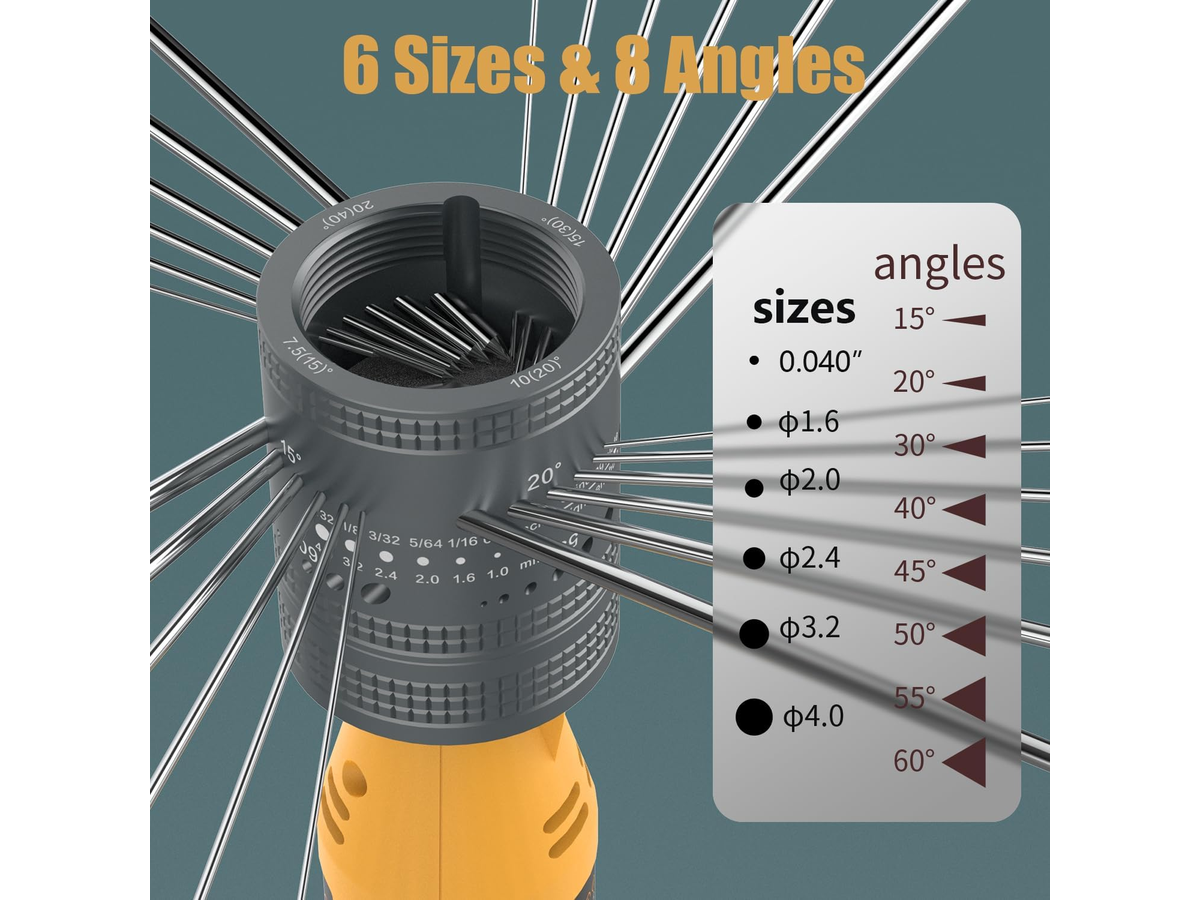

Product Type: TIG Tungsten Electrode Sharpener Head Compatible Tool: Most Suitable Rotary Tools Supported Electrode Sizes: Approximately 3.97 mm, 3.18 mm, 2.38 mm, 1.98 mm, 1.59 mm and 1.02 mm Guide Angle Settings: 7.5°, 10°, 15°, 20°, 22.5°, 25°, 27.5° and 30° Resulting Tip Angles: 15°, 20°, 30°, 40°, 45°, 50°, 55° and 60° Diamond Wheels: 10 × Double Sided Mandrels: 3 × CNC Mandrels Material: Durable Metal Application: TIG Tungsten Electrode Preparation
