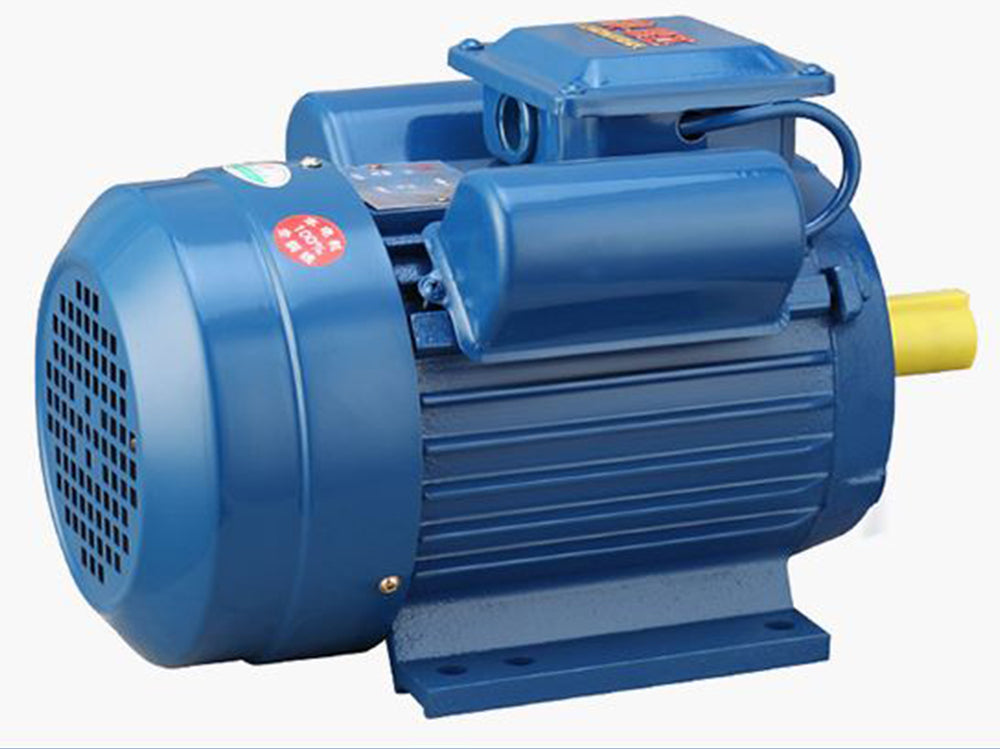

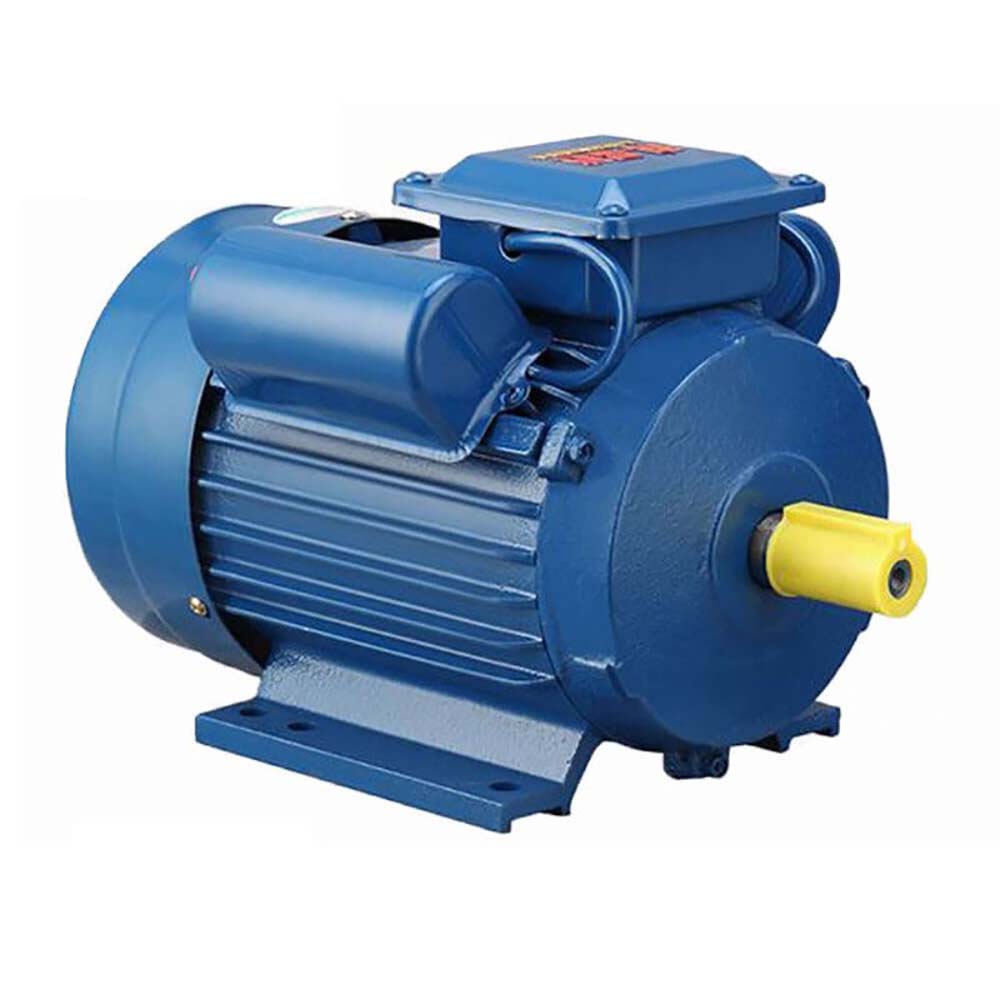

Single Phase Electric Motor 3.0HP 2.2KW 230V 50Hz 1400rpm Cast Iron Housing Electric Motor
Experience reliable performance with our Single Phase Electric Motor, designed to meet various industrial and commercial needs. This powerful motor is perfect for air compressors, pumps, fans, refrigerators, medical instruments, and small machines.
Product Description:
Horsepower: 3.0HP Motor
Rated Power: 2.2KW
Rated Voltage: 230V
Frequency: 50Hz
Rotating Speed: 1400rpm Electric Motor
Current: 13.5A
Protection Class: IP44
Insulation Class: B
Starting Capacitor: 200 uF/230V
Running Capacitor: 50 uF/400V
Housing Material: Cast Iron
Shaft Diameter: 24mm x 29mm L
Baseplate Size: 165mm W x 170mm L
Mounting Holes: 140mm x 125mm or 140mm x 100mm
Body Size (without shaft): 290mm L x 200mm W x 220mm H
Shaft size is 24mm
Shaft length is 50mm
Features:
Powerful 3.0HP motor suitable for various applications
Robust cast iron housing for durability and longevity
Single-phase dual-capacitor design for efficient operation
High insulation class B for added safety
IP44 protection class for protection against dust and water
Easy to install with multiple mounting hole options
