0 to 10MM Precision Measuring Magnetic Base Dial Indicator Gauge
0 to 10MM Precision Measuring Magnetic Base Dial Indicator Gauge
Magnetic Base Dial Indicator Gauge 0 to 10MM Precision Measuring Tool 60KG
Carry out precise workshop measurements with this practical Magnetic Base Dial Indicator Gauge. Designed for machine setup, alignment and comparative measurement, the Magnetic Base Dial Indicator Gauge provides a measuring range from 0 to 10 mm with 0.01 mm graduation.

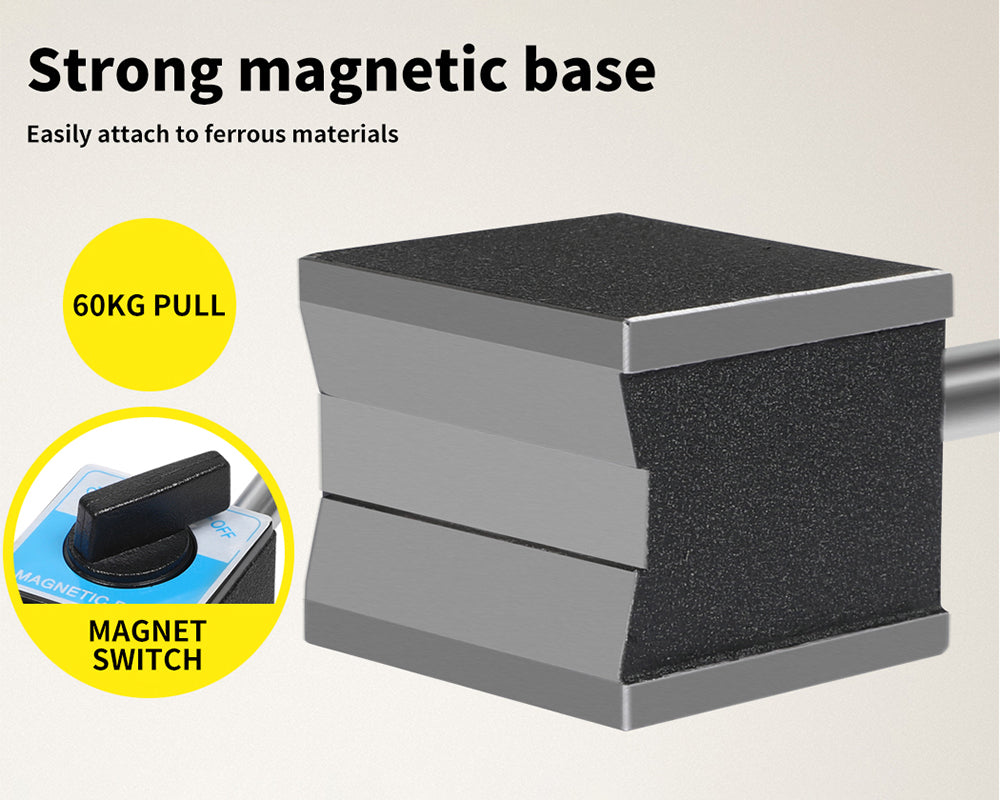

The Magnetic Base Dial Indicator Gauge features a strong magnetic base with an ON / OFF switch for convenient attachment and release from suitable ferrous surfaces. Its V shaped base helps position the Magnetic Base Dial Indicator Gauge on compatible flat and cylindrical workpieces.
An adjustable arm with fine adjustment allows accurate positioning of the dial indicator during setup. Built from steel with chrome plated adjustment components, the Magnetic Base Dial Indicator Gauge is suitable for workshops, machine tools, garages and engineering applications.
Key Features & Benefits
- 0 to 10MM Measuring Range: Magnetic Base Dial Indicator Gauge supports precise comparative measurement.
- 0.01MM Graduation: Provides fine measurement readings for workshop and machining tasks.
- 60KG Magnetic Suction: Magnetic Base Dial Indicator Gauge has a maximum supplier listed suction of approximately 60 kg.
- ON / OFF Magnetic Base: Allows quick attachment and release from compatible metal surfaces.
- V Shaped Base: Magnetic Base Dial Indicator Gauge suits compatible cylindrical and flat workpieces.

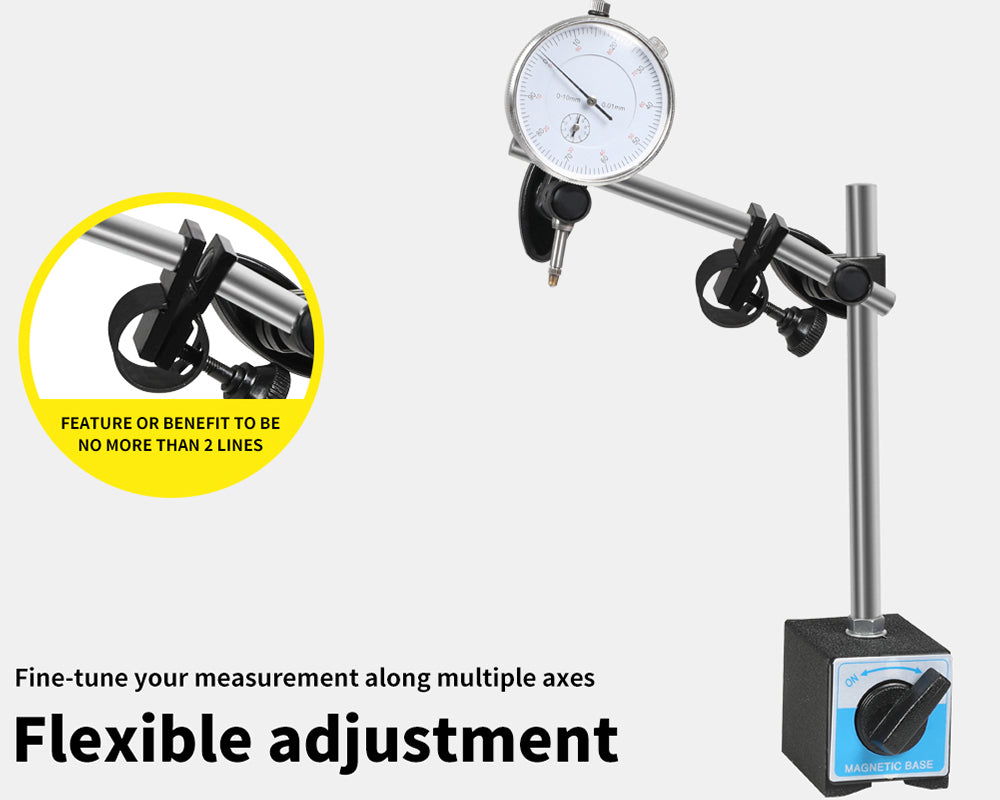

- Adjustable Arm: Fine adjustment knob allows controlled positioning of the indicator.
- Steel Construction: Durable construction for regular workshop use.
- Chrome Plated Components: Helps provide smooth adjustment and positioning.

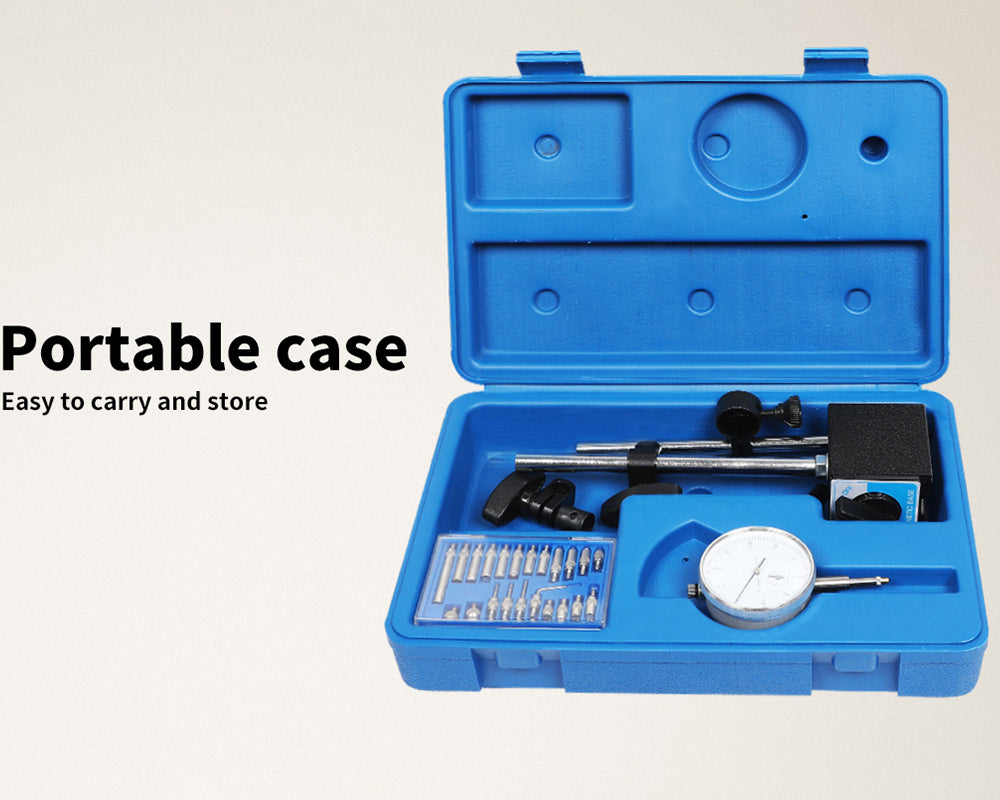

- Storage Case Included: Magnetic Base Dial Indicator Gauge comes with a plastic box for transport and storage.
- Multipurpose Use: Suitable for machine setup, alignment, comparative measurement and inspection.
Where Can You Use It?

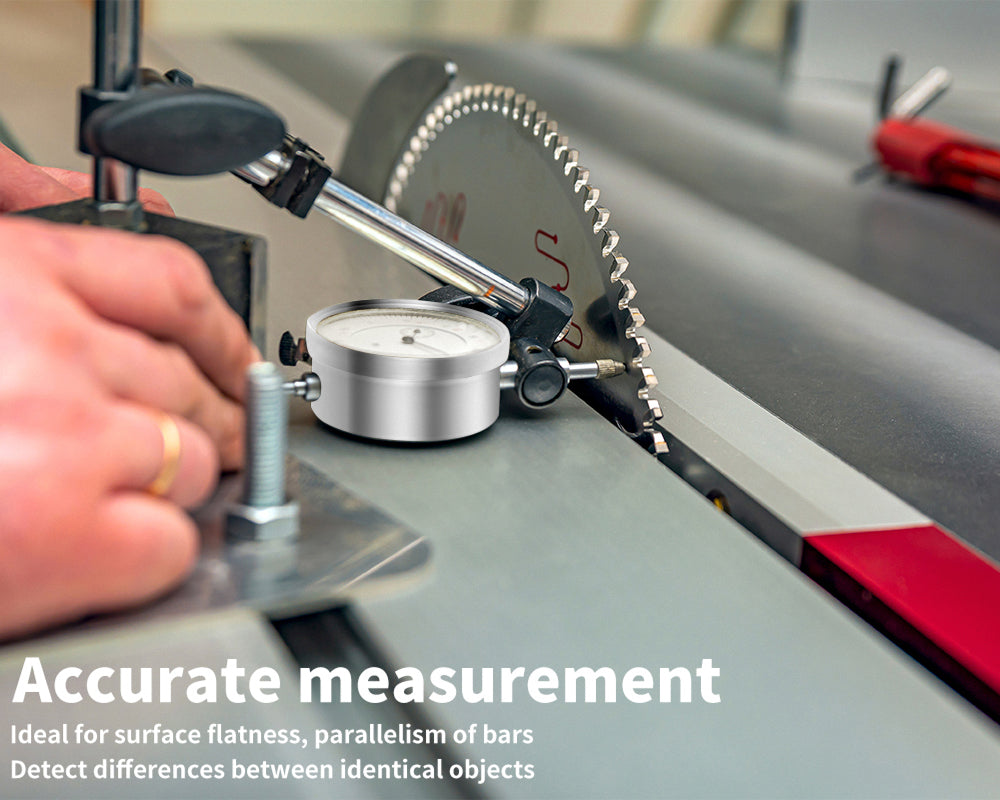

Use the Magnetic Base Dial Indicator Gauge in engineering workshops, machining areas, garages and other suitable precision measuring environments. The Magnetic Base Dial Indicator Gauge can be used with compatible lathes, milling machines and other metalworking equipment.
Perfect For
- Machine tool alignment
- Lathe setup
- Milling machine setup
- Comparative measurements
- Workshop inspection
- Engineering applications
- Precision positioning
Product Details
- Product Type: Magnetic Base Dial Indicator Gauge
- Material: Steel
- Colour: Blue

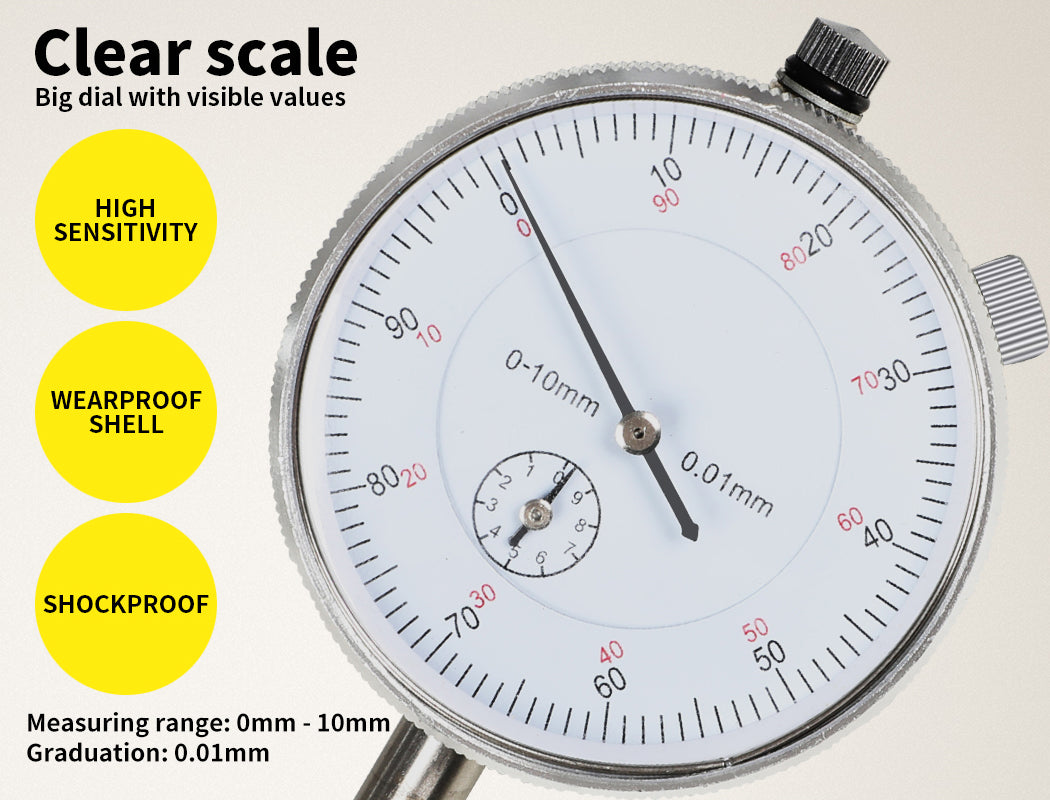

- Measuring Range: 0 to 10 mm
- Graduation: 0.01 mm
- Maximum Magnetic Suction: 60 kg Listed

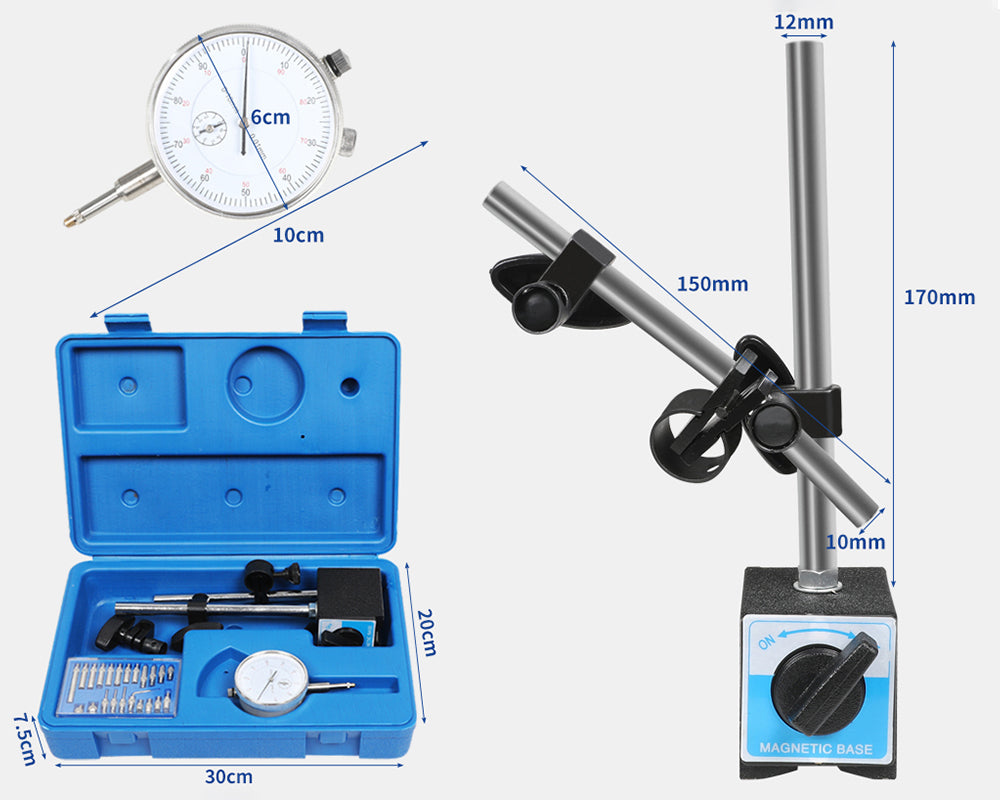

- Magnetic Base Size: Approximately 5 X 6 X 5.5 cm
- Main Rod: Approximately 12 mm Diameter X 172 mm
- Adjusting Rod: Approximately 10 mm Diameter X 150 mm
- Rod Lengths: Approximately 172 + 150 mm
- Storage Box: Approximately 29 X 19 X 7 cm
- Base Control: ON / OFF Switch

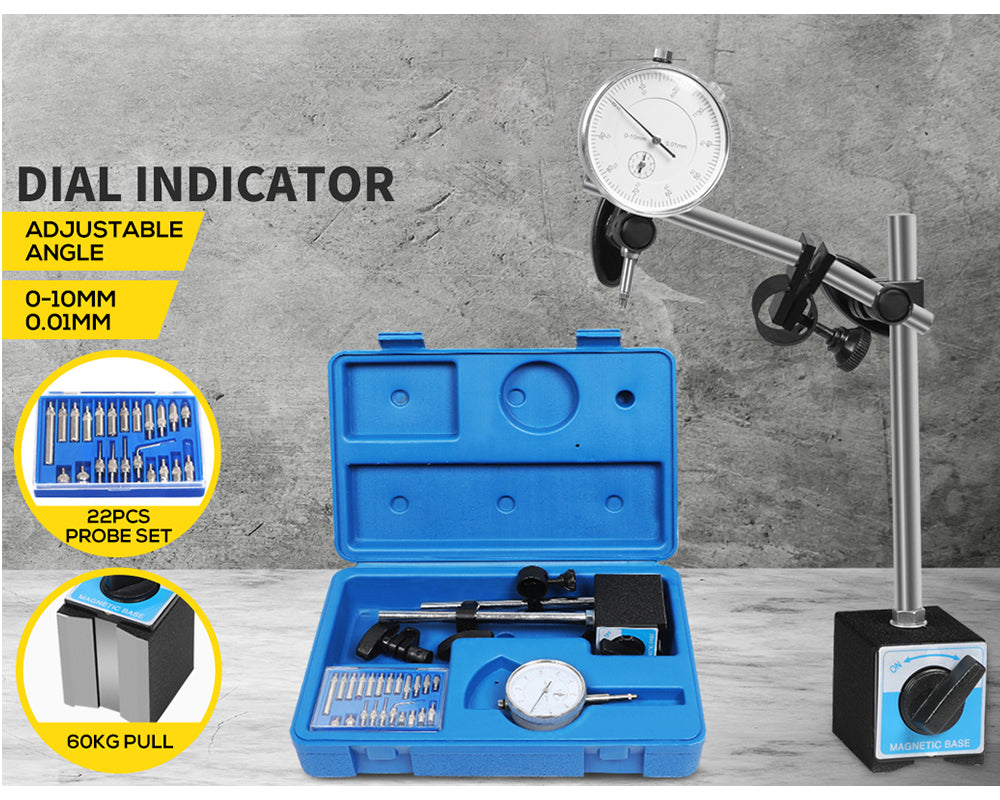

The feature description mentions up to 160 lb pulling force, while the detailed specifications list maximum suction as 60 kg. This listing uses the detailed 60 kg specification. The supplier also mentions a 22 piece indicator point set, but this set is not confirmed in the supplied package contents.

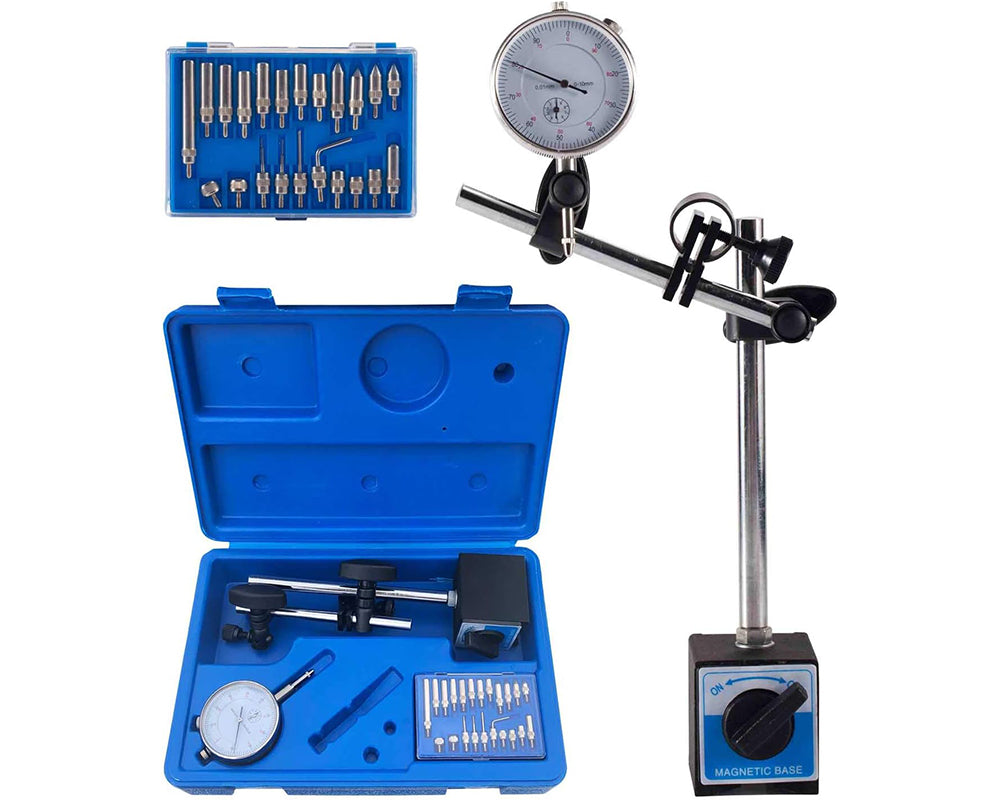

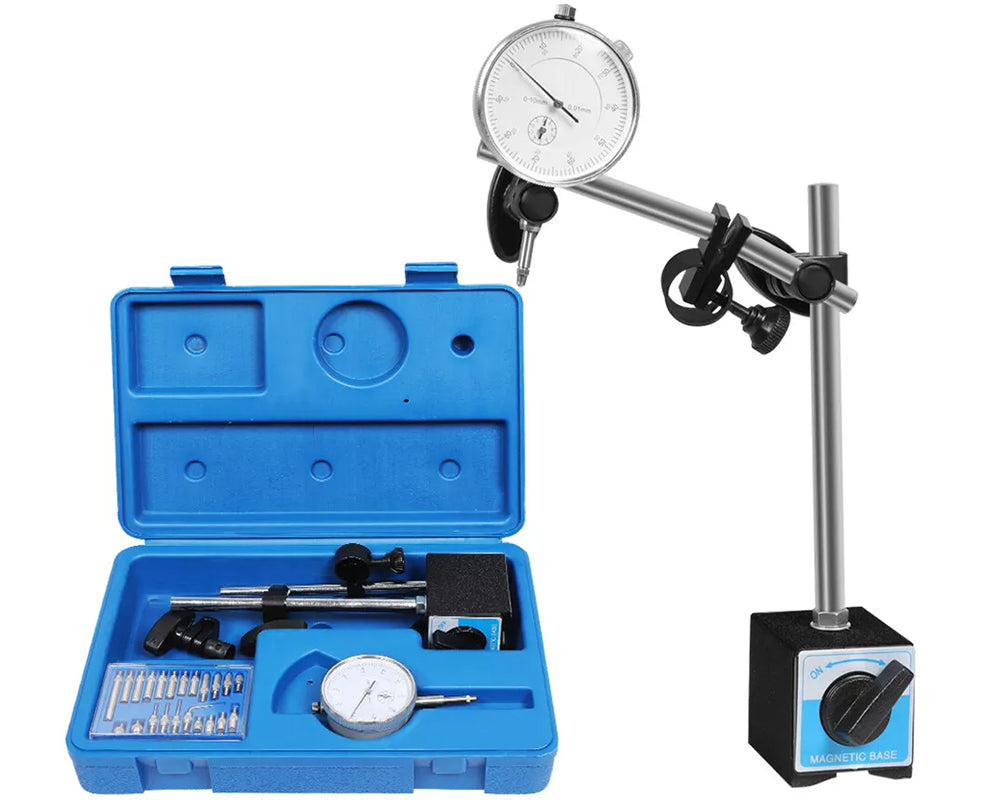

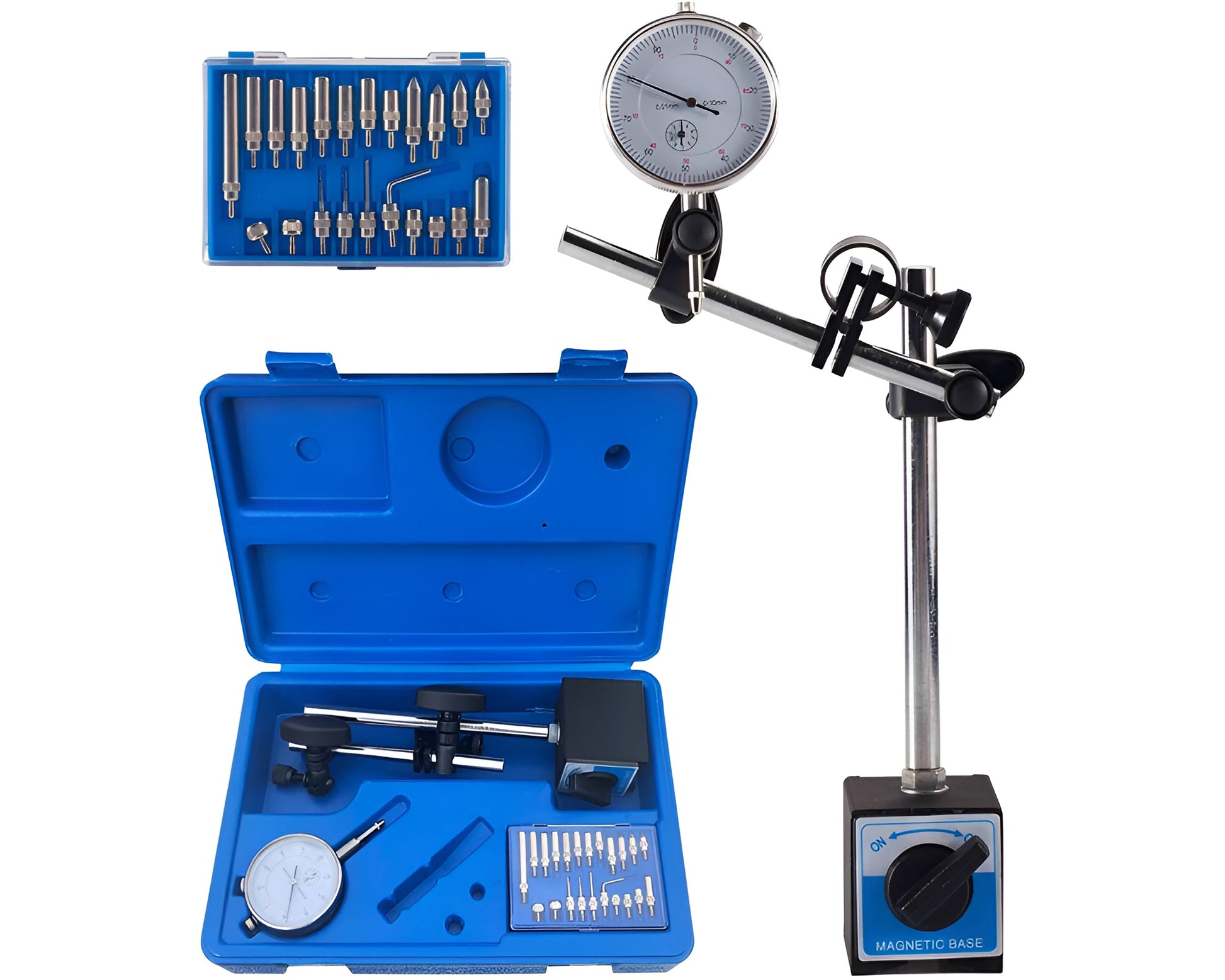

Package Includes
- 1 X Dial Indicator
- 1 X Magnetic Base
- 1 X Plastic Storage Box
