Barn Door Hardware

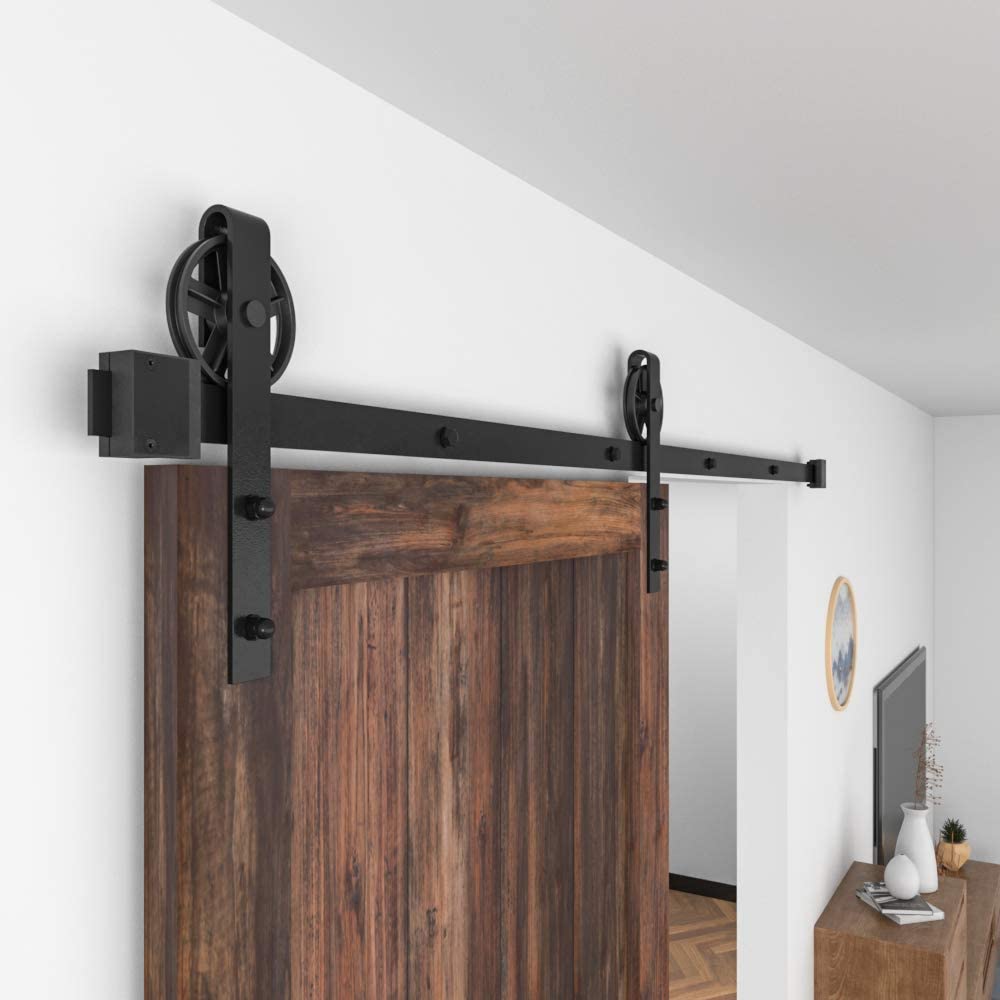

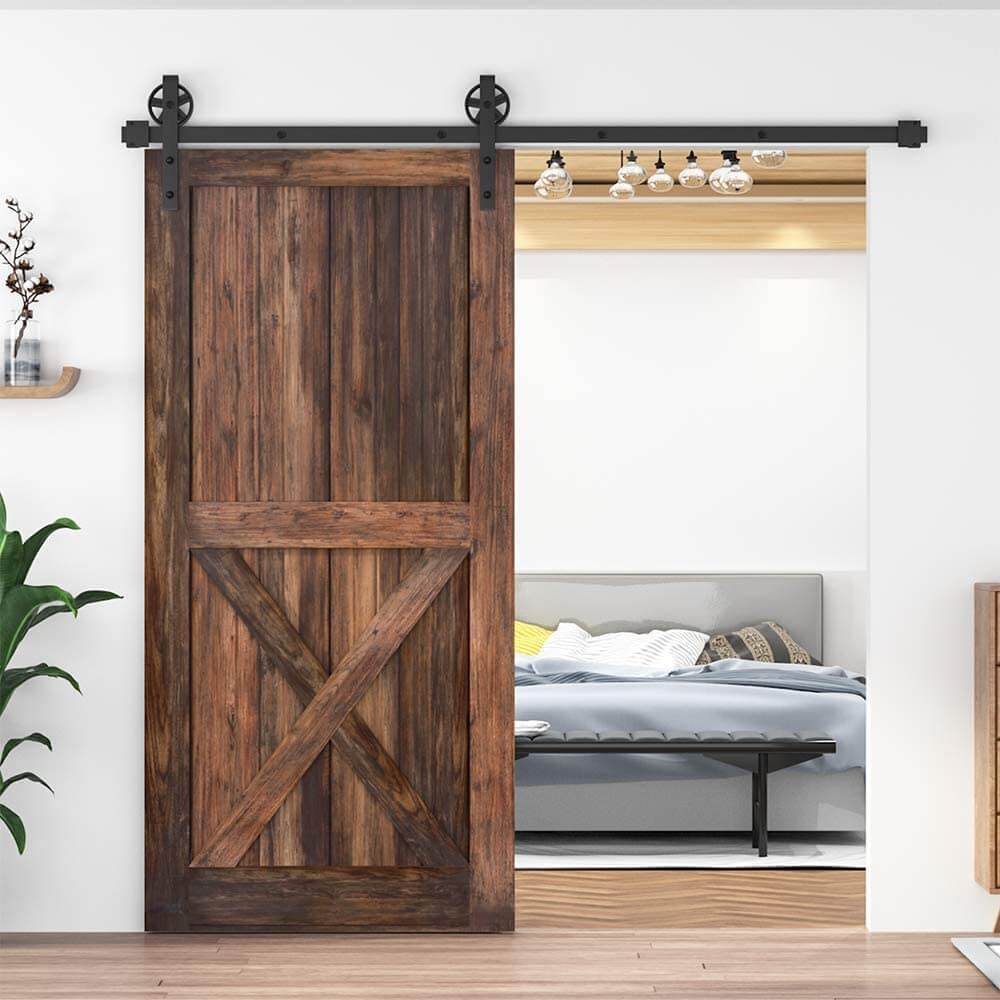

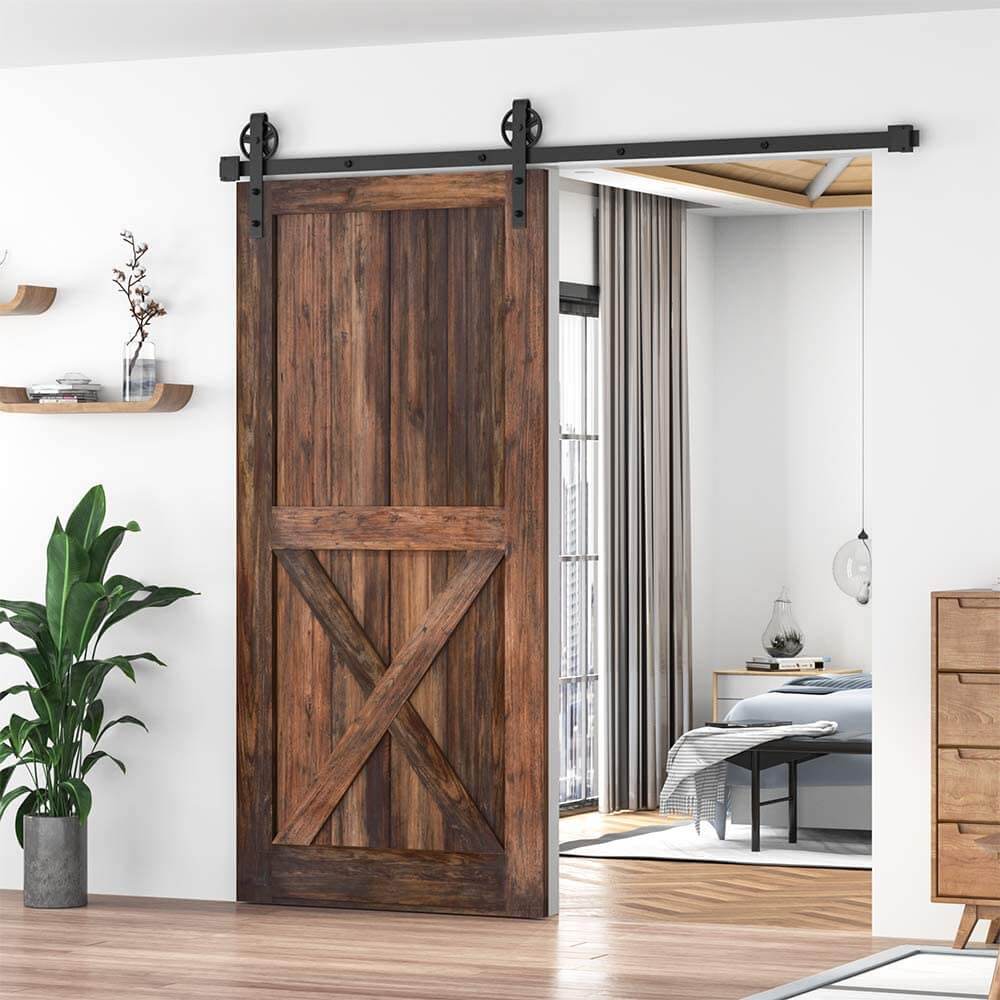

Barn Door Hardware Black Steel I-Shaped Rollers Track Rail Bypass Sliding Kit

Elevate the style and functionality of your space with our Black Steel I-Shaped Rollers Track Rail Bypass Sliding Kit for Bypass Barn Single/Double Doors. Crafted from high-quality carbon steel with a black abrasive spraying surface treatment, this hardware kit is corrosion-resistant, durable, and built to last.

The two-stage track embedded occlusion splicing ensures firmness, safety, and reliability, providing a long service life for your barn door. The double-layer design protects your material from scratches or damage, while the rollers slide quietly along the track.

Specification:

• Material: Carbon Steel
• Color: Black
• Number of Matching Doors: 1
• Matching Door Panel Information:
• Thickness: Approx. 35-45mm
• Plate Width: Approx. 90-100cm
• Track Formation Status: 2-Segment Track Embedded Occlusion Splicing
• Product Safety Load-Bearing: Less than 150kg
• Track Length: Approx. 2m
• Weight: Approx. 6850g

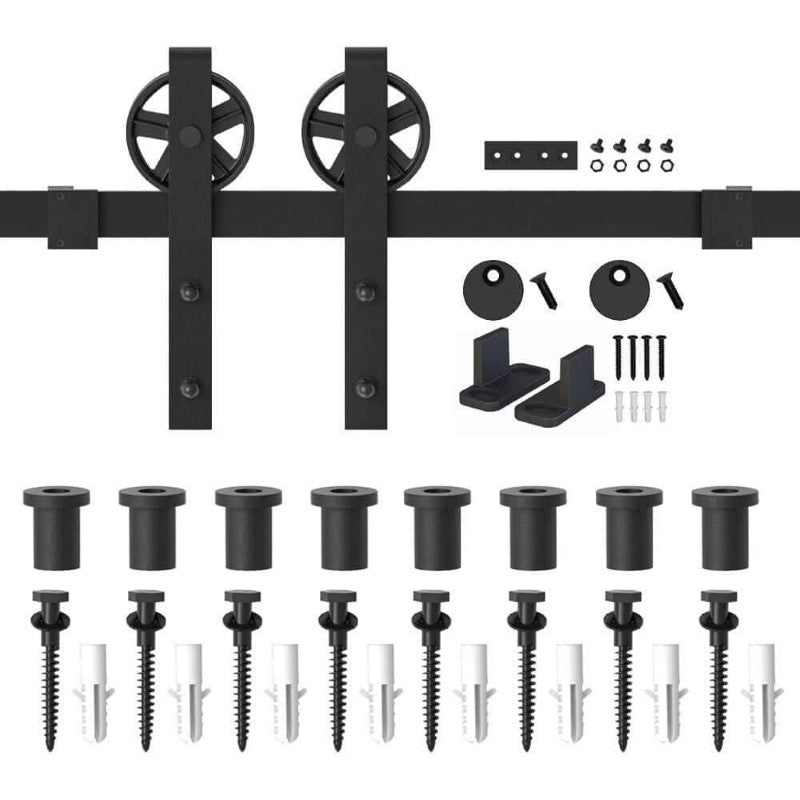

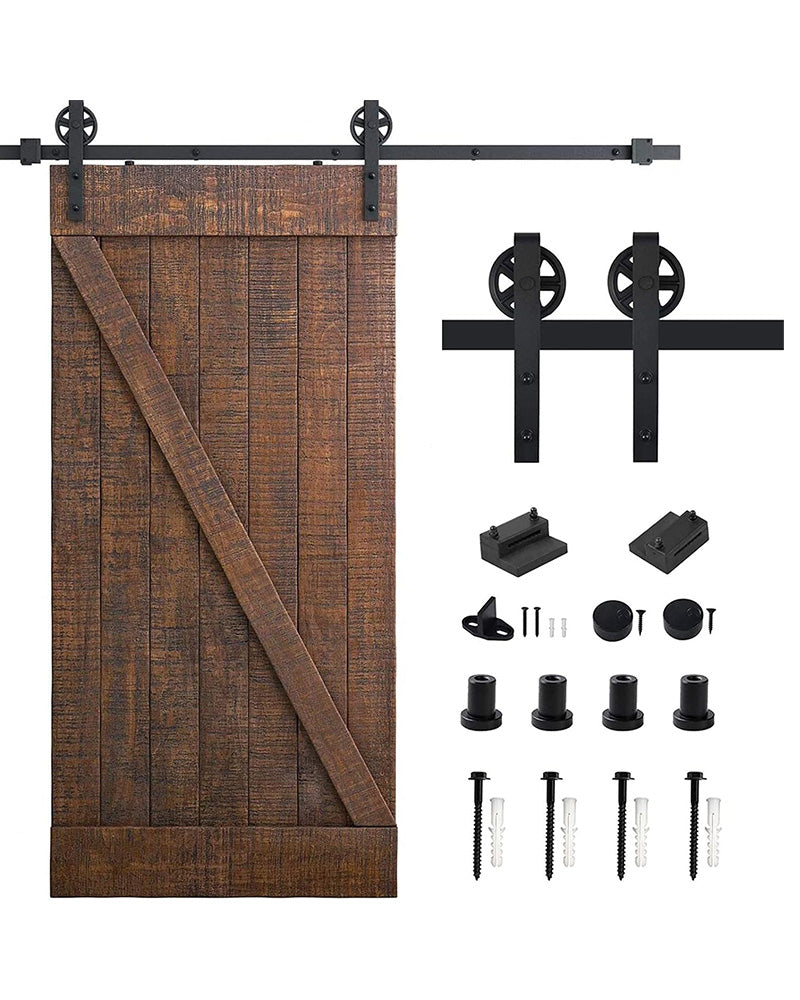

Package List:

• 2 x Hanging Rail Pulley
• 2 x Track
• 5 x 34mm Pipe Clamp
• 5 x 8x90mm Wood Tooth Screw
• 5 x Gray Plastic Screw (Diameter 10mm)
• 5 x Round Iron Gasket
• 2 x Barn Door Hardware Limiter
• 1 x Wrench
• 1 x T-Shaped Floor Guide
• 2 x White Plastic Screw (Diameter 6mm)
• 2 x 4.2x25mm White Semi-Circular Head Screw
• 2 x Round Floor Guide
• 2 x 25mm Black Nails
• 4 x M10x60mm Bolt
• 8 x Round Gasket
• 4 x M10 Cap Nut
