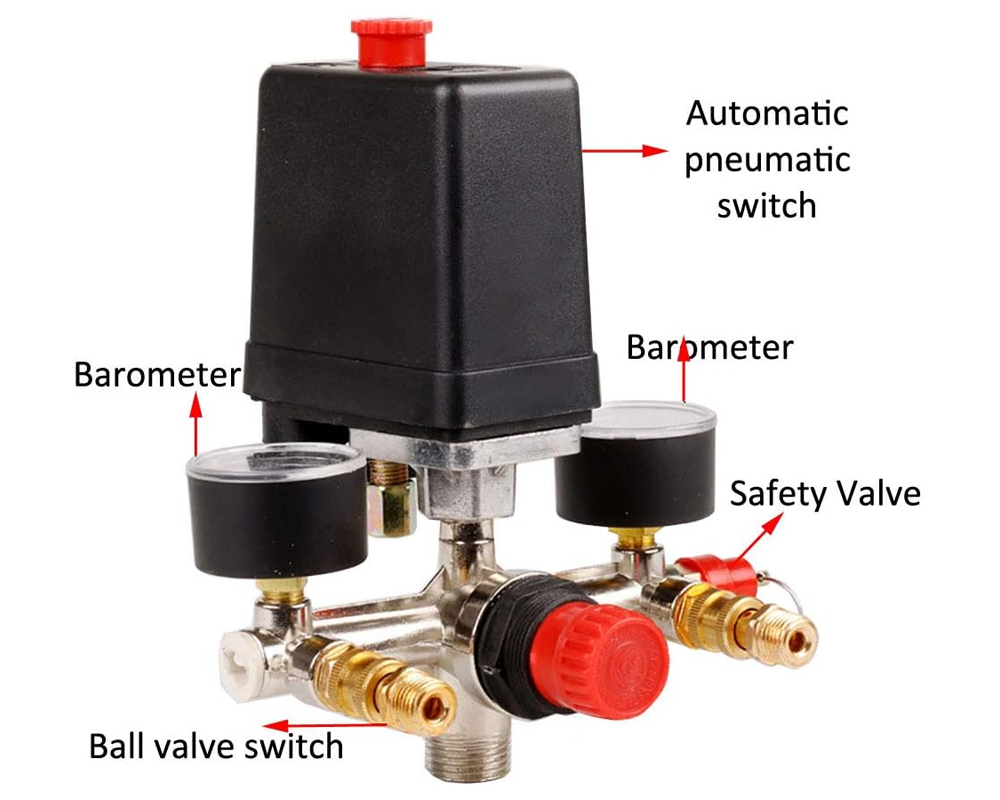

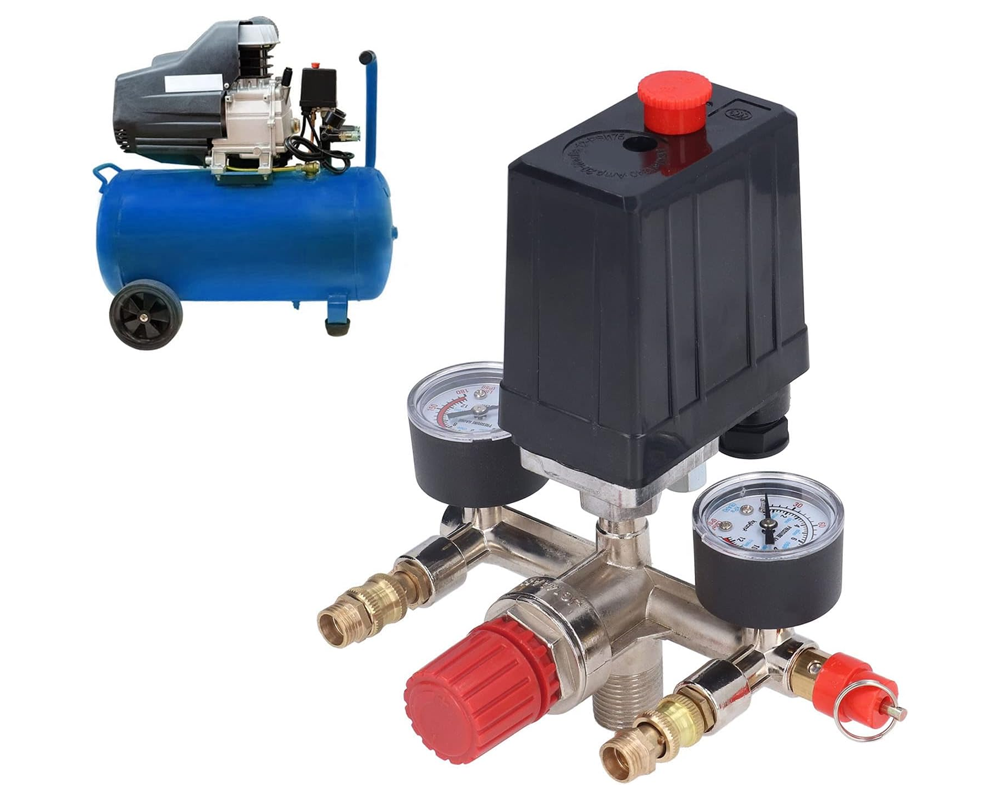

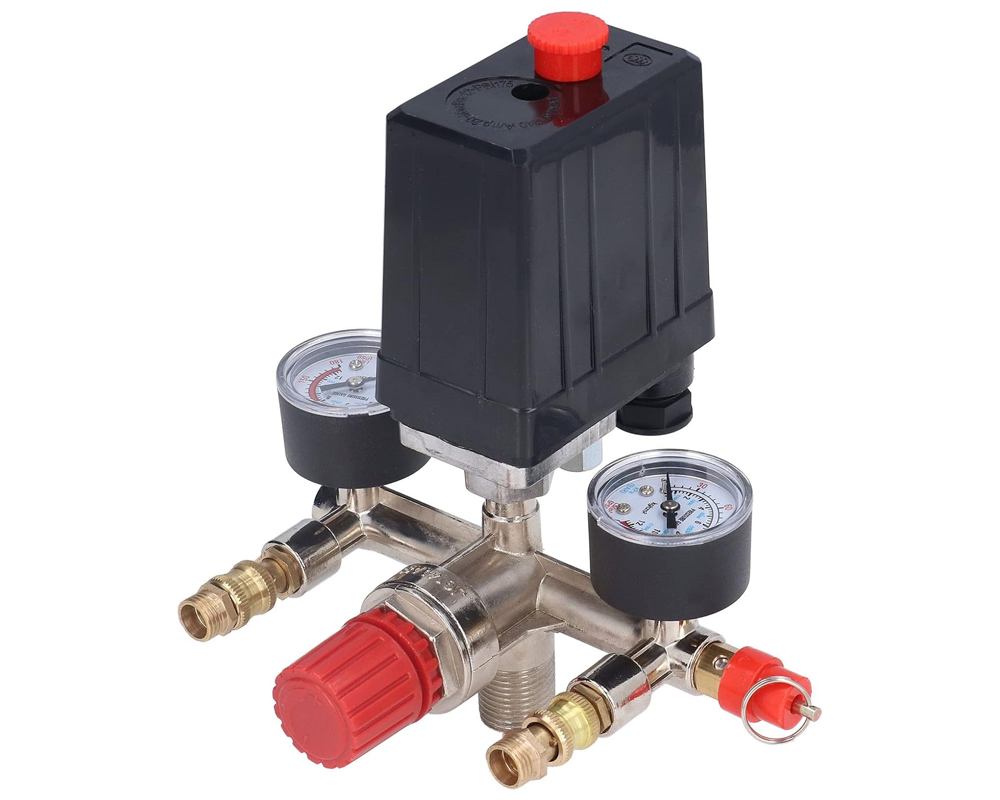

Introducing the Air Compressor Pressure Control Switch Valve Manifold Regulator, a reliable and efficient component designed to enhance your air compressor system. This versatile unit comes with a range of features to ensure optimal performance and ease of use.
Specifications:
Maximum Voltage: 240 V
Max Amp Rating: 20A
Pressure Range: 90-120 psi (Automatically activates the compressor below 90 psi and deactivates it above 120 psi; non-adjustable)
Gauges Pressure Range: 0-180 psi
Male Thread Diameter: Approx 21mm - 1/2 NPT (for seamless connection to the air compressor)
Valves Male Thread Diameter: 13mm - 1/4 NPT
Size (LWH): 17 x 15.5 x 19 cm / 6.69inch x 6.10inch x 7.48inch
Features:

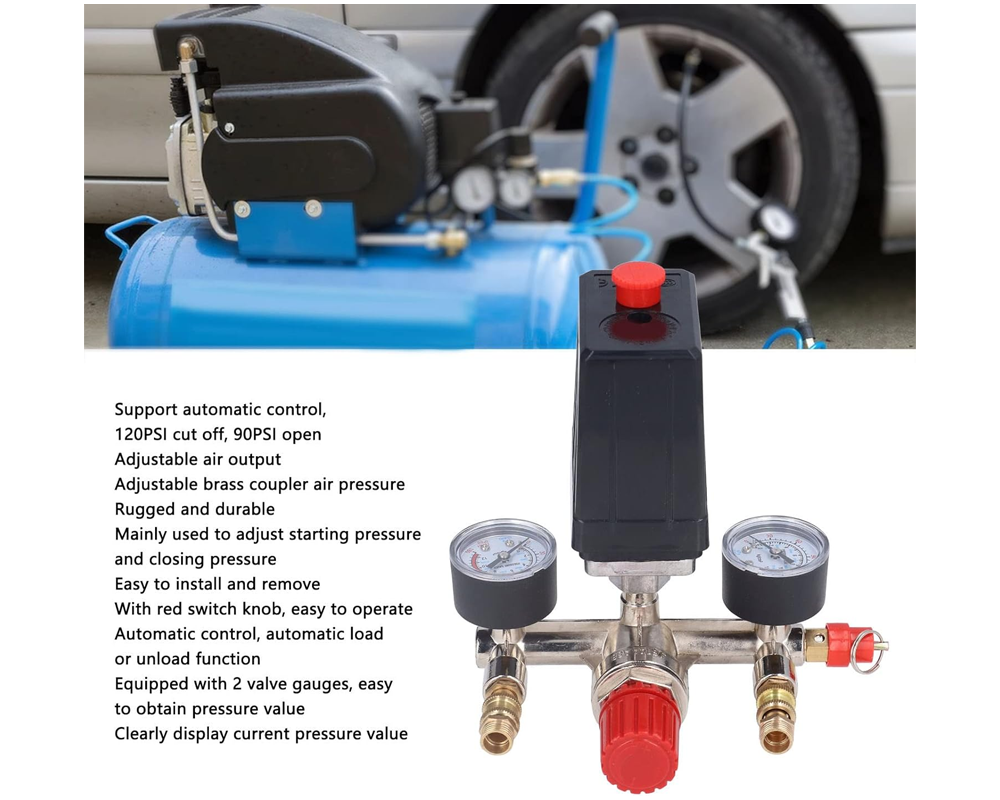

Automatic Control: Enjoy the convenience of auto load/unload functionality, ensuring smooth and efficient operation.
User-Friendly Design: Equipped with a red on/off switch knob for easy and intuitive operation.
