Adjustable Starlink Mount Satellite Dish Bracket

Adjustable Starlink Mount Satellite Dish Bracket 50cm Arm Roof Wall Eave

Install your compatible satellite dish with this Adjustable Starlink Mount, designed for Starlink Standard 4, 4X, Gen 3 and V3 series. Featuring a durable carbon steel support arm with approximately 50 cm extension, the Adjustable Starlink Mount provides flexible positioning for roof, wall and eave installations.

The Adjustable Starlink Mount features a 0 to 180 degree adjustable base and 360 degree bracket rotation to accommodate different mounting angles. Its reinforced steel construction includes a sandblasted and baked protective coating designed to help resist rust, UV exposure and outdoor weather conditions.

Key Features and Benefits

• Wide Starlink Compatibility: The Adjustable Starlink Mount is designed for Standard 4, 4X, Gen 3 and V3 dish series.
• 50CM Extension Arm: Carbon steel support tube provides approximately 50 cm of additional mounting reach.

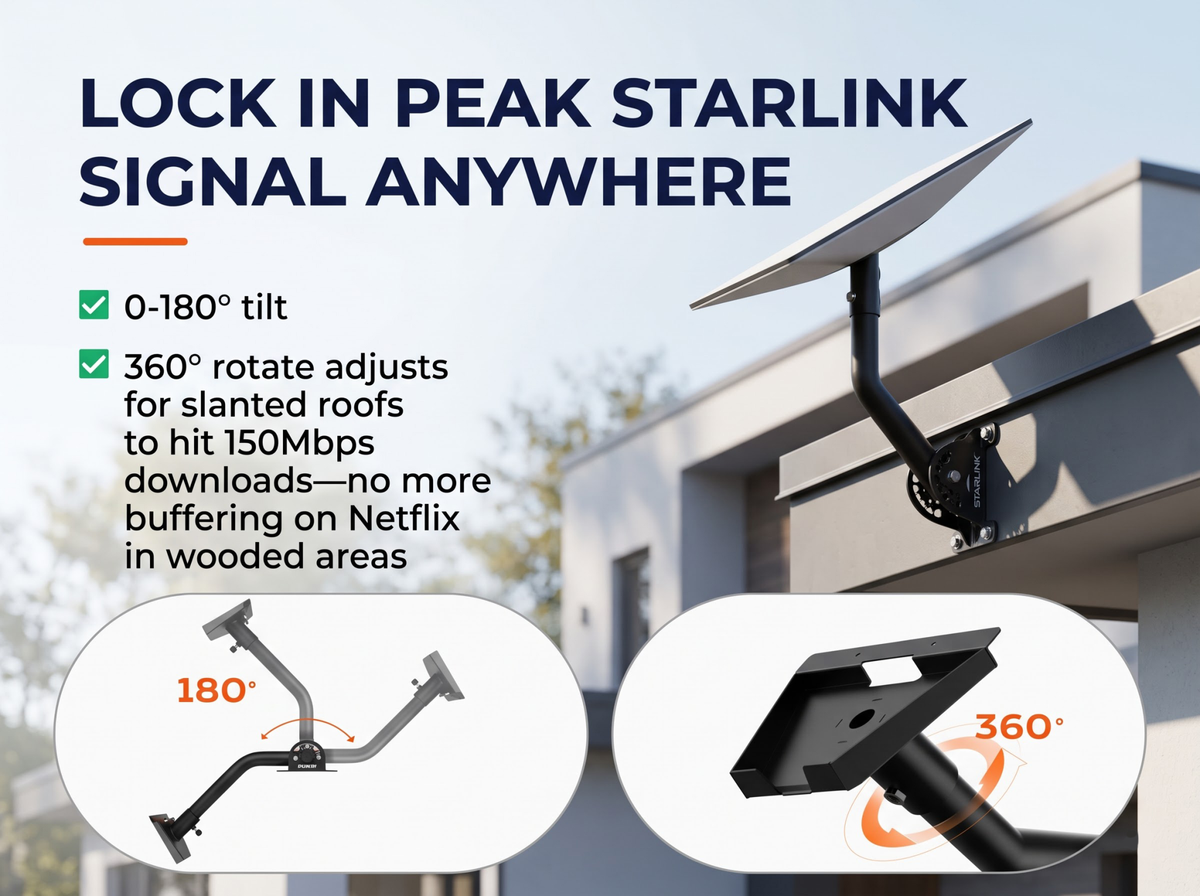

• 0 to 180 Degree Base Adjustment: The Adjustable Starlink Mount allows flexible tilt positioning for different roof and wall angles.
• 360 Degree Bracket Rotation: Enables rotational adjustment for convenient dish positioning during installation.

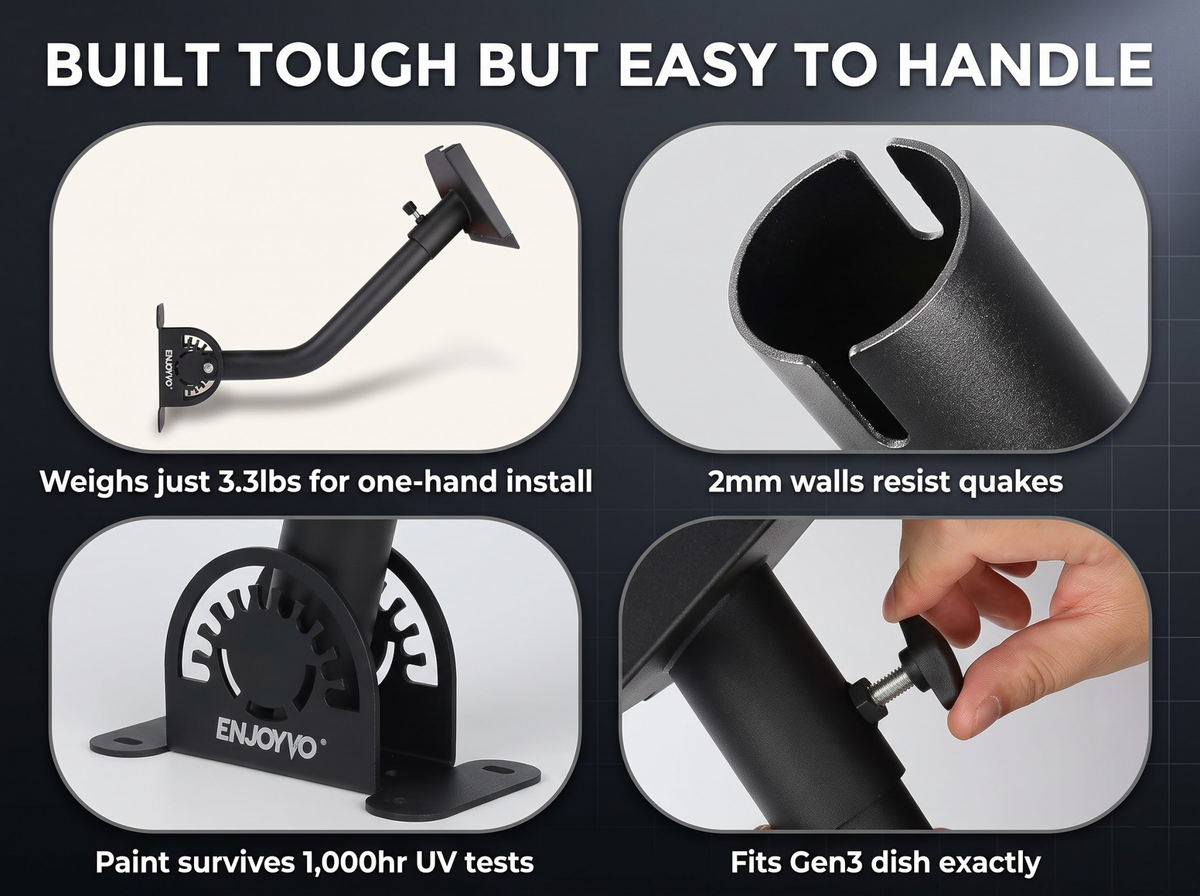

• Durable Carbon Steel Construction: Reinforced support tube features approximately 2 mm wall thickness.

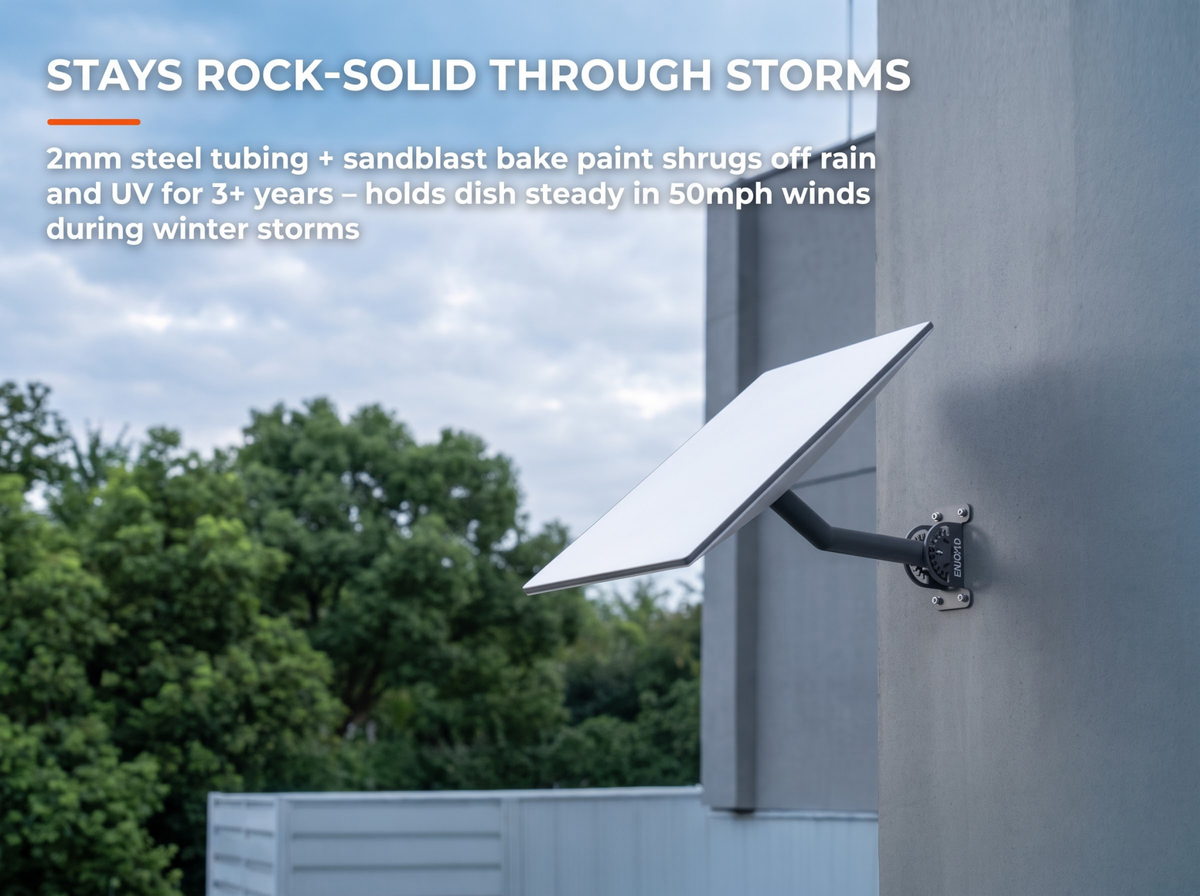

• Weather Resistant Finish: Sandblasted and baked coating helps protect the steel against rust and outdoor exposure.
• Multiple Mounting Locations: The Adjustable Starlink Mount supports installation on compatible roofs, exterior walls, eaves and outdoor structures.

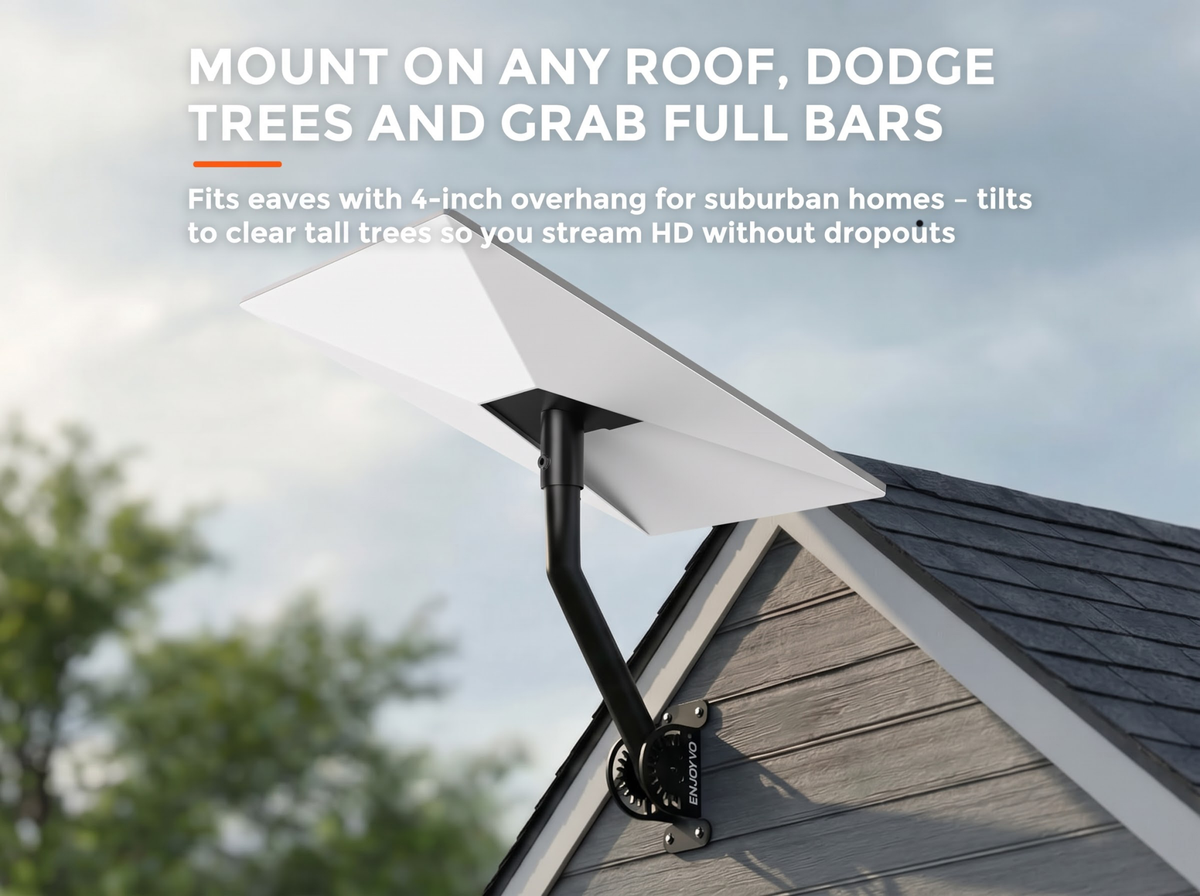

• Overhang Compatibility: Designed for suitable eaves with overhangs up to approximately 10.2 cm.
• Silicone Cushioning Pads: Two included pads help cushion mounting contact points and reduce vibration.
• Installation Accessories: Includes screws, anchors, tightening knobs and a wrench for convenient assembly.
• Lightweight Handling: The Adjustable Starlink Mount weighs approximately 1.5 kg for practical installation and positioning.

Where Can You Use It

The Adjustable Starlink Mount is suitable for mounting compatible satellite dishes on appropriate roofs, exterior walls, eaves, garages, cabins and other suitable structures. It can be installed on wood, brick or concrete using fasteners appropriate to the mounting surface and structural requirements.

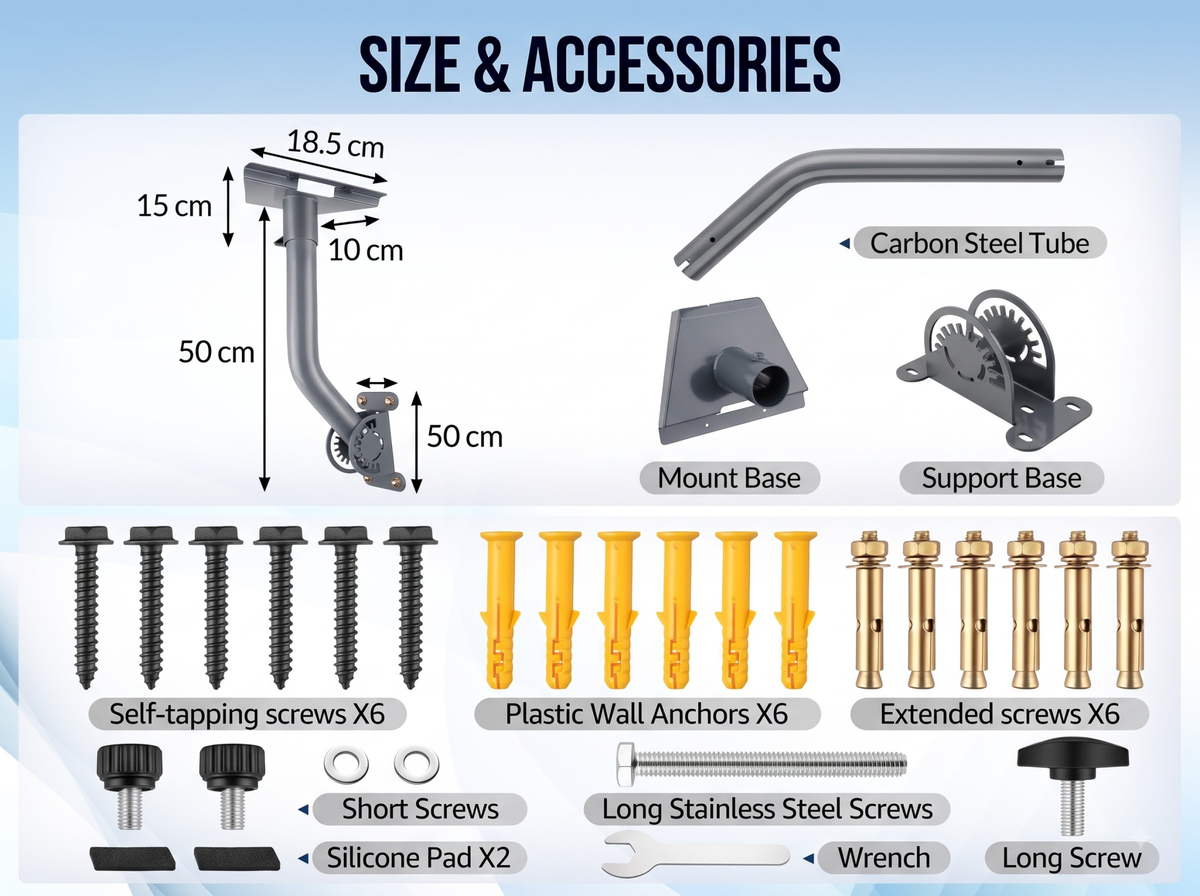

Specifications

• Product Type: Adjustable Starlink Mount
• Compatible Models: Starlink Standard 4, 4X, Gen 3 and V3
• Material: Carbon Steel
• Tube Wall Thickness: 2 mm
• Arm Extension: Approximately 50 cm
• Base Adjustment: 0 to 180 Degrees
• Bracket Rotation: 360 Degrees
• Product Weight: Approximately 1.5 kg
• Maximum Listed Eave Overhang: Approximately 10.2 cm
• Surface Finish: Sandblasted and Baked Weather Resistant Coating
• Mounting Locations: Roofs, Walls, Eaves, Garages and Cabins
• Suitable Surfaces: Wood, Brick, Concrete and Compatible Structures

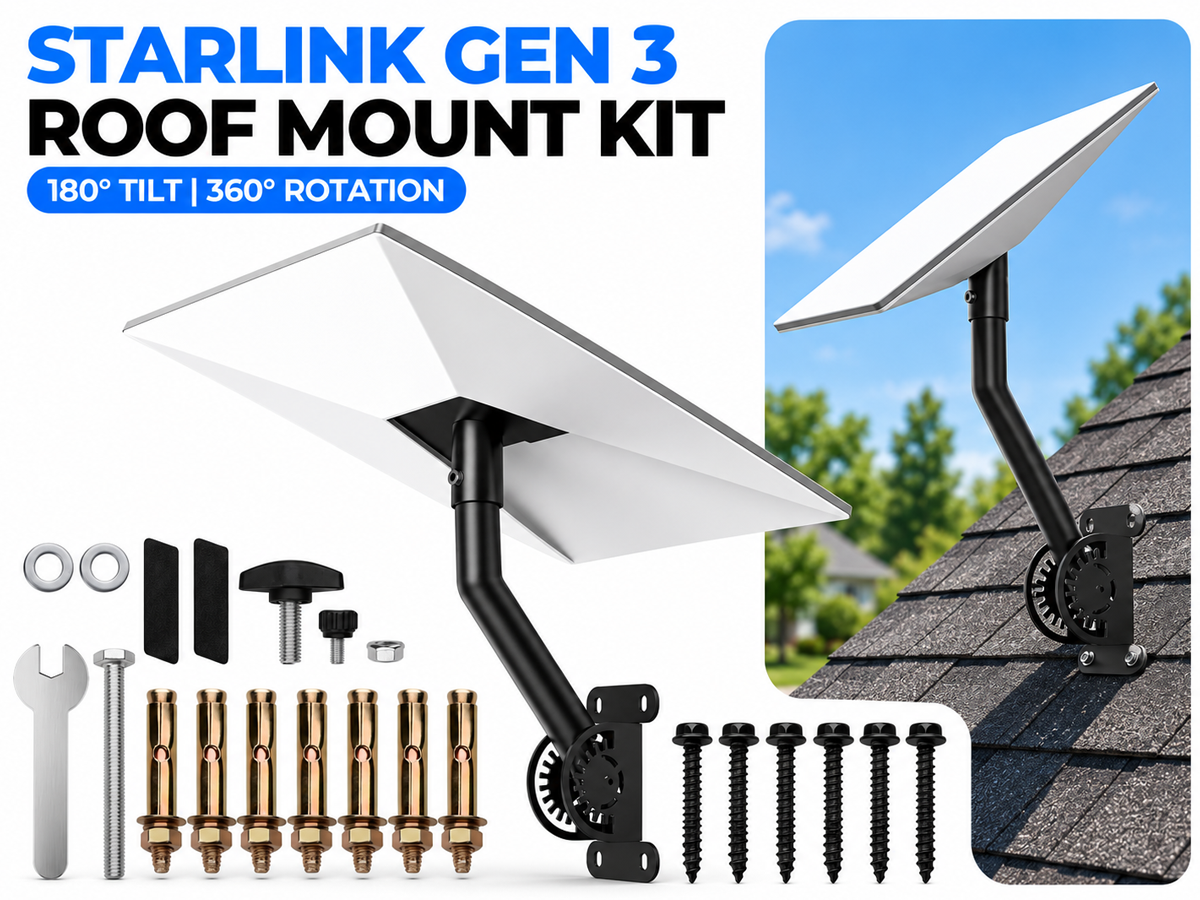

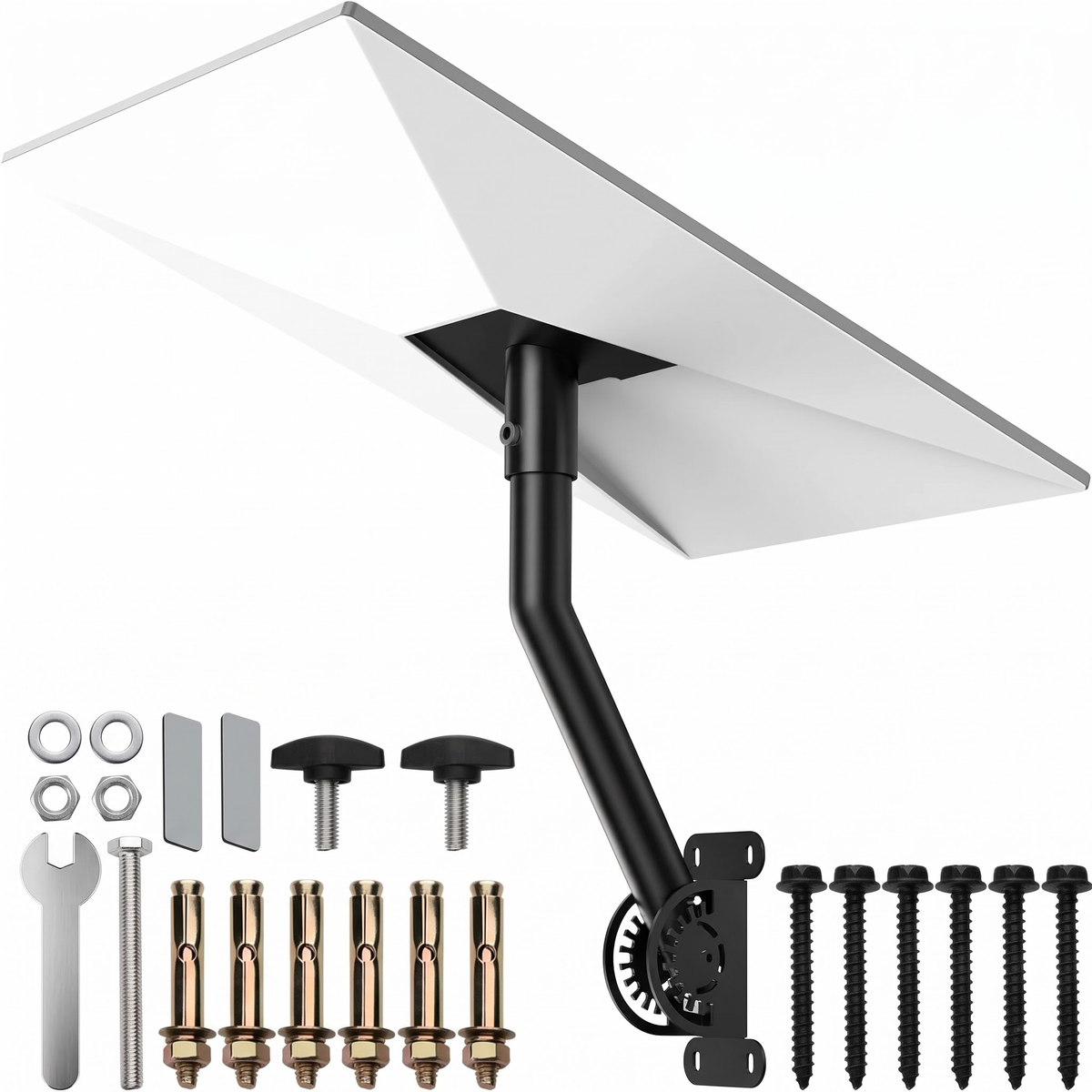

Package Includes

• 1 X Adjustable Starlink Mount
• 1 X Carbon Steel Arm
• 2 X Silicone Pads
• 6 X Self Tapping Screws
• 6 X Plastic Wall Anchors
• 6 X Extended Expansion Screws
• Long Stainless Steel Screws
• Short Screws
• Tightening Knobs
• 1 X Wrench
• Installation Hardware
