Solar Panel 50 Watt 12 Volt Monocrystalline Solar Panel 50W (Compact Design)
Solar Panel 50 Watt 12 Volt Monocrystalline Solar Panel 50W (Compact Design)

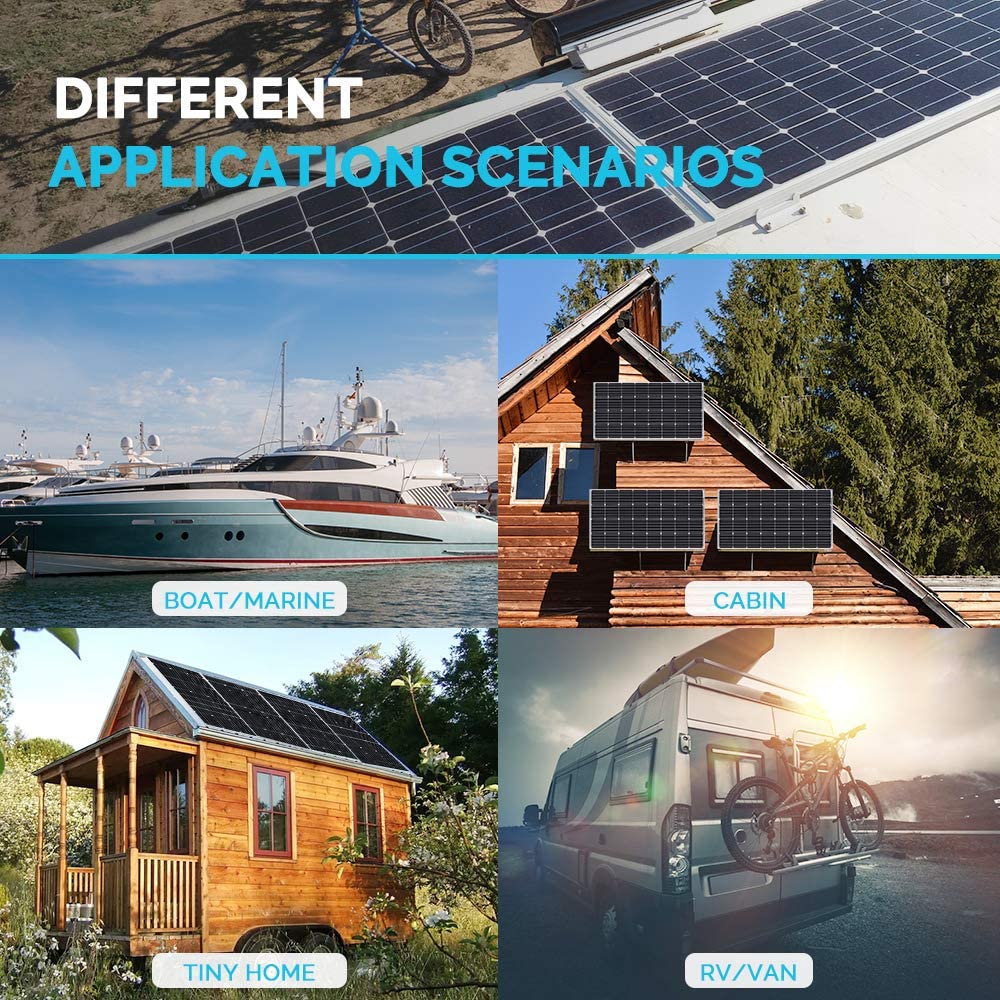

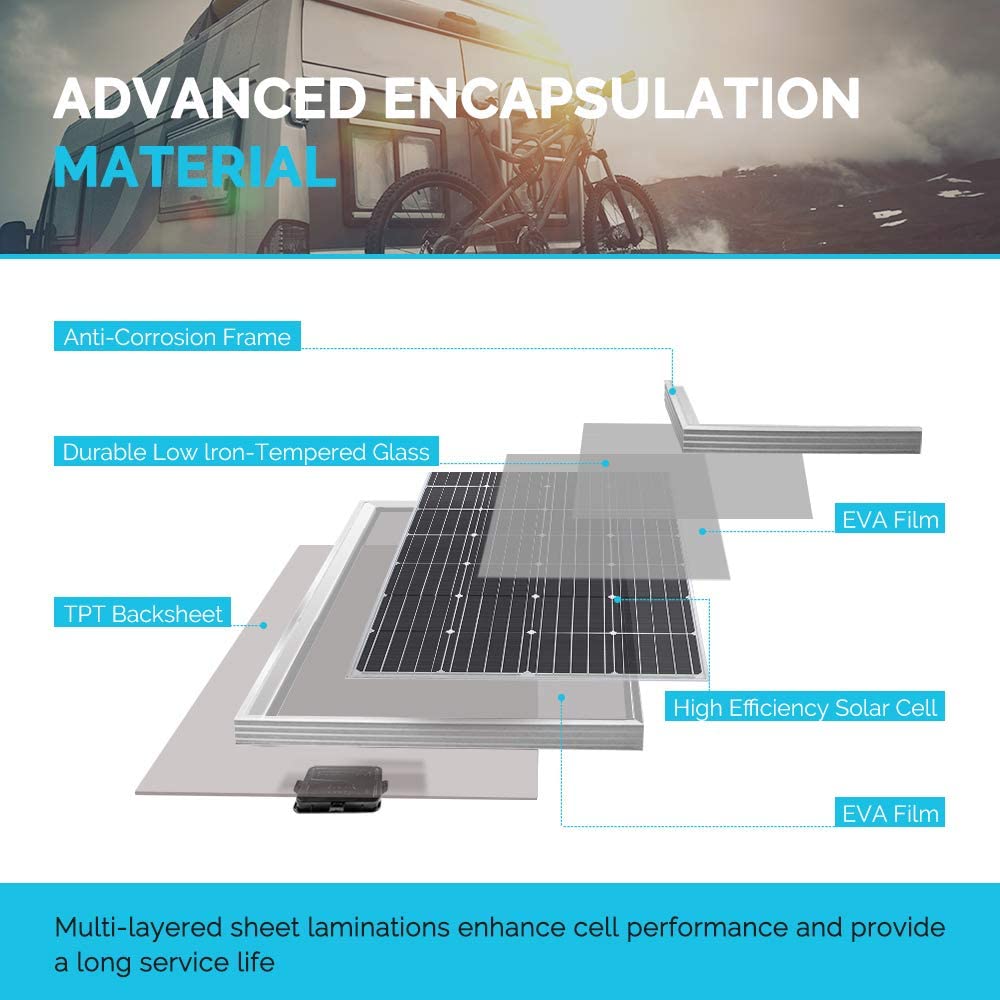

Experience efficient solar power with the Solar Panel 50W. Featuring a compact design and heavy-duty aluminum frame, this monocrystalline panel is designed to withstand various weather conditions. Its IP65 waterproof rating, tempered glass, and high performance specifications make it ideal for both residential and commercial solar applications.
Features:
Frame: Heavy duty aluminum
Waterproof: IP65
3.2mm tempered glass
Max. Power (Pmax): 50W +/- 3%
Max. Power Voltage (Vmp): 17.5V
Max. Power Current (Imp): 2.85A
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 3.23A
Max. System Voltage: 1000V
Max. Series Fuse: 10A
Standard Test Condition (E=1000w/m² Tc=25°C AM1.5)
Nominal Operating Cell Temp (NOCT): 47 +/- 2°C
For field connections use minimum no.11 AWG copper wires
