Automatic Sliding Gate Opener Kit with 4M Steel Rack

Automatic Sliding Gate Opener Kit Heavy Duty Electric Gate Motor for Gates up to 1300KG

Secure your property with this Automatic Sliding Gate Opener Kit, designed for residential, commercial, and industrial sliding gates weighing up to 1300 kg. Powered by a durable 130W motor, it delivers up to 1100 N of pulling force for smooth, reliable, and efficient gate operation.

Built with a heavy-duty all-metal gear drive and a weather-resistant housing, this gate opener is designed to withstand outdoor conditions throughout the year. The integrated control system features adjustable automatic closing, pedestrian mode, multi-user operation, and intelligent obstacle detection that automatically stops and reverses the gate when an obstruction is detected.

The self-locking mechanism helps prevent unauthorised pushing and lifting of the gate, while the dual-key manual release allows manual operation during power outages. With a remote control operating range of up to 50 metres, opening and closing your gate is quick and convenient.

Suitable for rack-driven sliding gate systems, this Automatic Sliding Gate Opener Kit is ideal for homes, commercial buildings, warehouses, factories, farms, and other secure access applications.

Features

• 1300kg Capacity – Suitable for heavy residential, commercial, and industrial sliding gates.
• Powerful 130W Motor – Delivers up to 1100 N pulling force for smooth operation.

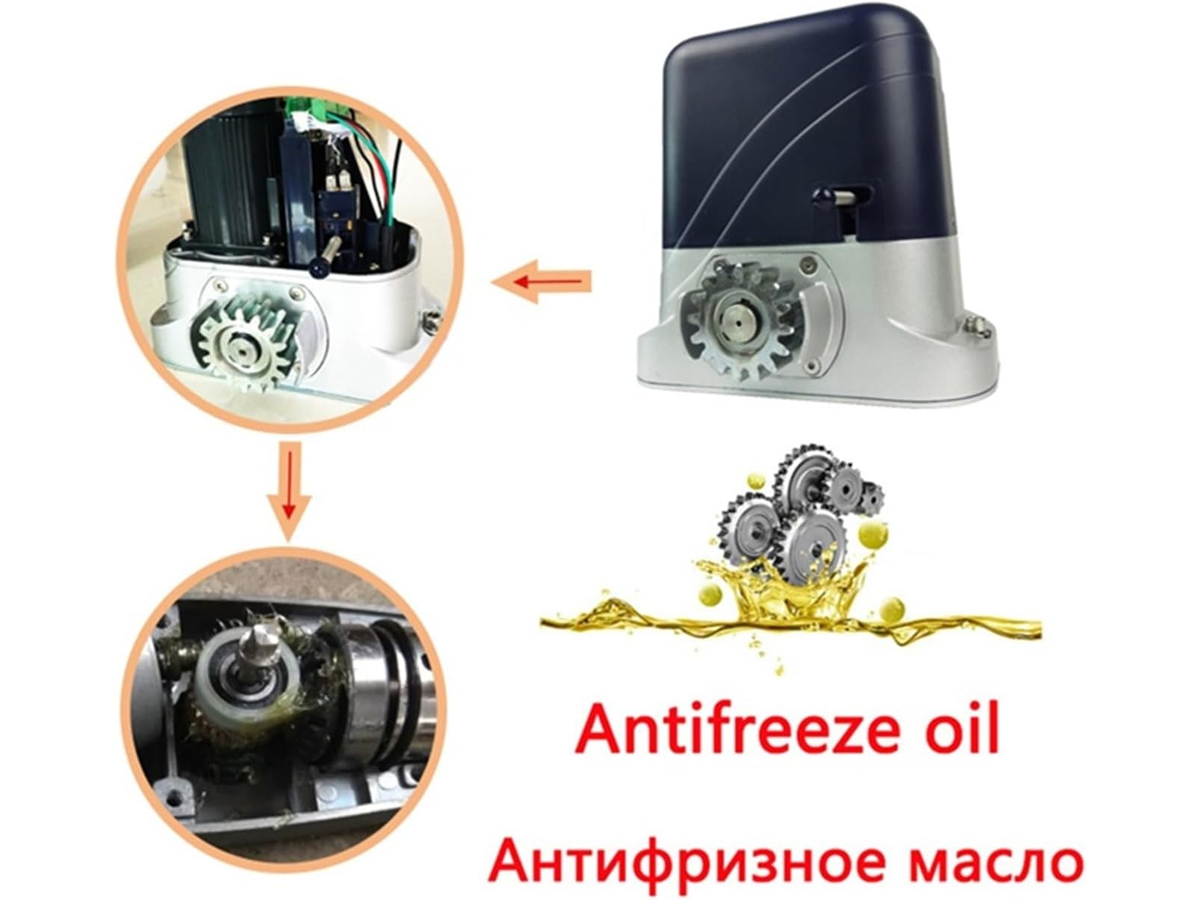

• Heavy-Duty Metal Gears – Durable all-metal drive system for long-lasting performance.
• Weather-Resistant Housing – Designed for reliable outdoor installation.
• Obstacle Detection – Automatically stops and reverses when an obstruction is detected.
• Automatic Closing Timer – Adjustable auto-close function for added convenience.
• Dual-Key Manual Release – Allows manual operation during power outages.
• Remote Operation – Operates from up to 50 metres away.
• Self-Locking Design – Helps resist forced opening, pushing, and lifting.
• Pedestrian & Multi-User Modes – Supports pedestrian access and multi-user applications.

Specifications

Product Type: Automatic Sliding Gate Opener Motor
Maximum Gate Weight: 1300 kg
Maximum Pull Force: 1100 N
Motor Power: 130 W
Power Supply: 230V AC
Frequency: 50 Hz
Motor Speed: 1400 RPM
Gate Travel Speed: 12 m/min
Output Torque: 18.0 N·m
Output Gear Module: M4
Output Gear Teeth: 16 Teeth (Z16)
Operating Temperature: -25°C to +55°C
Working Humidity: ≤85%
Remote Control Range: Up to 50 m
Protection Class: Class B
Net Weight: 11 kg

Dimensions

Overall Height: 25 cm
Overall Width: 27.5 cm
Overall Depth: 31.1 cm
Main Body Width: 13.3 cm
Drive Gear Centre Height: 8.9 cm
Top Width (Gear Housing): 24.8 cm
Base Mounting Width: 13 cm

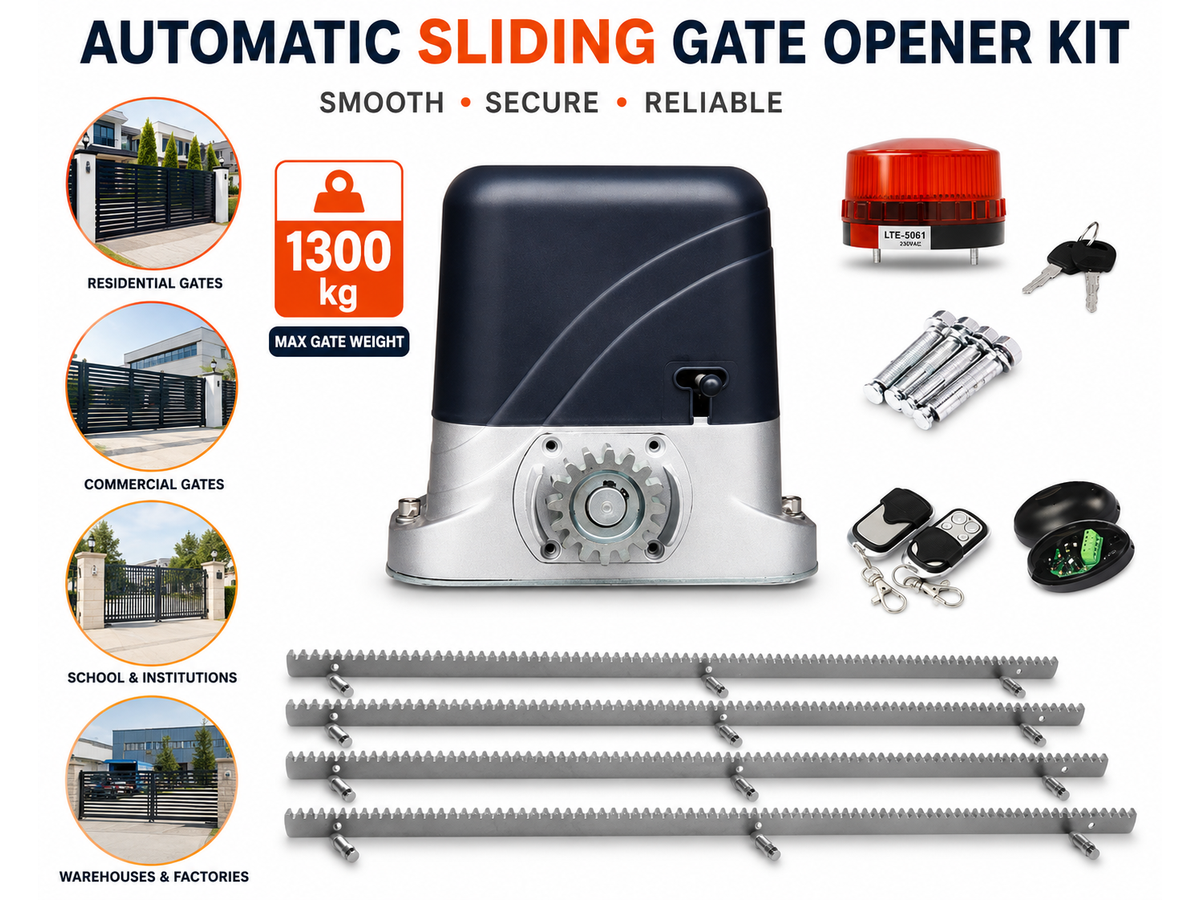

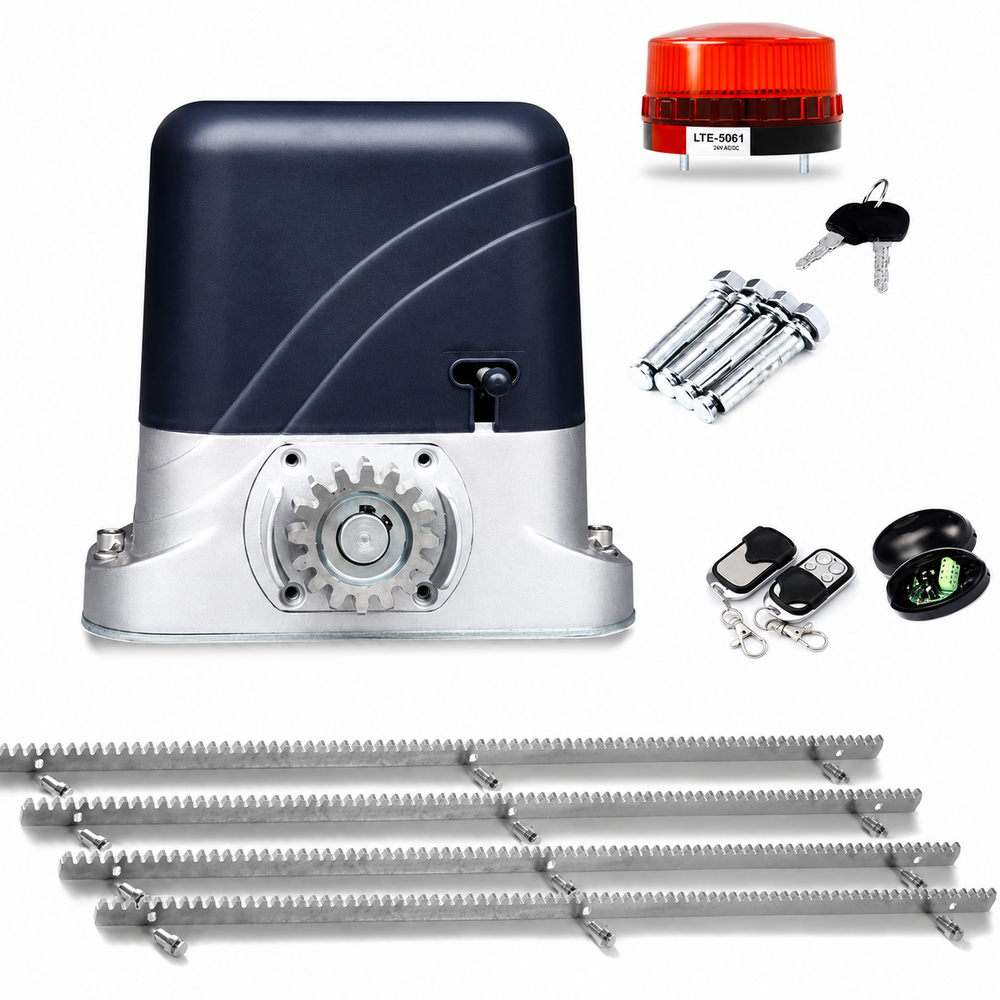

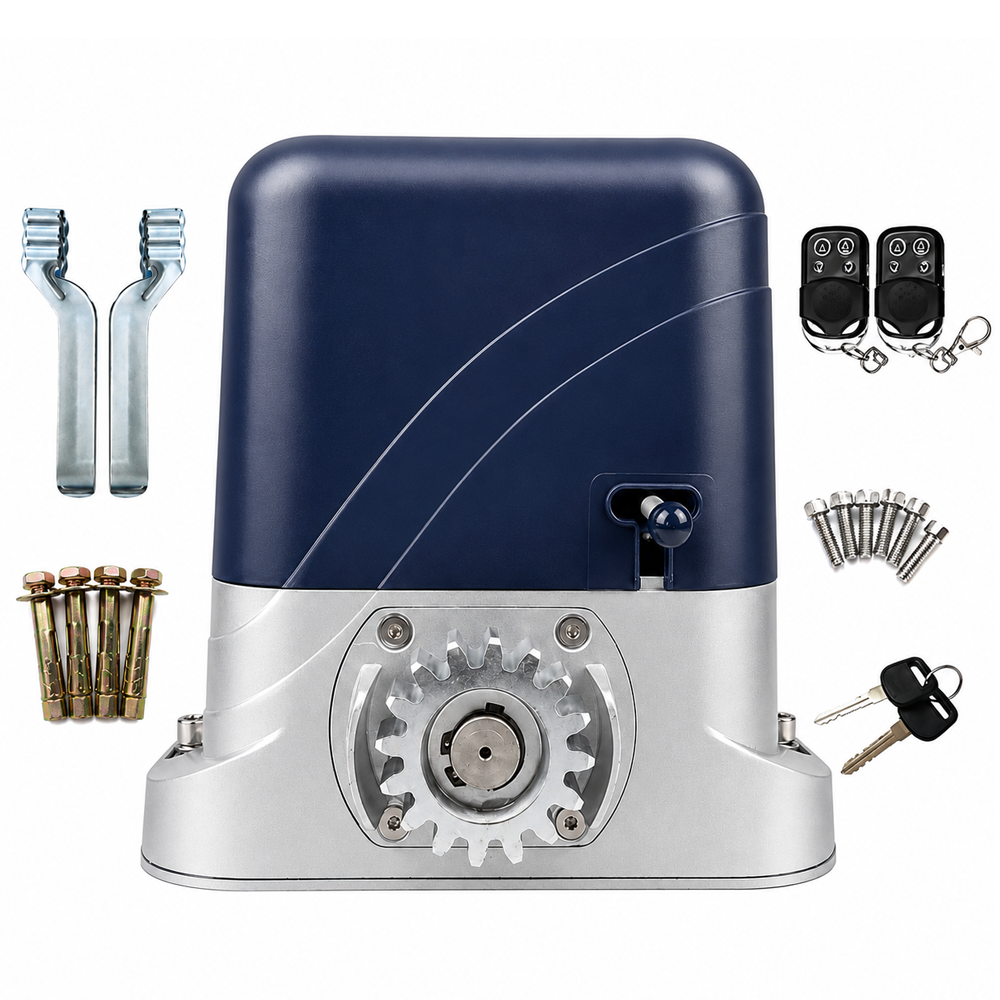

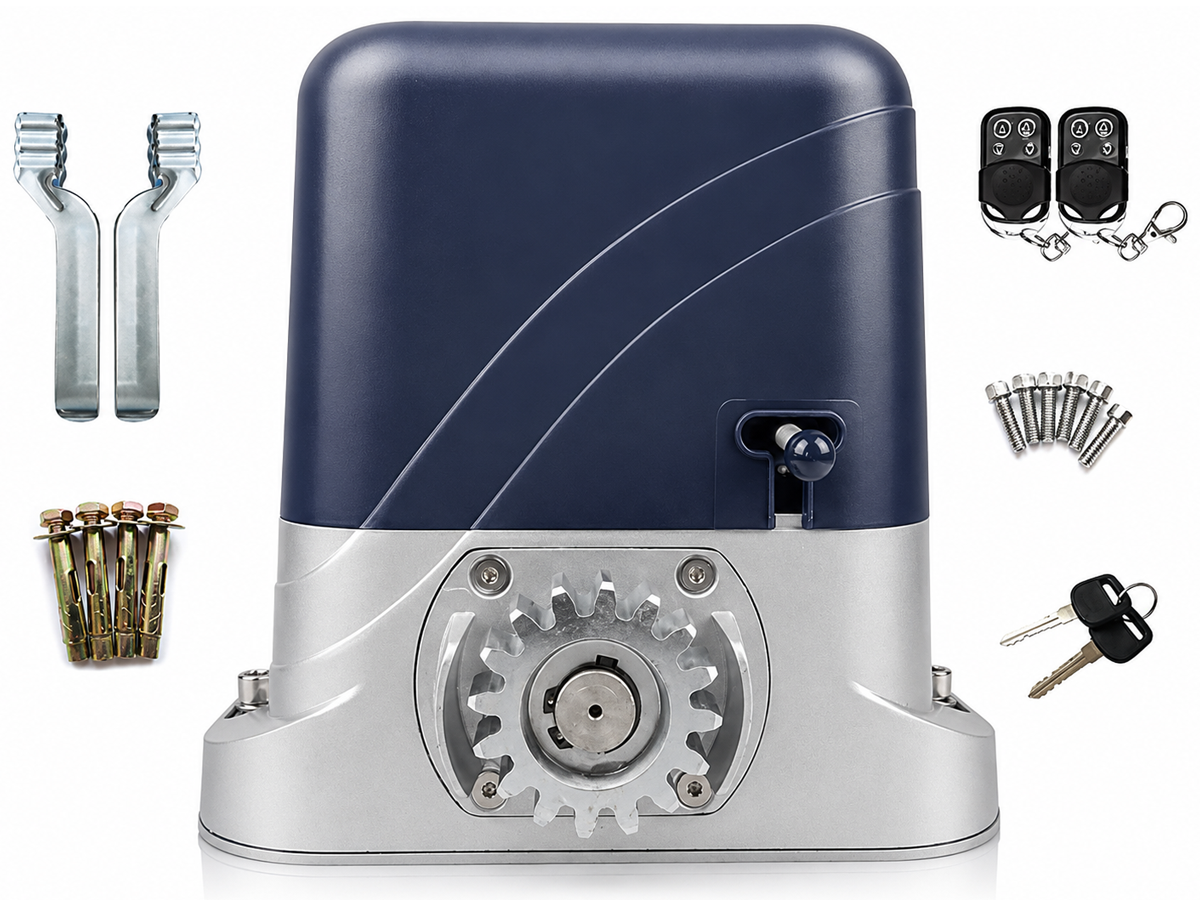

Package Contents

• 1 × Gate Operator
• 2 × Remote Controllers
• 1 × Control Board (Pre-installed)
• 2 × Manual Release Keys
• 1 × Installation Materials (Bolts, Nuts & Limit Switch Stoppers)
• 1 × User Manual
